Best selling Network antennas from MikroTik
On this page you’ll find a ranking of the best Network antennas from MikroTik. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. MikroTik GPS antenna w/SMA connector
ACGPSA MicroTik
The ACGPSA MicroTik is a standalone active GPS antenna that operates in the 1575.4 MHz range. The antenna measures 46.5 mm x 26.5 mm x 12.5 mm and has an IP67 protection rating. It includes an internal magnet and double-sided adhesive tape, allowing for easy attachment to various surfaces and resistance to different weather conditions.
LtAP connection possible
It features a long 5-meter cable with an SMA connector, which can be connected to the LtAP mini using an ACSMAUFL cable (available separately).
Key features:
- Operating band: 1575.4 MHz
- Cable length: 5 meters
- Dimensions: 46.5 x 26.5 x 12.5 mm
- Protection rating: IP67
- Connector type: SMA/m
Technical specifications:
- Antenna frequency: GPS 1575.42 MHz
- Connector type: SMA
- Depth: 46.5 mm
- Gain: 26 dB
- Height: 12.5 mm
- IP rating: IP67
- Operating temperature: -40 to 85 °C
- Power consumption: 8 W
- Product color: Black
- Quantity: 1
- Weight: 35 g
- Width: 46.5 mm.
2. MikroTik HGO-antenna-OUT Network Antenna 7.1 dBi Omnidirectional Antenna RP-SMA
The new mANT antennas from Sektor are the perfect companion for the BaseBox, NetBox, NetMetal, or any other wireless outdoor device. The mANT is a dual-polarization 19 dBi antenna with a 120-degree radiation angle and two RP-SMA connectors. It comes with metallic U-bolt mounts.
Network antenna
only 7 of 7 remaining
CHF6.40 was CHF7.10
MikroTik HGO-antenna-OUT Network Antenna 7.1 dBi Omnidirectional Antenna RP-SMA
5G
3. MikroTik Wireless Wire Dish pair 2 Gb/s aggregate link up to 1500m+
The MikroTik RBLHGG-60ad is a powerful wireless networking device designed for point-to-point and point-to-multipoint connections over long distances. This encapsulated outdoor unit operates in the 60 GHz frequency band, delivering exceptional data throughput with minimal interference. The device features integrated dual-polarized antennas with 34 dBi gain and supports transmission distances of up to 1500 meters under optimal conditions. With a compact and weatherproof enclosure measuring 260 mm x 260 mm x 80 mm and weighing 1200 g, this unit is designed for reliable outdoor use in various environmental conditions. The RBLHGG-60ad utilizes advanced modulation technology to achieve maximum data rates of 2000 Mbps, making it suitable for high-bandwidth applications such as enterprise networking, wireless backhaul connections, and campus network expansions. The operating temperature range extends from -40 °C to +60 °C, ensuring consistent performance in extreme weather conditions. The device supports multiple network protocols and offers automatic alignment support for simplified installation. Power is supplied via Power over Ethernet (PoE) with a 24 V passive input, eliminating the need for separate power cables at remote locations. The robust aluminum construction provides resistance to environmental influences while ensuring optimal heat management. This model represents the successor to previous 60 GHz solutions from MikroTik, integrating improved signal processing and enhanced interference suppression for more stable connections in dense radio environments.
4. MikroTik HGO-LTE-W
HGO-LTE-W - IoT Combo Antenna for LTE and LoRa Frequencies
You don't need to buy multiple antennas for your Internet of Things setups – just reach for the new HGO-LTE-W antenna, which covers an impressive frequency spectrum: 699 MHz – 3.8 GHz. That's right – you can use the same antenna for LTE, CAT-M/NB, and LoRa connectivity.
This antenna transmits the signal from your modem. For example, if you use the MikroTik KNOT LR8 kit, you can communicate with all your 868 MHz devices using this powerful 1.5 – 4 dBi antenna and then send the data to the cloud via LTE.
Product Code: HGO-LTE-W
Application Type: Indoor
Antenna Gain: 800-900 MHz - 1.5 dBi; 1800-1900 MHz - 1.5 dBi; 2.4 GHz - 3.6 dBi; 2.6 GHz - 4 dBi
Connector Type: SMA Connector
Operating Temperature: -40°C to +70°C.
5. MikroTik LoRA Antenna 868 Omni SMA 6.5 dBi omnidirectional
The upgrade of our antenna kit for LoRa features a 6.5 dBi omni antenna for 824-928 MHz, a 1 m long SMA cable, and a mechanical mount for quick and easy mast installation. Smaller size, increased durability, and additional IP66 water resistance.

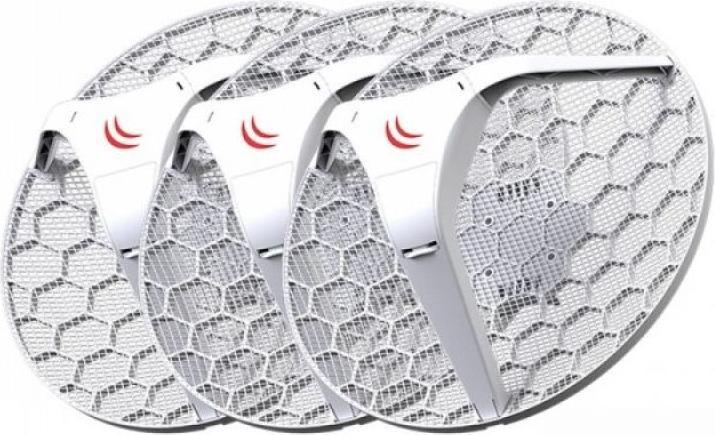

6. MikroTik LHG 5 3-pack, Dual chain
MikroTik RBLHG-5nD-3 - Light Head Grid with dual-chain 5 GHz 802.11an 24.5 dBi antenna, 3-pack
MikroTik LHG-5n 3-pack (dual-chain 5 GHz 802.11an 24.5 dBi integrated antenna, 600 MHz CPU, 64 MB RAM, 1x LAN, PoE, power supply, RouterOS L3, international version) - three antennas in one box.
The Light Head Grid (LHG) is a compact and lightweight radio device with an integrated 24.5 dBi grid antenna at a revolutionary price. It is perfect for point-to-point connections or for use as a CPE over longer distances. The grid design protects against wind, and the fact that the antenna element is built into the radio unit means no losses from cables.
The device is delivered disassembled for compact shipping but is very easy to assemble and includes a user-friendly grounding connection point. The package also includes a small adapter to tilt the antenna five degrees from its original position.
Please note: This is a 3-pack!
Product code: RBLHG-5nD-3
Nominal CPU frequency: 600 MHz
RAM size: 64 MB
Storage type: Flash
Storage size: 16 MB
10/100 Ethernet ports: 1
Wireless: Integrated 5 GHz 802.11a/n, dual-chain
Wi-Fi chip model: AR9344
Operating frequency: 5150 - 5875 MHz
Antenna gain: 24.5 +/- 0.5 dBi
Antenna beamwidth: 7°
PoE In: Yes
Supported input voltage: 11-30 V (passive PoE)
Wind resistance: 205 km/h
Wind load: 186 N (at) 205 km/h
Cross-polarization: 15 dBi
Port-to-port isolation: 20 dB
Front-to-back ratio: 25 dB
Operating temperature: -40°C to 70°C
Operating humidity: 5 to 95% non-condensing
Shock and vibration: ETSI300-019-1.4
ETSI specification: EN 302 326 DN2
Dimensions:
Device: 391 x 222 mm
Packaging: 450 x 450 x 145 mm
Weight: 3-pack: 1.8 kg
Including packaging: 1.98 kg
Max. power consumption: 6 W
Wi-Fi specifications
Rate / Tx (dBm) / Rx (dBm):
6 M Bit/s / 25 / -96
54 MBit/s / 20 / -80
MCS0 / 25 / -96
MCS7 / 19 / -75.
7. MikroTik WLAN antenna HGO-ANTENNA-OUT 7.1 dBi
The MikroTik WLAN antenna HGO-ANTENNA-OUT is a powerful, omnidirectional antenna designed for both indoor and outdoor use. With an antenna gain of 7.1 dBi, it provides enhanced signal strength and range for Wi-Fi connections. This antenna supports both the 2.4 GHz and 5 GHz frequency bands, making it versatile for various network environments. The RP-SMA connector allows for easy installation and integration into existing network systems. The HGO-ANTENNA-OUT is ideal for applications that require a reliable and stable Wi-Fi connection, whether in residential areas, offices, or outdoors.
- Omnidirectional radiation pattern for comprehensive signal coverage
- Dual-band support for 2.4 GHz and 5 GHz frequencies
- Robust construction for indoor and outdoor use
- Easy installation via RP-SMA connector.
8. MikroTik TOF-2400-8V-4 - LoRa/WLAN Omni Antenna Kit 8 dBi 2400-2500 MHz
TOF-2400-8V-4 - LoRa/WLAN Omni-Antenna Kit 8 dBi 2400-2500 MHz
Are you working with the wAP LR2 kit or similar setups? For additional network coverage (up to 3-4 km in line of sight), MikroTik recommends adding an external 8 dBi omnidirectional antenna - the TOF-2400-8V-4. This antenna can be used with any 2.4 GHz device as needed. It not only works with 2.4 GHz LoRa® connectivity but also supports regular 2.4 GHz WLAN. It comes with a 1 m long SMA cable and a mechanical mount for quick and easy mast installation when you need extra network coverage. Compact size and longer durability without compromising performance – this antenna gets the job done.
- Product code: TOF-2400-8V-4
- Frequency: 2400 - 2500 MHz
- Gain: 8 dBi
- Horizontal beamwidth: 360°
- Vertical beamwidth: 18°
- Nominal impedance: 50 Ω
- Lightning protection: DC ground
- Connector: SMA socket
- Weight: 0.6 kg
- Dimensions: Ø 25 x 550 mm
- Mast diameter: Ø 40 x 50 mm.
9. MikroTik mANT30 PA - 4-pack - 30 dBi - 4.7 - 5.875 GHz - 50 Ohm - 2.5° - Parabolic antenn
The MikroTik mANT30 PA is a powerful parabolic mobile antenna specifically designed for outdoor use. With a maximum antenna gain of 30 dBi and a frequency range of 4.7 to 5.875 GHz, this antenna provides excellent signal amplification and range. It is ideal for applications that require a stable and reliable connection, especially in environments with weak signals. The antenna features an RP-SMA connector, allowing for easy integration into existing networks. Its robust design and weatherproof characteristics make the mANT30 PA the optimal choice for demanding outdoor applications. The package includes four antennas, enabling flexible installation and adaptation to various requirements.
- Maximum antenna gain of 30 dBi for enhanced signal strength
- Frequency range of 4.7 to 5.875 GHz for versatile applications
- Robust design for outdoor use
- RP-SMA connector for easy network integration
- Optimized for 5G applications and high data transfer rates.
Network antenna
CHF689.–
MikroTik mANT30 PA - 4-pack - 30 dBi - 4.7 - 5.875 GHz - 50 Ohm - 2.5° - Parabolic antenn
5G
10. MikroTik MTAO-LTE-5D-SQ: Outdoor Antenna
The mANT LTE is an omnidirectional antenna specifically designed for LTE frequencies. It is an excellent companion for our LTE devices, such as the wAP LTE and LtAP series. The antenna has a gain of 5 dBi, which enhances your connection in areas with insufficient LTE network coverage and allows you to increase your connection speed.
