Best Alfa Network products in the Network antenna category
On this page you'll find a ranking of the best Alfa Network products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Alfa Network AOA-2410M - 2.42.5 GHz 10 dBi Mesh Omni Antenna
ALFA Network AOA-2410M - 2.4~2.5 GHz 10 dBi Mesh Omni Antenna
The AOA-2410M antennas are professionally designed and manufactured with the highest industrial quality at the lowest possible price. The AOA-2410M is designed for the 2.4 GHz ISM band, supports 2.4 to 2.5 GHz, and offers excellent performance in IEEE 802.11b/g Wi-Fi and Bluetooth applications. The connection of the AOA-2410M to the AP is made via the integrated N connector.
Applications:
- 2.4 - 2.5 GHz ISM band
- IEEE 802.11b, 802.11g, 802.11n wireless LAN
- Directional and multipoint applications
- Bluetooth
- Public wireless hotspot
- WiFi, RFID
- Wireless video systems
Features:
- Outstanding performance
- Lightweight
- All-weather operation
- DC short circuit protection against lightning strikes
- Mounted for vertical applications
- Model: AOA-2410M
- Frequency: 2.4-2.5 GHz
- VSWR: 1.5
- Gain: 10 dBi
- Polarization: Vertical
- Power handling: 50 Watts
- Impedance: 50 Ohms
- Beam width: H: 360°/ V: 12°
- Connector: N connector
- Operating temperature: -40°C ~ +80°C
- Dimensions: 770 x 17 mm
- Mounting: 20 ~ 23 mm (1.2 ~ 1.75 inches)
- Weight: 190 g.
2. Alfa Network AOA-4G-5M - 4G Omni Antenna 698-960 MH/1710-2700 MHz, 4/5 dbi, N(M)
The AOA-4G-5M is a powerful 4G omni antenna designed for use in mobile networks. It covers a wide frequency range from 698 to 960 MHz and from 1710 to 2700 MHz, making it versatile. With a gain of 4/5 dBi, this antenna provides improved signal strength and range, enhancing connection efficiency. The vertical polarization and 360° horizontal beamwidth allow for comprehensive coverage, while the DC-grounded lightning protection feature offers additional safety. The antenna is designed for a maximum input power of 100 W and can operate under extreme conditions, with operating temperatures ranging from -40 °C to 80 °C. Installation is straightforward on masts with a diameter of 30 to 50 mm, facilitating use in various environments.
- Frequency range: 698 - 960 MHz and 1710 - 2700 MHz
- Maximum input power of 100 W
- DC-grounded lightning protection for increased safety
- Operating temperature from -40 °C to 80 °C
- Easy installation on masts with a diameter of 30 - 50 mm.
Network antenna
CHF41.70
Alfa Network AOA-4G-5M - 4G Omni Antenna 698-960 MH/1710-2700 MHz, 4/5 dbi, N(M)
4G
3. Alfa Network AOA-4G-5F - 4G Omni Antenna 698-960 MH/1710-2700 MHz, 4/5 dbi, N (f)
The AOA-4G-5F is a powerful 4G omni antenna designed for the frequency range of 698 to 960 MHz and 1710 to 2700 MHz. With a gain of 4/5 dBi, this antenna provides excellent signal strength and quality. It is equipped with an N connector and is ideal for various applications in network technology. The antenna is intended for mast mounting and can be installed on masts with a diameter of 30 to 50 mm. Its robust construction allows for operation in a wide temperature range of -40 °C to 80 °C, making it particularly versatile and reliable. Additionally, the antenna is DC grounded to ensure effective lightning protection. With a horizontal beamwidth of 360° and a vertical beamwidth of 16°, the AOA-4G-5F offers comprehensive coverage, making it an excellent choice for enhancing mobile connectivity.
- Omni-directional pattern with 360° horizontal beamwidth
- Operating temperature range of -40 °C to 80 °C
- DC grounded for effective lightning protection
- Maximum input power of 100 W
- Robust construction for wind resistance up to 60 m/s.
Network antenna
CHF36.70
Alfa Network AOA-4G-5F - 4G Omni Antenna 698-960 MH/1710-2700 MHz, 4/5 dbi, N (f)
4G
4. Alfa Network AOA-4GP - omnidirectional 4G antenna
The AOA-4GP-4G is an omnidirectional 4G antenna from Alfa Network designed for outdoor applications. The antenna features an N connector and is intended for use with the Alfa Network Tube-U4G. The AOA-4GP-4G antenna has a gain that varies from 2 to 5 dBi. It is made from durable fiberglass and can be used in the frequency bands of 698 - 960 MHz and 1710 - 2170 MHz.
Specifications:
- Frequency range: 698-960 MHz, 1710-2700 MHz
- Gain: 2/5 dBi
- VSWR < 4.5
- Radiation: Omni-directional
- Horizontal radiation pattern: 360º
- Vertical radiation pattern: 16º
- Polarization: Vertical
- Maximum input power: 50 W
- Impedance: 50 Ohm
- Connector: N connector
- Antenna material: Plastic
- Dimensions: ⌀21.9 x 221 mm
- Weight: 55 g
- Operating temperature: -40 ºC - 70 ºC
- Rated wind speed: 40 m/s.
5. Alfa Network ARS-N19M - 2.4 GHz 9 dBi Dipole Antenna + Magnet Base
The ARS-N19M from Alfa Network is a powerful 2.4 GHz dipole antenna specifically designed for use in wireless networks. With a gain of 9 dBi, this antenna offers improved range and signal strength, making it ideal for applications in areas with weak reception. The integrated magnetic base allows for flexible mounting on various surfaces, while the 1.5-meter long cable ensures easy positioning of the antenna. The antenna is designed to operate in a temperature range of -10 °C to +55 °C and can be used in humid environments with up to 95% humidity. With its robust design and vertical polarization, the ARS-N19M is a reliable choice for anyone needing a stable and high-performance network connection.
- High gain of 9 dBi for improved range
- Magnetic base for flexible mounting options
- Robust in operating temperatures from -10 °C to +55 °C
- Suitable for high humidity environments (up to 95%).
6. Alfa Network ARS-N19 /PLASTIC BAG - ARS-N19 Plastic Bag - 2.4 GHz 9 dBi Dipole Antenna + Plastic Bag
Alfa Network ARS-N19 Plastic Bag - 2.4 GHz 9 dBi Dipole Antenna
The Alfa Network ARS-N19 Plastic Bag is a dipole antenna that operates in the 2.4 GHz frequency band with 9 dBi gain. It is delivered in a plastic bag.
- Model: ARS-N19 Plastic Bag
- Frequency: 2400 ~ 2500 MHz
- VSWR: 1.5:1 max.
- Gain: 9 dBi
- Polarization: Linear, vertical
- Impedance: 50 Ohm
- Connector: RP-SMA plug
- Operating temperature: -10°C ~ +55°C
- Humidity: 95% at 55°C
- Dimensions: 13 x 392 mm.
Network antenna
CHF20.–
Alfa Network ARS-N19 /PLASTIC BAG - ARS-N19 Plastic Bag - 2.4 GHz 9 dBi Dipole Antenna + Plastic Bag
7. Alfa Network AWAP02O-2E4N - IP67 Outdoor Enclosure, 2x Ethernet, 4x N female connectors
Alfa Network - AWAP02O-2E4N IP67 Outdoor Enclosure
The AWAP02O-2E4N is an IP67-rated outdoor enclosure featuring 2 Ethernet ports and 4 N connectors.
IP Rating: IP67
Material: Aluminum
Interface:
- 2 waterproof RJ45 kits (included)
- 4 N connector sockets (included)
Dimensions:
- Exterior: 269 x 239 x 68 mm
- Interior: 200 x 230 x 50 mm.
Network antenna
CHF117.–
Alfa Network AWAP02O-2E4N - IP67 Outdoor Enclosure, 2x Ethernet, 4x N female connectors
8. Alfa Network APA-L2410A - 2.4 GHz Panel Antenna 10 dBi

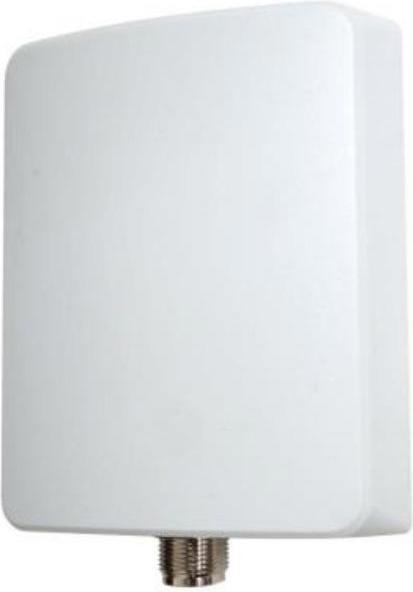

APA-L2410A - 2.4 GHz Panel Antenna 10 dBi
The APA-L2410A from ALFA is a lightweight, compact antenna with a high gain of 10 dBi.
Electrical
- Frequency: 2.4 - 2.5 GHz
- V.S.W.R.: <1.7:1
- Antenna Type: Directional Patch
- Gain: 10 dBi
- Polarization: Vertical, Horizontal
- Vertical Beamwidth: 55 degrees
- Horizontal Beamwidth: 80 degrees
- Connector: N Jack
Mechanical
- Dimensions: 94.8 x 116.8 x 30.8 mm
- Antenna Weight: 220 g
- Mounting Style: Direct mounting on the device
- Mounting Options: Wall mount, pole mount*
*Sold separately.
9. Alfa Network APA-L2458-08A-P - Dual-band 2.4 GHz + 5 GHz Panel Antenna, Wall and Pole Mount

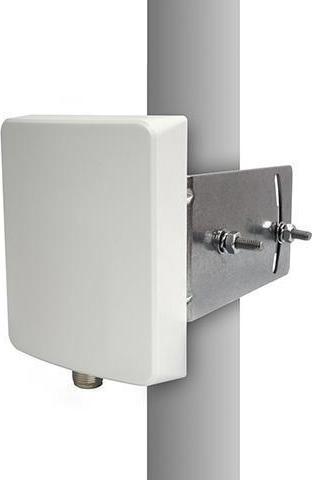

APA-L2458-08-A-P - Dualband 2.4 GHz + 5 GHz Panel Antenna, Wall and Pole Mounting
If you are looking for a flat dual-band directional antenna for outdoor use, you should consider this panel antenna with 8 dBi gain from ALFA Network. It features an N socket and comes with an N connector adapter for the ALFA Tube-UAC2.
This antenna can be mounted on almost any surface and connected to various Wi-Fi adapters.
This model works with the ALFA Tube-UAC2 (adapter included). You will need to seal the connection with waterproof tape, just like with any antenna connection.
Electrical
- Frequency: 2.4 - 2.5 / 5.1 - 5.9 GHz
- Antenna Type: Directional
- Gain: 8 dBi
- Polarization: Vertical / Horizontal
- Vertical Beam Width: 40 degrees
- Horizontal Beam Width: 90 degrees
- Connector: N socket
Mechanical
- Dimensions: 94.8 x 116.8 x 30.8 mm
- Antenna Weight: 220 g
- Mounting Type: Directly on the device
- Mounting Option: Wall / Pole Mounting.
Network antenna
CHF55.90
Alfa Network APA-L2458-08A-P - Dual-band 2.4 GHz + 5 GHz Panel Antenna, Wall and Pole Mount
10. Alfa Network APA-M04 - 2.4 GHz 7 dBi Indoor Panel Antenna
The APA-M04 is an indoor panel antenna from Alfa Network, specifically designed for the frequency range of 2.4 to 2.5 GHz. With a gain of 7 dBi, this antenna provides enhanced signal strength and range, making it ideal for indoor applications. The antenna is equipped with an RP-SMA connector, allowing for easy integration into existing network systems. It is designed to operate within a temperature range of -10°C to +55°C and can function at humidity levels of up to 95% at 25°C. These features make the APA-M04 a reliable choice for improving network connectivity in various environments.
- Frequency range of 2.4 to 2.5 GHz
- Antenna gain of 7 dBi for improved signal strength
- RP-SMA connector for easy integration
- Operating temperature of -10°C to +55°C.
