Best selling Network accessories from Niedax
On this page you’ll find a ranking of the best Network accessories from Niedax. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Niedax HU 5050/1000 E3
Niedax hanging rod U-profile HU 5050/1000 E3
Manufacturer: Niedax
Description: Hanging rod U-profile 50x50x1005mm
Type: HU 5050/1000 E3
Length: 1005 mm
Profile Width: 50 mm
Profile Height: 50 mm
Design: U-profile
Load Capacity: 4 kN
Suitable for Function Maintenance: no
Material: stainless steel
Stainless Steel, Pickled: yes
Material Grade: Stainless Steel (V2A)
Surface Protection: other
Weight: 2.63 kg
Further details: Hanging rod, 3-sided continuously perforated U-profile with welded head plate, System HU 5050, for brackets for one-sided, two-sided, and three-sided installation. To prevent deformation of the hanging rod profile during the installation of brackets, the hanging rod spacer profile HDS 50.50 E3 with hexagon screw must be considered for static reasons. When attaching the bracket to the hanging rod profile on one side, the closed side of the bracket should preferably be aligned with the profile web of the hanging rod. For static reasons and to allow for a smooth fitting of the protective cap, the bracket must be mounted 50 mm (from the bottom edge of the bracket to the end of the hanging rod) above the end of the hanging rod.
For brackets: KTAM... E3, KTA... E3
Dimensions (approx. measurements):
Head plate L x W x t: 140 x 80 x 5 mm
Mounting hole: 13 x 20 mm
Center distance: 100 mm
U-profile: 50 x 50 x 50 mm
Material thickness t: 2.5 mm
Three-sided profile perforation, single row: 12 x 30 mm
Center distance: 50 mm
Total length L: 1005 mm
Material: Stainless steel, Material No. 1.4301, 1.4303.

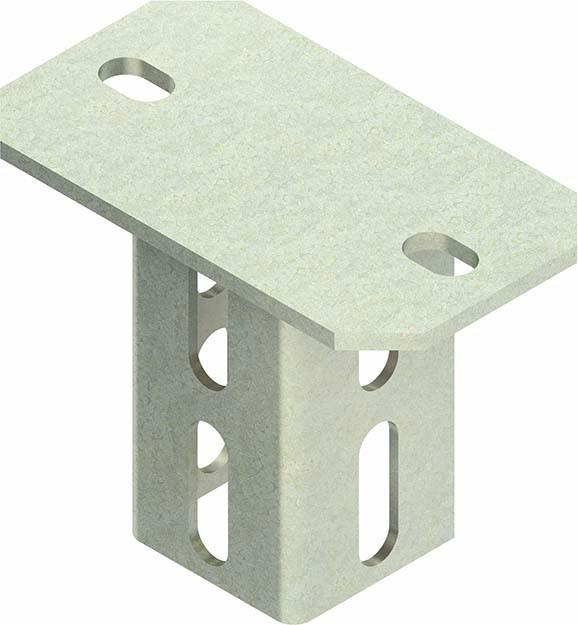

2. Niedax KU 5050 C1KG
The Niedax KU 5050 C1KG screw head plate is a high-quality mounting plate specifically designed for installation on horizontal ceilings. It features a welded, three-sided continuously perforated U-profile that allows for secure and stable fastening. The plate is made of steel and provides effective corrosion protection through its hot-dip galvanized and epoxy-polyester resin-coated surface. The included stainless steel fastening accessories (material no. 1.4571, AISI 316Ti) ensure a durable and reliable application. The screw head plate is suitable for use with U-profiles and offers easy installation that meets the demands of professional applications.
- Three-sided continuously perforated U-profile for versatile mounting options
- High-quality stainless steel fasteners for added stability
- Hot-dip galvanized and coated surface for corrosion protection
- Suitable for mounting on horizontal ceilings.
3. Niedax HU 5050/900 E3 Hanging Handle U-Profile 50x50x905mm
Niedax Hanging Pole U-Profile HU 5050/900 E3
Manufacturer: Niedax
Description: Hanging pole U-profile 50x50x905mm
Type: HU 5050/900 E3
Length: 905 mm
Profile width: 50 mm
Profile height: 50 mm
Design: U-profile
Load capacity: 4 kN
Suitable for functional maintenance: no
Material: stainless steel
Stainless steel, pickled: yes
Material grade: stainless steel (V2A)
Surface protection: other
Weight: 2.4077 kg
Additional details:
Hanging pole, 3-sided continuously perforated U-profile with welded head plate, System HU 5050, for brackets for one-sided, two-sided, and three-sided installation. To prevent deformation of the hanging pole profile during the installation of brackets, the hanging pole spacer profile HDS 50.50 E3 with hexagon screw must be considered for static reasons. When attaching the bracket to the hanging pole profile on one side, the closed side of the bracket should preferably be aligned with the profile web of the hanging pole. For static reasons and to allow for a smooth fit of the protective cap, the bracket must be mounted 50 mm (bracket bottom edge to hanging pole end) above the end of the hanging pole.
For brackets: KTAM... E3, KTA... E3
Dimensions (approximate measurements):
Head plate L x W x t: 140 x 80 x 5 mm
Mounting hole: 13 x 20 mm
Center distance: 100 mm
U-profile: 50 x 50 x 50 mm
Material thickness t: 2.5 mm
Three-sided profile perforation, single row: 12 x 30 mm
Center distance: 50 mm
Total length L: 905 mm
Material: stainless steel, material no. 1.4301, 1.4303.
4. Niedax Connector RVC 60 RL Connector for cable support system 4013339870523
Joint connector, screwless, electrically and mechanically interlocking at the joint, longitudinally aligned connection of the cable trays with the base groove, easy installation by clipping in from both sides into the side rail and base contour. For cable trays: RLC 60, RLUC 60. For industrial trays: RLCI 60. Requirement: 2 pieces per joint. Dimensions (approx. dimensions) H x L: 60 x 250 mm. Material: Steel, strip galvanized according to DIN EN 10346.
Network accessories
Quantity discount
CHF7.85 per piece for 4 units
Niedax Connector RVC 60 RL Connector for cable support system 4013339870523
