Best LevelOne products in the Network accessories category
On this page you'll find a ranking of the best LevelOne products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

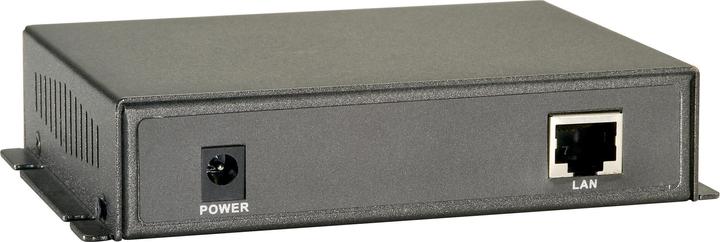

1. LevelOne Pos-1002
The LevelOne POS-1002 PoE Splitter splits a networked PoE signal into a separate power and Fast Ethernet data source. This device allows administrators to run PoE cables with Fast Ethernet speed over long distances and to separate the PoE signal into distinct data and power sources to operate non-PoE devices.

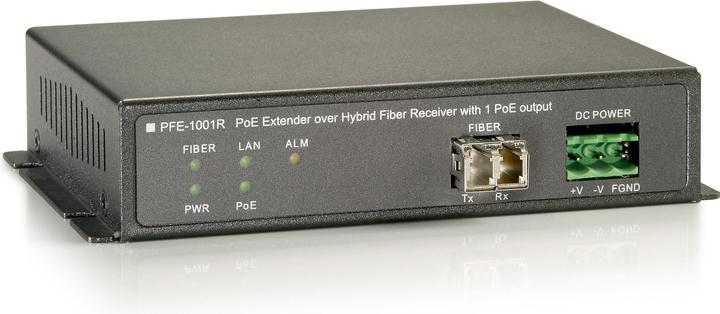

2. LevelOne PFE-1001R -, 1 x PoE RJ-45
By using hybrid fiber and copper cables, the LevelOne PFE series can deliver power and data over a distance of 2 km to a receiver that provides a powerful PoE output for IP surveillance applications. The robust outdoor series (PFE-1011/1014) offers the same performance in a sturdy, waterproof housing rated IP66 for harsh environmental conditions and a temperature range of -40°C to 60°C.
- Extends data and power up to 2 km over a single hybrid fiber cable
- Enables PoE devices at remote locations
- Supports high-power devices (up to 60 W at 450 m connection)
- Flexible installation option - choose 1 or 4 PoE output receivers
- The outdoor housing protects operation in a wide temperature range (PFE-1011R/1014R)
- Weatherproof models for outdoor use are protected against water and dust (PFE-1011R/1014R).
3. LevelOne POR-0101 PoE Repeater
Level One POR-0101 product features: cable transmission and reception for 10/100 Mbps, power over Ethernet (802.3af/at PoE) to remote devices, extended PoE connection for an additional 100 meters, multiple PoE amplifiers can be used through daisy-chain for range extension, and simple plug-and-play installation with no additional power supply required.
4. LevelOne IEC-2000 10Base-T
The LevelOne IEC-2000 is a versatile media converter designed for converting RJ-45 to SFP (mini-GBIC). It supports various Ethernet standards, including 10Base-T, 100Base-TX, and Gigabit Ethernet, enabling data transmission rates of up to 1 Gbps. This converter is particularly suitable for industrial applications as it complies with NEMA TS1/TS2 standards for traffic control equipment and meets the IEC61000-6-2 standard for industrial environments. The IEC-2000 features DIN rail mounting, making installation in various settings easier. With an SFP slot, users can choose from a range of optical Gigabit modules to enhance network flexibility and adaptability. The DIP switch configuration allows for easy customization to specific network needs, including link fault pass-through and speed and duplex mode settings.
- Supports a variety of Ethernet standards, including 10Base-T and Gigabit Ethernet
- DIP switch configuration for custom network settings
- SFP slot for the use of different optical Gigabit modules
- Complies with NEMA TS1/TS2 and IEC61000-6-2 for industrial applications
- DIN rail mounting for easy installation in various environments.
5. LevelOne 4U, 100 -, 50/60Hz
8-bay media converter chassis
The POC-4001 can accommodate mixed VDS-0200/0201 and VDS-0202 and work with remote VDS-0200/0201 as a central VDSL2 8-port multiplexer.
VDS-0200/0201 are VDSL LAN extenders providing broadband transmission up to 100/60 Mbps for downstream/upstream over a single pair copper line or coaxial cable (VDS-0202) for point-to-point Ethernet connectivity. With a 100/60 Mbps data rate, VDS-0200/0201 supports transmission distances up to 300 meters and 30/10 Mbps for 1 km long-range connection. Users may also select a fixed data rate or a fixed SNR margin for different copper line ranges.
With plug-and-play features and quick installation time, a pair of VDS-0200/0201 offers a cost-effective solution for bandwidth-hungry applications such as video streaming and FTTB over a single twisted pair telephone line or coaxial cable. The POC-4001 allows the VDSL system to grow step by step. This means the system can be plugged in subject to instant demand, and there is no need to pay for the additional hardware in advance. It is a flexible and economical method of investment.
- Accommodates up to 8 VDS-0200/0201/0202 products
- Standard compact 19" 4U chassis mountable for space-saving convenient installation
- Plug-and-play features for easy system expansions
- Two DC electric fans for thermal ventilation
- 250V 2A fuse protection.

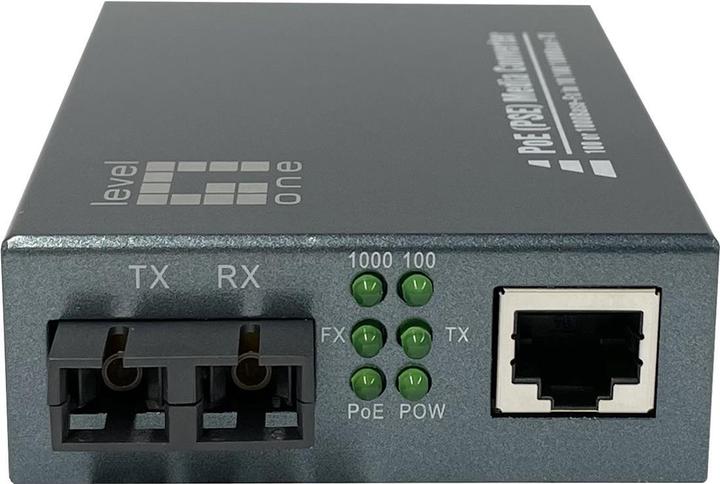

6. LevelOne Converter GVT-2014 10/100/1000T>RJ45 to PSE
The GVT-2014 SMF SC media converter can convert network signals between copper and fiber-based networks. The converter is equipped with a 10/100/1000Base-T RJ-45 port, supports full-duplex and half-duplex switch connectivity, and features automatic detection for 10Base-T, 100Base-TX, and 1000Base-T. When used in multimode with fiber cabling, the network range can be extended up to 20 km. The device has built-in dip switches for easy converter configuration and is based on intelligent LFP (Link Fault Pass-through), allowing the converter to monitor both fiber and copper connections for signal loss, as well as offering cut-through and smart pass-through modes.
The LevelOne GVT-2014 is a single-port, end-span IEEE 802.3at High Power over Ethernet media converter. It is specifically designed to meet the growing power demands of network devices such as PTZ (Pan, Tilt, and Zoom) network cameras, PTZ speed domes, color touchscreen VoIP phones, multi-channel wireless LAN access points, and other network devices that require higher power to operate normally. Equipped with an SC port for Gigabit SC transceivers, it is compatible with multimode fibers. The GVT-2014, with its high Power over Ethernet capability, is the ideal solution for delivering data and power directly to network devices via the RJ45 interface, eliminating the need for additional outlets and electrical cables.
7. LevelOne POR-1220 Repeater
LevelOne POR-1220 Outdoor Gigabit Plus PoE Repeater
For system integrators seeking a professional solution to extend their Gigabit PoE (802.3af) outdoor network, the POR-1220 is the ideal accessory to enhance network performance. Standard cable lengths reach only 100 meters, but with the POR-1220, installers can extend PoE network performance up to 200 meters. By daisy-chaining multiple PoE repeaters, the range can even be tripled. (The maximum distance depends on the required wattage.)
Features:
- Powerful PoE: 802.3af / 802.3at
- Easy deployment and installation
- Weatherproof IP-65 housing
- Extended Gigabit PoE connection for an additional 100 meters
- Multiple PoE repeaters can be connected in series to extend range
- Simple plug-and-play installation
- No additional power supply required
- 2 integrated outputs for 1 PoE and 1 non-PoE device (Gigabit transmission speed: 10 / 100 / 1000 Mbps)
- Maximum output voltage: 50 watts
- Standards:
- IEEE 802.3 10Base-T, Ethernet
- IEEE 802.3u 100Base-TX, Fast Ethernet
- IEEE 802.3ab 1000Base-T, Gigabit Ethernet
- IEEE 802.3x Ethernet Flow Control
- Dimensions: 200 x 110 x 240 mm
- Weight: 700 g.

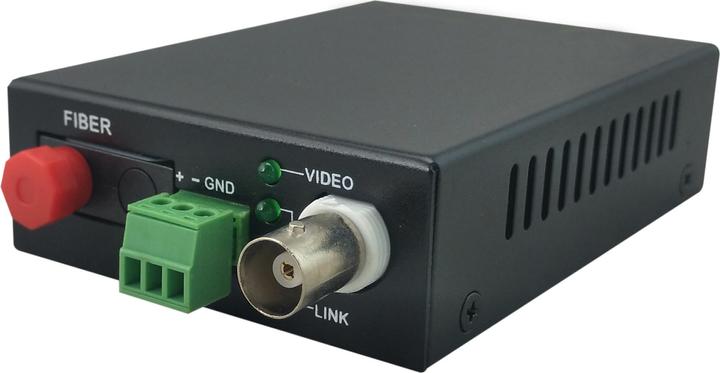

8. LevelOne BNC, FC, 1310nm/1470-1610 nm
The LevelOne AVF video over fiber converter series is designed to transmit composite video signals over long distances using fiber optics. On the sending side, video signals are digitized and converted into optical signals, which are then transmitted to the receiver via the fiber connection. The receiver converts the optical signal back into analog and displays the transmitted images on a monitor. LevelOne AVF solutions provide analog surveillance and signage systems with high-quality images and remote transmission over fiber, enhancing the capabilities of traditional deployments or legacy systems. An ideal solution for analog surveillance and video wall system applications.
9. LevelOne PFE-1101T PoE Extender over Hybrid Fiber, Transmitter, 120W
Using hybrid fiber and copper cable, the LevelOne PFE range can deliver integrated power and data over a distance of 6,800 ft (2 km) to a receiver that provides high-power PoE output for IP surveillance applications. A tough outdoor range (PFE-1011/1014) offers the same performance within a durable IP66-rated waterproof housing for harsh environmental conditions and a temperature range of -40°C to 60°C.
- Extend data and power up to 2 km via a single hybrid fiber cable
- Enable PoE devices to distant remote locations
- Support high power consumption devices (up to 60W at 450m link)
- Flexible installation option - 1 or 4 PoE output receivers selectable
- Outdoor casing protects operation under a wide temperature range (PFE-1011R/1014R)
- Outdoor weatherproof models are sustainable from water and dust (PFE-1011R/1014R).
Network accessories
CHF305.–
LevelOne PFE-1101T PoE Extender over Hybrid Fiber, Transmitter, 120W
Extender
10. LevelOne POR-0120: PoE Extender
LevelOne POR-0120, Gigabit PoE Repeater, Cascadable
The LevelOne POR-0120 is a Gigabit PoE repeater. This allows you to extend the typical 100 m limit for PoE networks by an additional 100 m. Multiple POR-0120 units can be connected in series. The POR-0120 is powered by a Gigabit PoE switch (or Gigabit PoE injector), so no external power supply is needed for the operation of the repeater. A simple application example is the installation of a PoE device 200 meters away from the Gigabit PoE switch. The Gigabit PoE switch transmits power and data over the first 100 m. The POR-0120 processes the power and data signals and transmits them an additional 100 m to the PoE device.
Features:
- High-Power Midspan PoE compliant for simplified deployment and installation
- 802.3af / High-Power PoE to remote device
- Extended Gigabit PoE connection for an additional 100 meters
- 2 integrated outputs for 1 PoE and 1 Non-PoE device
- Easy plug-and-play installation
- No additional power supply required
- Multiple PoE extenders can be used in a daisy chain for extended range
- Standards:
- IEEE 802.3x, auto-detection for 10/100/1000 BaseT and full/half duplex
- Automatic MDI/MDIX function
- Color: gray
- Dimensions: 90 x 120 x 80 mm
- Weight: 400 g.
