Best selling Motion sensors from Zumtobel
On this page you’ll find a ranking of the best Motion sensors from Zumtobel. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Zumtobel Group Multisensor ED-SENS
Multisensor with the function of a presence sensor and reception device. Up to individually configurable remote control groups can be integrated depending on the system. Surface mounting in Euro standard box 1 gang, or the surface mounting multisensor is plugged into the enclosed surface mounting ring, or it can be mounted in suspended ceilings or in the wall. The flush mounting multisensor is snapped into the enclosed flush mounting ring. Output side: DALI two-wire control line, polarity reversible. Use of standard installation material. Supply via DALI line. Status LED red to indicate operating status, status LED green to indicate radio reception quality. Staircase function with follow-up time of 1-127 minutes. Housing material: plastic, halogen-free, color white RAL 9003, lens Poly IR 2, protection class IP 40, weight: 0.3 kg.
2. Zumtobel Passive Infrared Motion Light Sensor 22170200
Passive infrared motion detector for sensor heights of up to 4 m. Integrated light sensor for constant light control. Designed for use with LITECOM or LITENET systems (motion detector function only). Suitable for typical office areas or entrance and stairwell areas. IP20, SC2, size: 58 x 65.4 mm (diameter x height, in mm), weight: 0.04 kg.

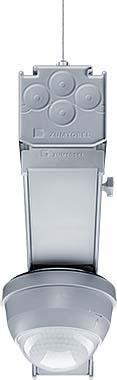

3. Zumtobel PST DIMLIT#22171646 Motion sensor
Zumtobel Group motion sensor PST DIMLIT #22171646
Manufacturer: Zumtobel Group
Designation: Motion sensor
Type: PST DIMLIT #22171646
Type of accessory/spare part: Motion detector
Colour: Silver
Further details: Slave sensor for PST DIMLITE SINGLE TEC-GP, silver for extending the detection range. The PST DIMLITE SLAVE TEC-GP can only be used in conjunction with a PST DIMLITE MASTER TEC-GP IP54. TECTON module with IP54 protection, toolless mechanical and electrical installation on the trunking rail via two lateral levers. Corrosion-protected trunking rail adapter made of profiled, hot-dip galvanized sheet steel with zinc-magnesium coating and polyester resin paint. Silver housing colour. Adjustment of the delay time (15 sec. to 30 min.) on the sensor as well as change of the brightness threshold only possible by means of IR remote control. Delivery status of the sensor: 1000 lux brightness threshold and 3 min delay time. Dimensions: 498 x 98 x 165 mm, weight: 0.68 kg.
4. Zumtobel Modul Tecton
The Tecton module from Zumtobel is an advanced DALI-2 multi-sensor specifically designed for motion detection and ambient light measurement in various applications such as industry, education, and office environments. Equipped with state-of-the-art PIR technology, this sensor enables precise motion detection and light level measurement in the range of 5 to 2000 lx. The Tecton module is compatible with all DALI-2 application controllers that support the relevant DALI standards, offering flexible integration into existing systems. With a detection radius of up to 10 m and optimal functionality at heights of up to 4 m, this sensor is ideal for a wide range of environments. The use of high-quality materials such as polyethylene for the lens and polycarbonate for the housing ensures durability and reliability.
- Compatible with DALI-2 application controllers that support DALI Part 303 and 304
- Measures light levels from 5 to 2000 lx with a minimum value of 0.5 lx
- Detection radius of 10 m at a height of 3 m
- Temperature range from -20°C to +50°C
- Protection class IP20 for indoor use.
5. Zumtobel Motion sensor 22169248
The Zumtobel movement sensor 22169248 is a passive infrared motion detector designed for a variety of applications. With an impressive range of up to 16 meters, this sensor is ideal for monitoring large areas. It can be installed at heights of up to 16 meters, providing flexibility in mounting. The sensor is compatible with the Tridonic corridorFUNCTION, allowing for efficient use in conjunction with other operating devices. With an IP20 protection rating, the sensor is suitable for indoor use and protects against dust and contact. Its compact dimensions and lightweight design facilitate installation and integration into existing systems.
- Compatible with Tridonic corridorFUNCTION and similar systems
- Ideal for high installation heights of up to 16 m
- IP20 protection rating for indoor use
- Lightweight design at only 0.8 kg.
6. Zumtobel TECTON wireless sensor
The TECTON wireless sensor from Zumtobel is an advanced motion detector equipped with an integrated basicDIM Wireless (Bluetooth(C) CASAMBI) radio module. This module enables precise motion detection as well as ambient light measurement using PIR technology. The sensor is optimized for industrial and logistical applications and has an IP54 protection rating, making it resistant to dust and splashes. Installation is tool-free on the mounting rail, significantly simplifying the assembly process. The TECTON sensor can measure light levels between 5 and 2000 lx, with the minimum value adjustable down to 0.5 lx. With a detection radius of up to 4.5 m at a mounting height of 8 m, it is ideal for large spaces. The sensor can be controlled locally without the need for a central control unit, enhancing flexibility and efficiency in use.
- Integrated basicDIM Wireless (Bluetooth(C) CASAMBI) radio module for easy control
- Tool-free installation on the mounting rail via side levers
- Optimized for industrial and logistical applications
- Light measurement from 5 to 2000 lx, minimally reducible to 0.5 lx
- Detection radius of up to 4.5 m at a mounting height of 8 m.
7. Zumtobel PST TEC-GP WH IP54 motion sensor
The PST TEC-GP WH IP54 motion sensor from Zumtobel is a passive infrared motion detector designed for a variety of applications. With an impressive range of up to 16 meters, this sensor is ideal for large rooms and areas. The device features a simple white housing and offers an IP54 protection rating, making it resistant to dust and splashes. Installation is tool-free and can be easily and quickly carried out on the mounting rail thanks to the side lever. The corrosion-protected mounting rail adapter made of hot-dip galvanized steel ensures long-lasting use. The sensor is compatible with the Tridonic corridorFUNCTION and similar functionalities from other manufacturers, highlighting its versatility. With a low energy consumption of only 0.9 watts, the PST TEC-GP WH IP54 is not only efficient but also environmentally friendly.
- Tool-free installation on the mounting rail
- Corrosion-protected mounting rail adapter made of hot-dip galvanized steel
- Compatible with Tridonic corridorFUNCTION and similar systems
- Low energy consumption of only 0.9 watts.
8. Zumtobel ZUMT motion detector
Passive infrared motion detector for sensor heights of 2 to 4 m. Housing shape: recessed installation. Integrated light sensor for constant light control. Suitable for use with DIMLITE PRO or LITECOM DALI-2. Designed for typical office or entrance and stairwell areas with low ceiling heights. Accessories for ceiling mounting and height increase up to IP66 available optionally. Protection class: IP20. Size: 30 x 30 x 28.5 (L x W x H, in mm). Weight: approximately 13 g.

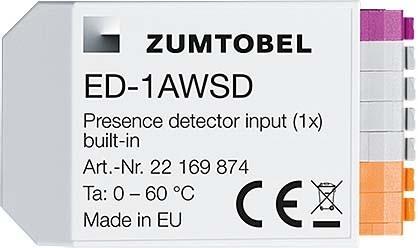

9. Zumtobel Presence sensor installation 22169874
Sensor input device for local installation. For connecting a standard presence or motion sensor with a potential-free switching contact. Integrated buzzer for localization. For complete integration of standard sensors and transmission of the sensor signal to the higher-level lighting management system LITECOM or LUXMATE LITENET with netlink CCD. Powered via the DALI line. Protection class: IP20; Size: 47.7 x 28.2 x 14.6 mm; Weight: approx. 12 g.

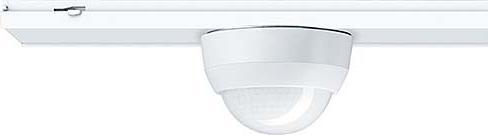

10. Zumtobel Motion sensor 22169250
The movement sensor 22169250 from Zumtobel is a highly advanced passive infrared motion detector designed for a wide range of applications. With an impressive range of up to 16 meters, this sensor is ideal for large spaces and high ceilings. It features an integrated DIMLITE single, allowing control of up to 25 DALI/DSI electronic ballasts. The sensor provides precise presence detection, ensuring immediate light activation upon movement. In the absence of movement, the light gently dims to 10% or turns off completely, enabling energy-efficient use. The adjustment of the delay time and brightness threshold is conveniently done via an IR remote control, ensuring flexible handling. The sensor is easy to install and requires no additional addressing or commissioning, making it a practical solution for modern lighting systems.
- Integrated DIMLITE single for controlling up to 25 DALI/DSI electronic ballasts
- Adjustable delay time from 15 seconds to 30 minutes
- Gentle fading to 10% light level or complete shut-off in absence
- Detection range can be adjusted using breakable cover louvres
- Easy adjustment of brightness threshold via IR remote control.
