Product details
Output voltage = 5V dc
Output current = 3A
Rated power = 15W
Input voltage = 120 → 370 V dc, 85 → 264 V ac
Mounting type = Printed circuit board mounting
Package type = Encapsulated
Length = 65mm
Width = 33.3mm
Depth = 24.4mm
Hum and noise voltage = 50mV ss
Load regulation = Maximum of 1%
Mains regulation = ±0.5%
Temperature min. = -20°C
Temperature max. = +70°C
Operating time = >400kh

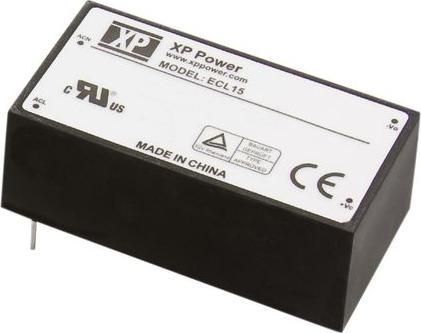

XP Power - ECL Series 5-30 W AC/DC Power Supplies. XP Power's ECL series offers an excellent range of 5 W to 30 W AC/DC power supplies with single, dual and triple outputs. These ultra-compact power supplies are available in open board, open frame chassis mount, potted board and potted chassis mount versions. The series features less than 0.3 W input power with no load, peak load capability and high efficiency up to 84%. 5 W to 30 W AC/DC power supplies Single, dual and triple output Molded board and chassis mount versions Open frame and chassis mount versions Ultra compact design ;0.3 W input power with no load Peak load capability High efficiency up to 84 % -20 °C to +70 °C operating temperature.
