XP Power DC/DC-Wandler 9... 18V 12V 1.67A 20W

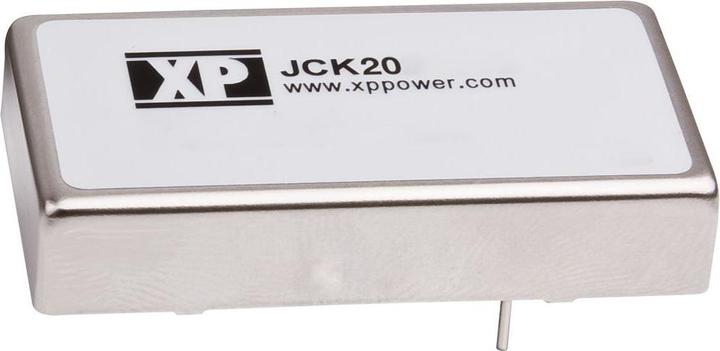

The DC/DC converter from XP Power is a powerful voltage converter that supports an input voltage of 9 to 18 V and delivers a stable output voltage of 12 V with a maximum output current of 1.67 A. With a rated power of 20 W, this device is ideal for applications that require a reliable power supply. The converter features a high efficiency of 90%, resulting in reduced heat generation and optimized energy consumption. Additionally, it offers an adjustable output voltage that can be set between 10.8 V and 13.2 V to meet the specific requirements of various applications. Its compact design, with dimensions of 50.8 mm x 25.4 mm x 10.2 mm, allows for easy integration into different systems. Furthermore, the converter is equipped with multiple protection features, including overcurrent protection, overvoltage protection, and short circuit protection, enhancing safety and reliability during operation.

• High efficiency of 90% for optimized energy consumption
• Adjustable output voltage between 10.8 V and 13.2 V
• Long lifespan with an MTBF of 680,000 hours
• Integrated protection features: overcurrent, overvoltage, and short circuit protection
• Compact design for easy integration into various systems.
