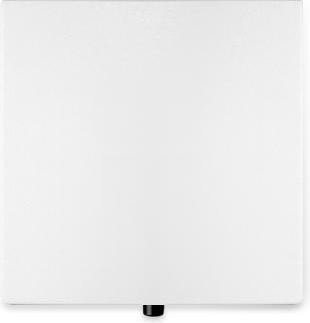

WLP-5550-16 - Wireless LAN Panel Antenna 5.5 GHz, 16 dBi for 802.11a/g

Wireless LAN Panel Antenna 5.5 GHz, 16 dBi for 802.11a/g with N-Connector

The 16 dBi 5.5 GHz panel antenna is a powerful 802.11a Wi-Fi panel antenna designed for the 5.5 GHz ISM band. It is a high-quality "cell site" antenna, particularly suitable for service providers operating in the 5.5 GHz ISM band.

This antenna is especially ideal for point-to-point connections, allowing different LANs to be interconnected between buildings using two antennas.

The beam width is 16 degrees in both the horizontal and vertical planes. It is primarily designed for outdoor use. The connector type is an N-connector.

The package includes mounting materials for the antenna.

Technical Specifications:

• Frequency: 5425 - 5575 MHz
• Gain: 16 dBi
• Polarization: Vertical
• Beam width in degrees:
• Horizontal: 16°
• Vertical: 16°
• VSWR: ≤ 1.5:1
• Impedance: 50 Ohm
• Dimensions: L 263 x W 193 x H 42 mm
• Weight: 1050 g
• Connector: N-connector

Applications:

• 5.5 GHz ISM band
• Wireless bridges
• Backhaul applications
• IEEE 802.11a
• Wi-Fi systems
• Point-to-point systems
• Point-to-multipoint systems
• Long-range directional applications

Delivery includes:

• 1x 5.5 GHz Outdoor Panel Antenna 16 dBi
• Mounting materials.
