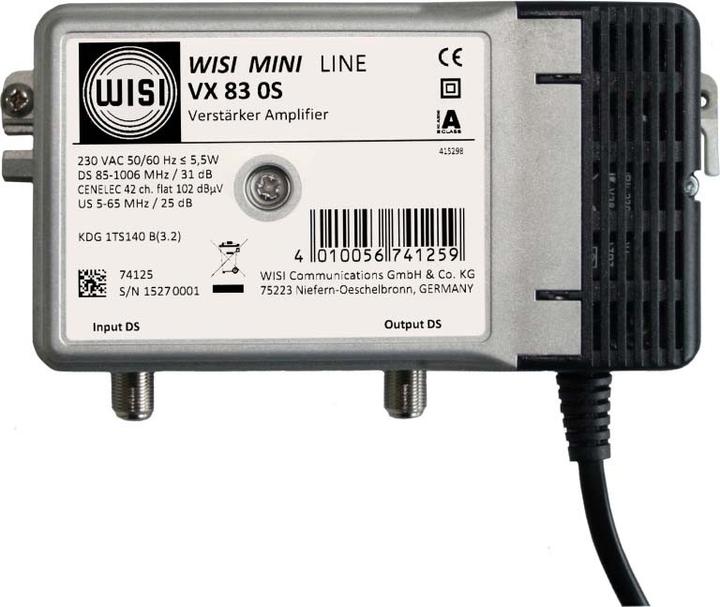

WISI VX 83 0S F-Type

Locally fed 1 GHz house connection amplifier according to KDG 1TS140 in mini line housing with hinged cover. The setting elements are designed as variable attenuators (rotary controllers). Functionally identical to the PAD versions VX 8x 0P.

Main features:

• Frequency range (forward path): 85 - 1006 MHz
• Frequency range (return path): 5 - 65 MHz
• Gain (forward path): 31 dB
• Gain (return path): 25 dB
• Noise figure: 6.5 dB
• Product color: Black, Gray
• International protection class (IP code): IP20
• Gain: 25 dB
• Rack mounting: No
• Certification: EN50083-2

Connectors and interfaces:

• Connector: F-Type
• Power source: AC input voltage 230 V

Operating conditions:

• Temperature range in operation: 20 - 55 °C
• Temperature range during storage: 25 - 75 °C

Weight and dimensions:

• Width: 163 mm
• Depth: 50 mm
• Height: 90 mm

Package contents:

• Quantity: 1

Packaging data:

• Packaging width: 166 mm
• Packaging depth: 143 mm
• Packaging height: 50 mm
• Package weight: 726 g.
