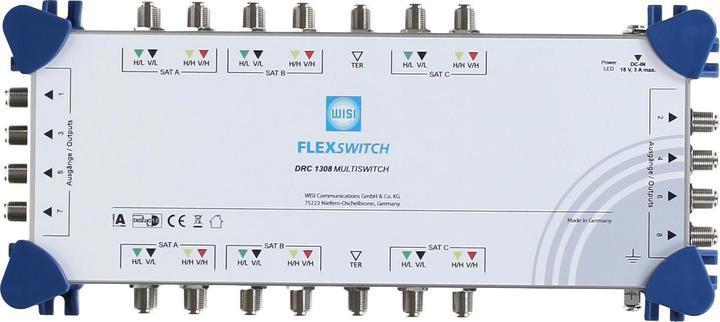

WISI DRC 1308 13inputs 13outputs Satellite block distribution

The DRC 1308 is a cascade multi-switch with 13 inputs for distributing signals from three satellites and terrestrial sources. The levels are available at 13 cascade outputs for subsequent multi-switches. At the 8 participant outputs, standard DVB-S/S2 receivers or TVs with integrated receivers can be operated. Terrestrial signals such as DVB-T/T2, DAB, or FM are also available at each participant output. The DRC 1308 impresses with low connection attenuation, achieved through the active satellite branch. The passive terrestrial branch allows for multimedia services such as "LAN over Coax" or signals from communal systems to be fed in. The LNB power supply is ensured via upstream amplifiers or the optionally available power supply DRP 1533. Key features: Number of inputs: 13 inputs, Number of outputs: 13 outputs, Input frequency range (satellite): 950 - 2400 MHz.
