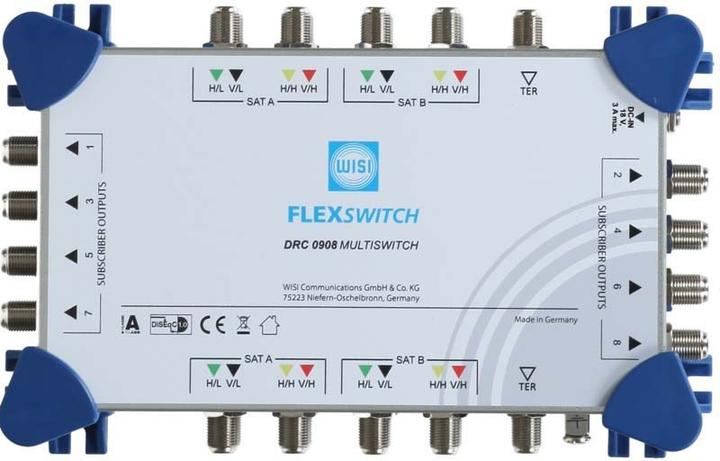

WISI DRC 0908 FLEXSWITCH Multiswitch 9 DRC 0908

Wisi Multiswitch DRC 0908

Manufacturer: Wisi
Designation: Multiswitch 9in8, Cascadable TerrPass
Type: DRC 0908
Subscriber connections: 8
Number of inputs: 9
Terrestrial input: active
Cascadable: yes
Number of trunk outputs: 9
Max. current consumption: 280 mA
Power supply: none
Control signal: 14/18 V, DiSEqC, 0/22 kHz
LNB power supply: 12 V
22 kHz generator: no

Wisi Multiswitch DRC 0908: additional details
The DRC 0908 is a cascaded multiswitch with 9 inputs for distributing two satellite and terrestrial signals. The levels are available at 9 cascade outputs for subsequent multiswitches. The 8 subscriber outputs can be used with standard DVB-S/S2 receivers or TVs with integrated receivers. Terrestrial signals such as DVB-T/T2, DAB, or FM are also available at each subscriber output. The DRC 0908 impresses with low connection attenuation, achieved through the active satellite branch. The passive terrestrial branch allows for multimedia services like LAN over Coax or signals from communal systems to be fed in. The LNB power supply is ensured via pre-amplifiers or the optionally available power supply DRP 1533.
EAN: 4010056749583.
