WISI DRC 0516 FLEXSWITCH Multiswitch 5 DRC 0516

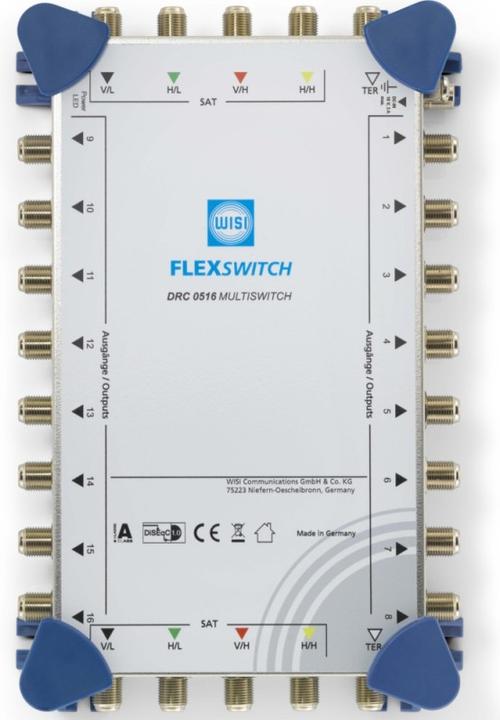

Wisi Multiswitch DRC 0516

Manufacturer: Wisi
Description: Multiswitch 5in16, Cascadable TerrAktiv
Type: DRC 0516
Subscriber connections: 16
Number of inputs: 5
Terrestrial input: active
Cascadable: yes
Number of trunk outputs: 5
Max. current consumption: 305 mA
Power supply: none
Control signal: 14/18 V, DiSEqC, 0/22 kHz
LNB power supply: 12 V
22 kHz generator: no

Wisi Multiswitch DRC 0516: additional details
The DRC 0516 is a cascaded multiswitch with 5 inputs for distributing satellite and terrestrial signals. The levels are available at 5 cascade outputs for subsequent multiswitches. Standard DVB-S/S2 receivers or TVs with integrated receivers can be operated at the 16 subscriber outputs. Input terrestrial signals such as DVB-T/T2, DAB, or FM are also available at each subscriber output. The DRC 0516 impresses with low connection attenuation, achieved through the active terrestrial and SAT branches. The LNB power supply is ensured via pre-amplifiers or the optionally available power supply DRP 1533.
EAN: 4010056749552.
