WISI Coaxial cable

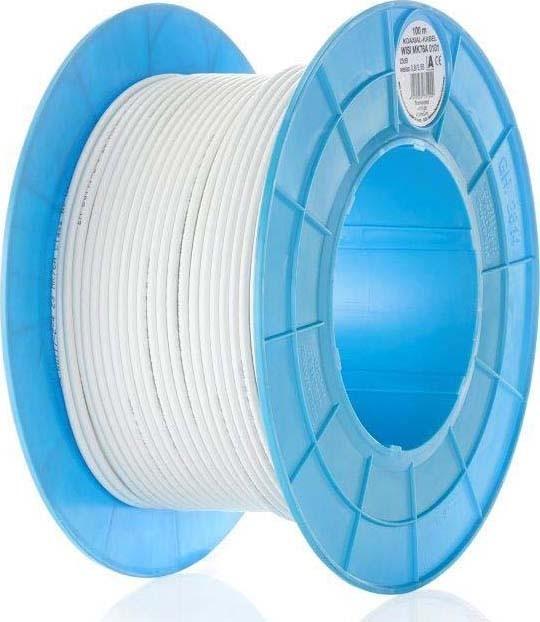

Wisi coaxial cable MK 76 A 0101 Sp100

Manufacturer: Wisi
Designation: Coaxial cable
Class: A++, WS, 115dB
Type: MK 76 A 0101 Sp100
Inner conductor diameter: 0.8 mm
Inner conductor material: Copper, bare
Inner conductor surface: Bare
Inner conductor class Kl.1: Solid
Outer conductor diameter: 3.65 mm
Outer conductor material: Copper, tin-plated
Outer conductor surface: Tin-plated

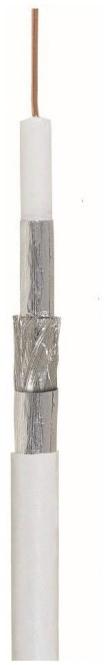

Outer conductor form: Foil + braiding
Dielectric: Other
Number of shield layers: 3
Reinforcement: No
Sheath material: Polyvinyl chloride (PVC)
Specification of sheath material: Other
Sheath colour: White
Fire behaviour class according to EN 13501-6: Eca
Smoke emission class according to EN 13501-6: None
Dripping behaviour class according to EN 13501-6: None
Acid emission class according to EN 13501-6: None
Halogen-free according to EN 60754-1/2: No
UV-resistant: No
Characteristic impedance: 75 Ohm
Outer diameter approx.: 5 mm
Min. permissible bending radius, flexible use with forced guidance: 25 mm
Min. permissible bending radius, flexible use/free movement: 25 mm
Min. permissible bending radius, stationary use/fixed installation: 25 mm
Suitable for installation in the ground: No
Permissible external temperature during installation/handling: No
Permissible cable outer temperature during installation/handling: -15 to 65 °C
Permissible cable outer temperature after installation without vibration: -5 to 50 °C
Weight: 27.92 kg/km

Wisi coaxial cable MK 76 A 0101 Sp100 is a coaxial cable for domestic installations. The small dimensions make it ideal for laying in empty conduits. The three-fold shielding ensures trouble-free transmission in distribution systems for cable television and satellite supply. The MK76A complies with Euroclass Eca. EAN: 4010056754037.
