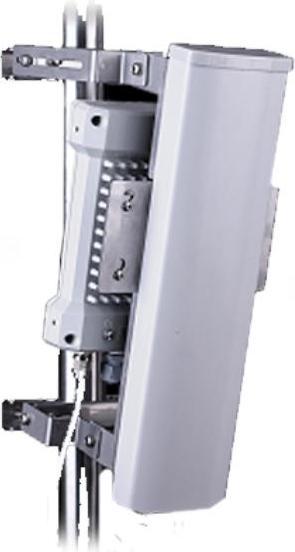

Wireless Instruments WiSector PRO M3-60-16HV - 3.3 - 3.8 GHz Sector Antenna for Cambium PMP 450, Incl. WiMount

Wireless Instruments WiSector PRO M3-60-16HV - 3.3 - 3.8 GHz Sector Antenna for Cambium PMP 450

WiSector
PRO M3-60-16HV for Cambium PMP 450 is a dual polarity sector
antenna. It contains a dual polarity H&V 3.3 - 3.8 GHz 60 degrees
sector antenna. The antenna is intended for creating medium range links
in outdoor environments. The set consists of the solid mounting system,
made from the highest-quality stainless steel, dedicated for the PMP450
Cambium model. The WiSector comes with 2x SMA female connectors located
at the bottom of the enclosure. The connectors are protected against
water by the special collar surrounding them. Due to the PTFE material
used for the antenna's PCB, the WiSector PRO M3-60-16HV has better
parameters than other antennas available on the market.

Features

• 2x 16 dBi gain

• Polarization H&V for the frequency of 3300 - 3800 MHz

• 2x SMA female connectors

• Big, ergonomic and voluminous WiSector PRO enclosure for radio equipment installation

• Outdoor waterproof enclosure WiSector PRO

• Designed for and resistant to any weather conditions

Systems

• WLAN - 3.6 GHz

• WiMAX - 3.5 GHz

• LTE band - 22, 42, 43

Applications

• Point-to-Multipoint connections

• Hotspot

Compatible with

• Cambium Networks - PMP 450

Electrical Specifications

• Frequency: 3.3 - 3.8 GHz

• Gain: 16 dBi

• VSWR:

• Beamwidth: 60°/11°

• Polarization: H&V

• Cross-Polar Isolation

• Front-to-Back: > 25 dB

• Separation between Connectors: > 32 dB

• Impedance: 50 ohms

• Max Input Power: 50 W

• Lightning Protection: No

• DC Ground: No

Mechanic Specifications

• Dimensions: 12 x 44.5 x 5.5 cm

• Weight: 3.5 kg

• Connector: 2x SMA female

• Material: PET

• Waterproof level: IP67

• Operating temperature: from -40 °C to 70 °C.
