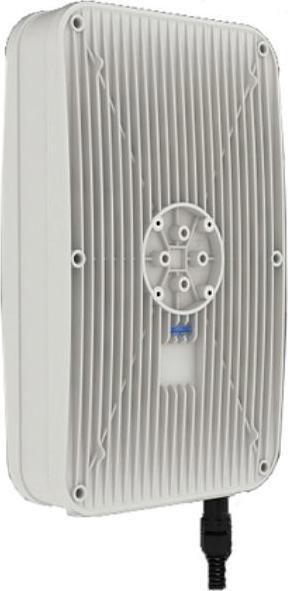

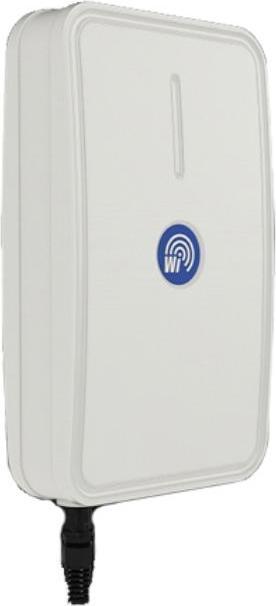

Wireless Instruments WiBOX SA M6-90-17HV - 6 GHz, 17 dBi Sector Antenna, Incl. WiMount

WiBOX SA M6-90-17HV - 6 GHz, 17 dBi Sector Antenna

The WiBOX SA M6-90-17HV is an innovative, dual-polarized sector antenna that operates in the frequency range of 5.6 to 6.5 GHz with a gain of 17 dBi. It is primarily used for medium and short distances. The antenna is integrated into a WiBOX Large housing, allowing for installation of almost any router board. There is also the option to easily integrate other systems through additional connection holes at the bottom of the WiBOX.

The waterproof RJ45 connector allows for easy PoE use without the need for complicated crimping in hard-to-reach places. The WiBOX Large is made of durable plastic, providing resistance to UV radiation and harsh weather conditions. The special fiberglass mount ensures high stability, even in strong winds. The antenna comes with 2x SMA connectors.

Features

• Horizontal and vertical polarization with 17 dBi gain
• Waterproof WiBOX Extra Large outer housing
• Large and comfortable WiBOX Extra Large for device installation
• Waterproof RJ45 system
• Adjustable mast mount
• High-quality construction
• 2x SMA sockets
• Ground connection for lightning protection
• Stable WiMount mounting elements
• Designed for use in all weather conditions

Applications:

• 6 GHz band applications
• IEEE 802.11a WLAN systems
• Base station antennas
• Point-to-multipoint applications
• Wireless broadband systems
• System integration
• Nstreme protocol
• 802.11n/MIMO standard

Frequency: 5600 - 6500 MHz
Gain: Port 1 (Vpol) = 16.5 dBi +/-0.5 dB, Port 2 (Hpol) = 17.5 dBi +/-0.5 dB
Polarization: H and V
Horizontal Beamwidth: 90°
Vertical Beamwidth: 8°
Front-to-Back Ratio: >30 dB
Port-to-Port Isolation: >50 dB
VSWR:
Impedance: 50 Ohm
Connector: RJ45

Mast Mounting: Ø 60 (2.76) mm
Protection Class:...
