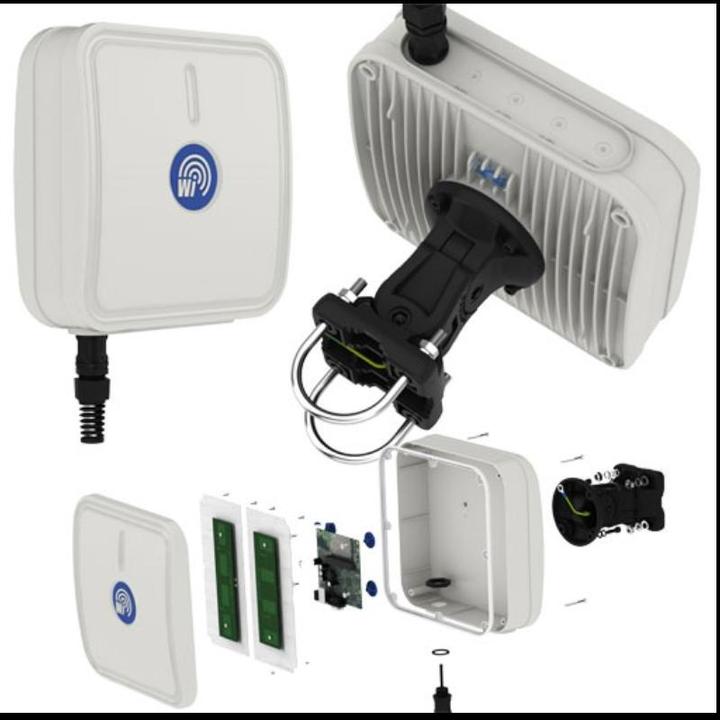

Wireless Instruments WiBOX SA 5-90-14 V - 5 GHz, 14 dBi Sector Antenna, incl. WiMount

WiBOX SA 5-90-14 V - 5 GHz, 14 dBi Sector Antenna

The WiBOX SA 5-90-14 V is a sector antenna with a gain of 14 dBi in the frequency range of 5.3 – 6.0 GHz. It has been designed for base stations for short to medium distances. The antenna is integrated into the WiBOX Medium housing, which has installation dimensions of 25 x 25 x 5 cm. The housing is protected to IP67 standards and provides ample space for the installation of the most common WLAN equipment. The WiBOX Medium allows for the integration of the antenna with other systems through the use of the connection holes located at the bottom. The waterproof RJ45 connector enables power supply via PoE without the need to crimp an RJ45 connector on the mast or roof during installation. The collar around the connector ensures that the connector remains dry. The housing is made from durable plastic that resists UV radiation and harsh weather conditions. The specially reinforced mount, made from fiberglass, ensures stability even in strong winds. The WiBOX SA 5-90-14H operates with vertical polarization and comes with an SMA connector.

Features

• Vertical polarization with 14 dBi antenna gain
• Waterproof WiBOX Medium housing
• Spacious and convenient WiBOX Medium for device installation
• Waterproof RJ45 system
• Adjustable mast mount
• High-quality construction
• SMA socket
• Ground connection for lightning protection
• Stable WiMount fastening elements
• Designed for use in all weather conditions

Applications

• 5 GHz WLAN applications
• IEEE 802.11b/g WLAN systems
• Use as a base station
• Point-to-multipoint applications
• Wireless broadband systems
• System integration
• WIMAX frequency range: 5100 - 5850 MHz
• Antenna gain: 14 dBi
• Polarization: V
• Horizontal beamwidth: 90°
• Vertical beamwidth: 16°
• VSWR:
• Impedance: 50 Ohm
• Connections:...
