WiBOX SA 24-90-15 V - 2.4 GHz, 15 dBi Sector Antenna

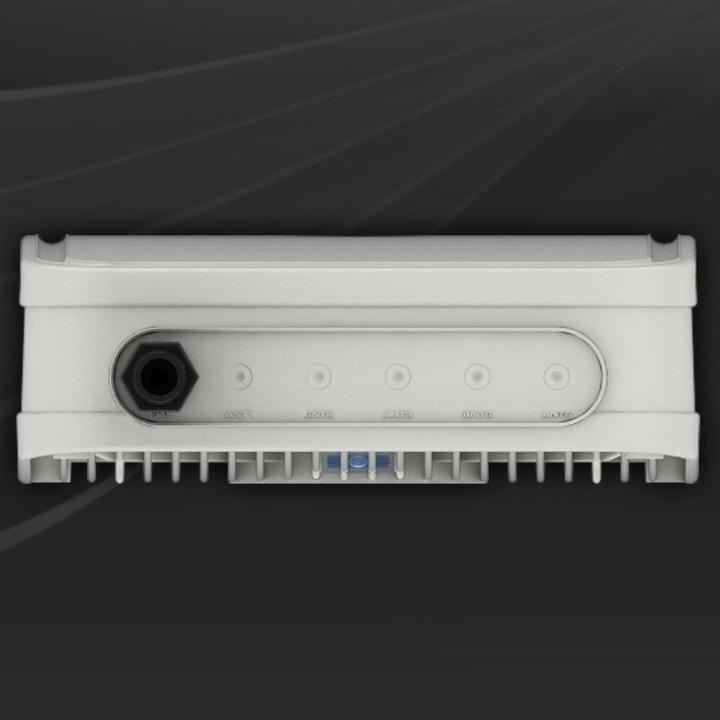

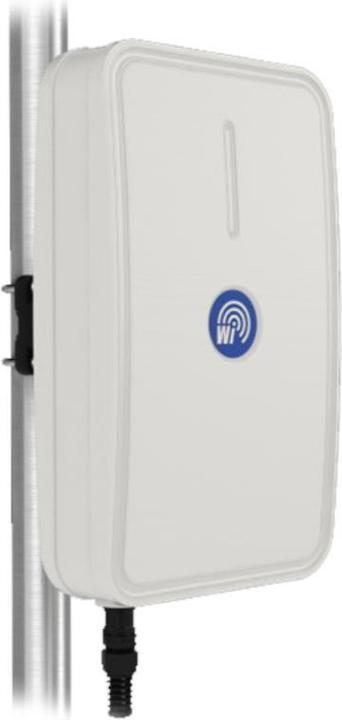

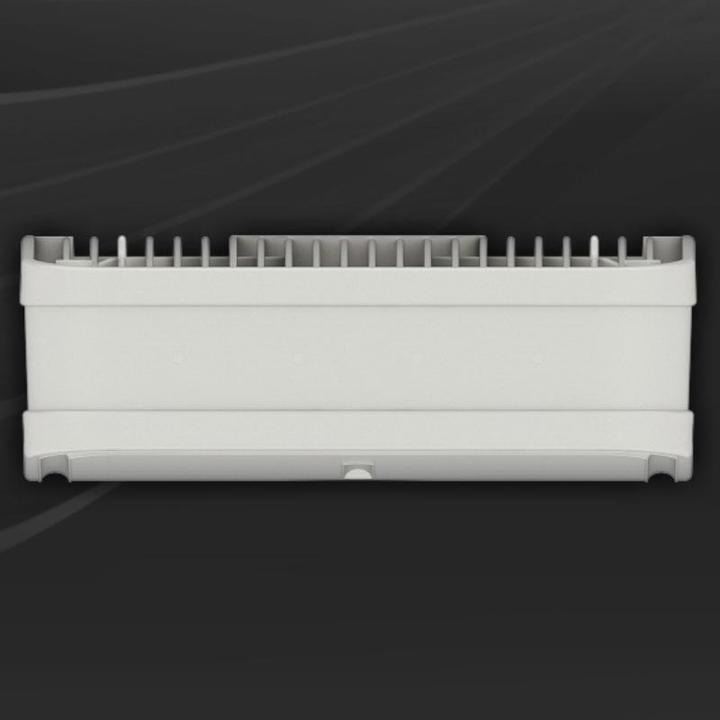

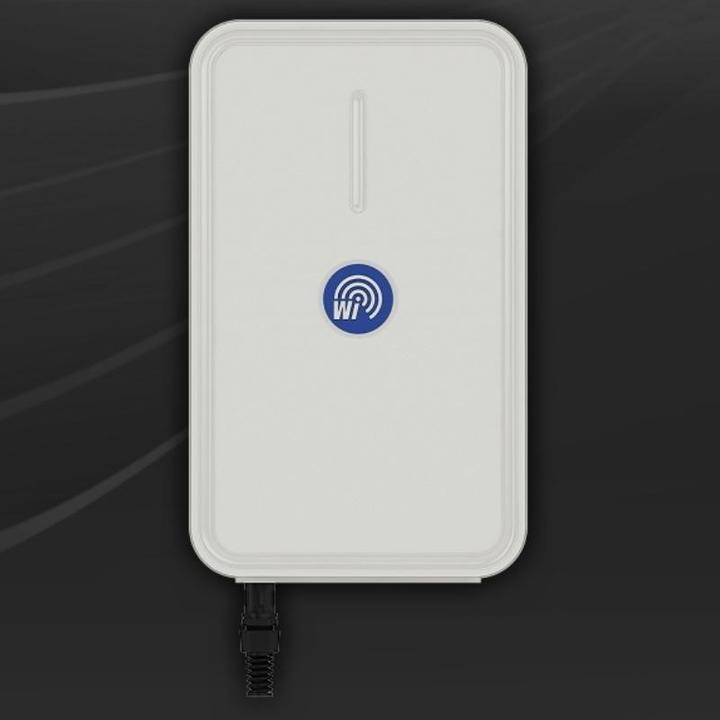

The WiBOX SA 24-90-15 V is a sector antenna with a gain of 15 dBi in the 2.4 GHz band. It has been designed for base stations for short to medium distances. The antenna is integrated into the WiBOX Extra Large housing, which has dimensions of 24 x 46 x 5 cm for installations. The housing is IP67 rated, providing ample space for the installation of the most popular WLAN equipment. The WiBOX Medium allows for the integration of the antenna with other systems using the connection holes located at the bottom. The waterproof RJ45 connector enables power supply via PoE, eliminating the need to crimp an RJ45 connector on the mast or roof during installation. The collar around the connector ensures that the connector remains dry. The housing is made of durable plastic, resistant to UV radiation and harsh weather conditions. The specially reinforced mount, made from fiberglass, ensures stability even in strong winds. The WiBOX SA 24-90-15 V operates with vertical polarization and comes with an SMA connector.

Features

• Vertical polarization with 15 dBi antenna gain
• Waterproof WiBOX Extra Large housing
• Spacious and convenient WiBOX Extra Large for device installation
• Waterproof RJ45 system
• Adjustable mast mount
• High-quality construction
• SMA socket
• Ground connection for lightning protection
• Stable WiMount mounting elements
• Designed for use in all weather conditions

Applications

• 2.4 GHz WLAN applications
• IEEE 802.11b/g WLAN systems
• Used as a base station
• Point-to-multipoint applications
• Wireless broadband systems
• System integration
• WIMAX frequency range: 2400 - 2500 MHz
• Antenna gain: 15 dBi
• Polarization: V
• Horizontal beamwidth: 90°
• Vertical beamwidth: 10°
• VSWR:
• Impedance: 50 Ohm.
