Wireless Instruments WiBOX PA M5-20HV - 2x 20 dBi, 5.1 - 5.9 GHz Panel Antenna

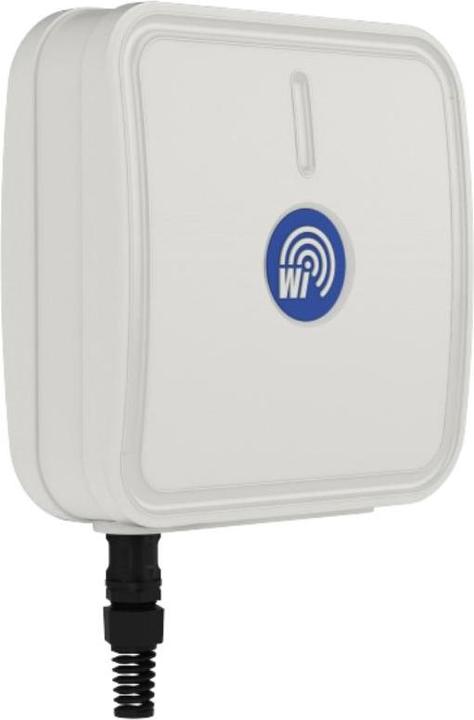

The WiBOX PA M5-20HV is an innovative PTFE microstrip dual-polarity H&V polarized (MIMO 2x2) planar antenna operating in the frequency range of 5.1 - 5.9 GHz with 20 dBi gain in both polarizations. It is designed for point-to-point (PTP) or point-to-multipoint (PMP) applications as a client antenna, where high-gain antennas are required. It works with WLAN 802.11n/ac systems and can be installed indoors and outdoors (IP67). The antenna is integrated into a high-quality WiBOX Medium box system.

Features:

  • 2x connector SMA
  • Spacious WiBOX Medium enclosure for radio equipment installation
  • Waterproof outdoor enclosure WiBOX Medium
  • Designed for all weather conditions
  • Waterproof RJ45 system
  • Grounding system protecting against lightning - DC ground

Electrical Specifications:

  • Frequency: 5.1 - 5.9 GHz
  • Gain: 20 dBi
  • VSWR: < 2.00
  • Beamwidth: 16°/16°
  • Polarization: H&V
  • Front-to-Back Ratio: > 30 dB
  • Port-to-Port Isolation: > 32 dB
  • Impedance: 50 ohm
  • Max Input Power: 50 W
  • Lighting Protection: No
  • DC Ground: Yes

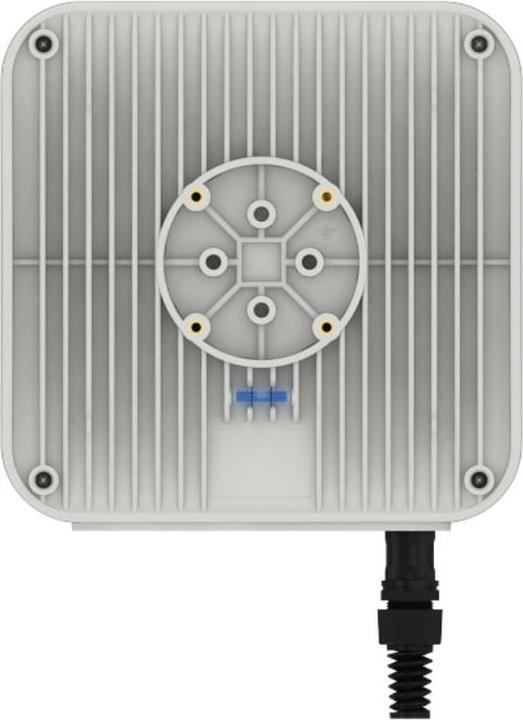

Mechanical Specifications:

  • Dimensions: 27.2 x 27.6 x 9.6 cm / 10.71 x 10.87 x 3.78 inches
  • Weight: 1.6 kg

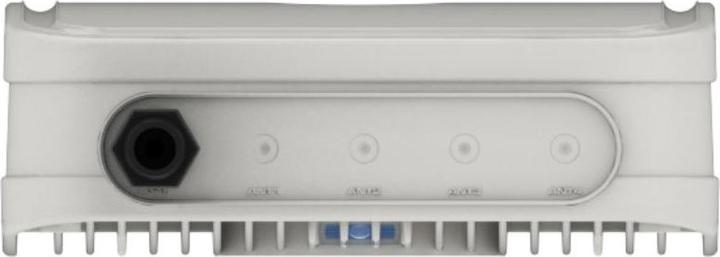

  • Connector: RJ45 & 2x SMA
  • Material: ABS
  • Waterproof Level: IP67
  • Operating Temperature: from -40 °C to 80 °C / from -40 °F to 176 °F
  • Wind Resistance: 70 km/h

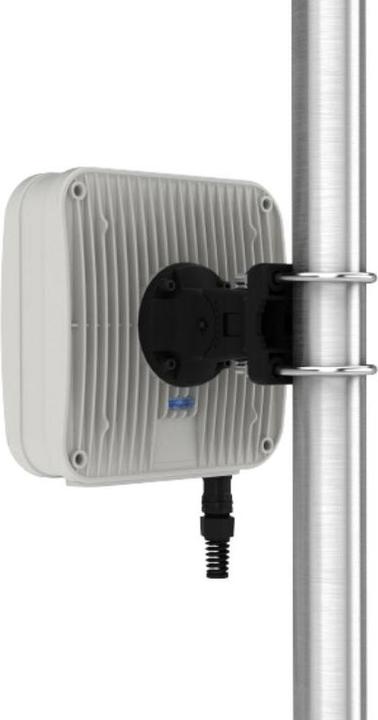

Mounting Kit:

  • Dimensions: 9.9 x 10.5 x 14.8 cm / 3.9 x 4.13 x 5.83 inches
  • Regulation Range: +/- 30°
  • Weight: 0.87 kg
  • Mast Dimensions Range: 250 - 650 mm
  • Material: Polyamide with fiberglass + galvanized steel U-Bolts.

Key specifications

Antenna type
WLAN Antenna
Application range
IndoorOutdoor
Protection type (IP code)
IP67
Operating temperature
-40 - 80 °C
Item number
21599424

General information

Manufacturer
Wireless Instruments
Category
Network antenna
Manufacturer no.
WIBOX PA M5-20HV
Release date
2.8.2022

Antenna properties

Antenna type
WLAN Antenna
antenna reception
Wi-Fi
Antenna gain
20 dBi

Application range

Application range
IndoorOutdoor
Protection type (IP code)
IP67

Operating conditions

Operating temperature
-40 - 80 °C

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
0.28 m
Width
0.27 m
Height
0.10 m
Weight
1600 g
