Wireless Instruments WiBOX PA DM5-20HV - MIMO 2x2 Directional Panel Antenna, 5 GHz, incl. WiMount

WiBOX PA DM5-20HV - MIMO 2x2 Panel Directional Antenna 20 dBi, 5 GHz

The WiBOX PA M5-20HV is a dual-polarized (MIMO 2x2) directional antenna operating in the frequency range of 5.1 - 5.85 GHz with a gain of 20 dBi for both polarizations. This antenna is designed for point-to-point and point-to-multipoint connections as a client antenna. It is housed in the WiBOX Extra Large enclosure, which provides space for installations measuring 24 x 46 x 5 cm. The enclosure is IP67 rated, offering ample room for the installation of common Wi-Fi equipment. The WiBOX Extra Large allows for the connection of the antenna to other systems through the use of the connection holes located at the bottom. The waterproof RJ45 connector enables power supply via PoE without the need to crimp an RJ45 connector on the mast or roof during installation. The collar around the connector ensures that the connector remains dry. The enclosure is made of durable plastic that withstands UV radiation and harsh weather conditions. The specially reinforced mount, made from fiberglass, ensures stability even in strong winds. The antenna comes with an SMA connector.

Features

• 2x 20 dBi directional antenna
• Waterproof WiBOX Extra Large enclosure
• Spacious and convenient WiBOX Extra Large for device installation
• Waterproof RJ45 system

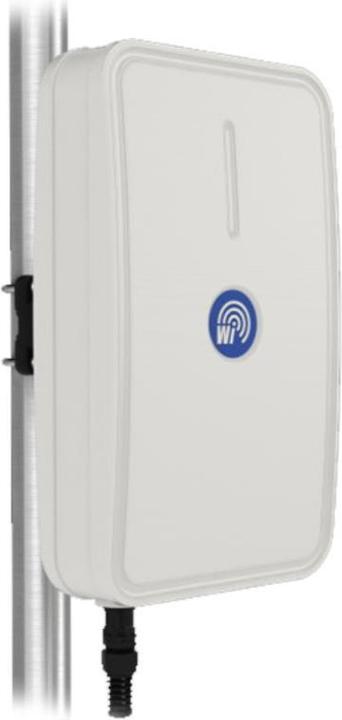

• Adjustable mast mount
• Horizontal and vertical polarization, dual-polarized, 2x2 MIMO
• High-quality construction
• 2x SMA sockets
• Ground connection for lightning protection
• Stable WiMount fastening elements
• Designed for use in all weather conditions

Applications

• 5 GHz Wi-Fi applications
• IEEE 802.11a Wi-Fi systems
• Point-to-point applications
• Client applications
• System integration
• Nstreme protocol
• 802.11n/MIMO standard
• Frequency range: 5100 - 5850 MHz
• Antenna gain: 2x 20 dBi.
