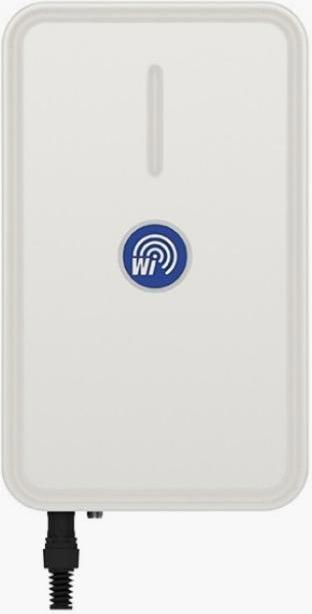

Wireless Instruments WiBOX Extra Large Slim

Wireless Instruments WiBOX Extra Large Slim

The aesthetic WiBOX series design predisposes the Extra Large Slim model to be installed indoors and outdoors. WiBOX Extra Large Slim has the IP67 protection level, which is achieved by a special sealing system that makes it resistant against any weather condition. It's great for standard or custom embedded installations. WiBOX Extra Large Slim also has 5 additional holes to install up to 5 other antennas on the connector panel. The enclosure has an installation compartment matching for PCB (electronic board), the compartment dimensions are 180 x 174 x 35 mm. WiBOX Extra Large Slim comes with a fiberglass WiMount mounting system. The system can be used with any antenna board from Wireless Instruments which corresponds with this box type. WiBOX Extra Large Slim can be provided also with outer connectors.

• Outer dimensions: 29.2 x 48.6 x 7.1 cm (11.5 x 19.13 x 2.8 inch)

• Inner dimensions: 18 x 17.4 x 3.5 cm (7.09 x 6.85 x 1.38 inch)

• Weight: 2.9 kg

• Connector: RJ45

• Material: ABS (UV resistant)

• Operating temperature: -40°C to 70°C (-40°F to 32°F).
