Wago 852-1411 - Switch 5-Port Gigabit Ethernet PoE+ - Switch - 1 Gbps

Industrial-ECO-Switch
5 Ports 1000Base-T
4 Power over Ethernet
Extended temperature range

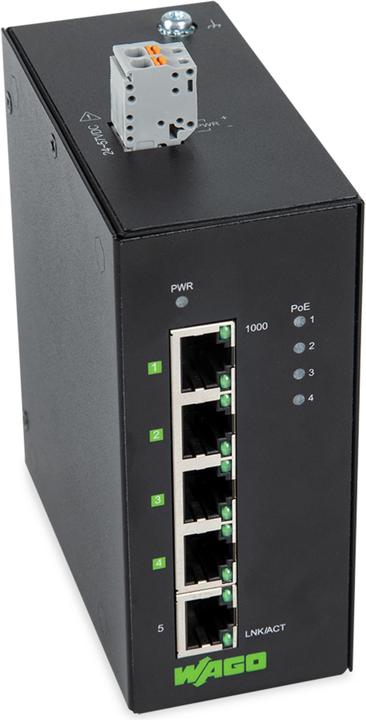

The switch 852-1411/000-001 is an industrial unmanaged Ethernet switch with 5 Gigabit Ethernet ports, of which 4 ports support Power over Ethernet (PoE+) with 30 W. These 4 PoE+ ports (IEEE 802.3at) can be used simultaneously to power PoE devices (Powered Devices). The integrated voltage converter allows operation with the standard supply voltage of DC 24 V commonly used in control cabinets.

The compact design with a DIN rail adapter enables easy installation in control cabinets while providing high vibration and shock resistance. The automatic detection of the transmission rate (Autonegotiation) and the self-detection of send and receive lines (Auto MDI-X) facilitate simple plug & play operation, helping to save costs and time during commissioning.

Features:
5 Ethernet ports 10/100/1000 MBit/s Autonegotiation.
4 PoE+ ports (IEEE 802.3at).
Diagnostic LEDs on the front.
Supports Auto-MDI/MDI-X functions.
Half or full duplex transmission mode per port.
Store-and-forward switching method.
Integrated address lookup table, supports up to 8000 absolute MAC addresses.
Surge protection.
IEEE 802.3x flow control in full duplex operation.
LED display for PoE diagnostics.
For DIN rail 35 (TS 35).
