Vivotek FD9366-HV(3.6MM) - C Series - Network Surveillance Camera - Dome - Outdoor
1920 x 1080 PixelsProduct details

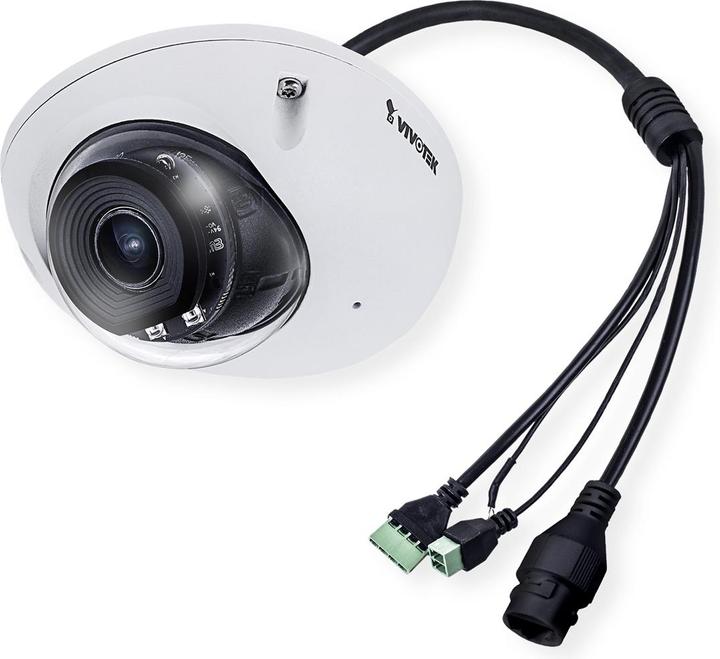

VIVOTEK FD9366-HV (3.6 mm) IP Camera 1080p Day/Night IR, WDR Pro, PoE, IP67, IK10 Vandal
The FD9366 is a fixed dome network camera designed for outdoor use, featuring a resolution of 1920 x 1080 at 30 FPS. With the latest VIVOTEK WDR Pro technology, this camera series is capable of capturing high-quality images in both low-light conditions and high-contrast environments.
The built-in IR function provides illumination in complete darkness. With the Smart IR feature, the firmware automatically adjusts the IR intensity for objects that come too close, preventing overexposure.
The camera supports WDR functionality with an efficiency of up to 120 dB. These models also support local video storage on MicroSD cards in case of network service interruption.
Additionally, the cameras come equipped with configurable motion detection and tampering detection with up to 5 masking areas.
- H.265 compression technology
- 30 fps at 1920 x 1080
- WDR Pro for unparalleled visibility in high-contrast environments
- Smart Stream III for optimizing bandwidth efficiency
- Built-in IR illuminators with a range of up to 20 meters
- Weatherproof IP67 and IP66 housing, vandal-proof IK10 housing
- Integrated 802.3af-compatible PoE
- Built-in MicroSD/SDHC/SDXC card slot for integrated storage
- Video rotation for corridor scenarios.
Network camera type | Outdoor surveillance camera |
Network interface | Wi-Fi |
Power supply | PoE |
Lens type | Prime lens |
Type of memory | Memory card |
Advanced functions | Motion sensor, Speakers |
Item number | 15656562 |
Manufacturer | Vivotek |
Category | Network camera |
Manufacturer no. | FD9366-HV(3.6MM) |
Release date | 14.4.2021 |
Colour | White |
Exact colour description | White |
Network camera type | Outdoor surveillance camera |
Camera design | Dome camera |
Camera resolution | 2 Mpx |
Max. picture resolution | 1920 x 1080 Pixels |
Viewing angle (H) | 89° |
Viewing angle (D) | 35° |
Lens type | Prime lens |
Focal length | 3.6 mm |
Digital zoom | 48 x |
Image sensor type | CMOS |
Refresh rate | 30 FPS |
Tilt range | 0 - 90° |
Advanced functions | Motion sensor, Speakers |
Video file formats | G.711(A-Law, H.264, H.265, MJPEG |
Protection type (IP code) | IP67 |
Connection A | RJ45 |
Memory card type | microSD, SDHC, SDXC |
Type of memory | Memory card |
Network interface | Wi-Fi |
Smart Home | Not compatible |
Installation place | Ceiling, Wall |
Application range | Home use |
Power supply | PoE |
PoE Standard | 802.3af (PoE) |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1/1, Built-in Mic, Lace-up, One way audio, VIVOTEK FD9366-HV (3.6mm) Fixed Dome Network Camera |

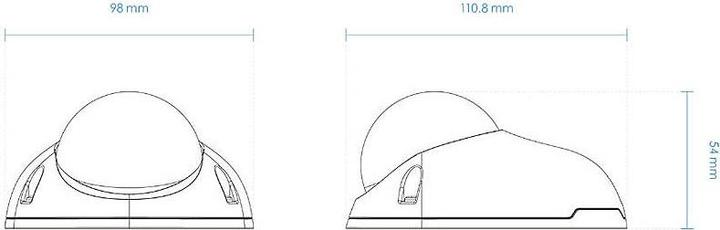

Height | 54 mm |
Length | 110.80 mm |
Width | 98 mm |
Weight | 400 g |
Length | 13 cm |
Width | 13 cm |
Height | 10 cm |
Weight | 560 g |
