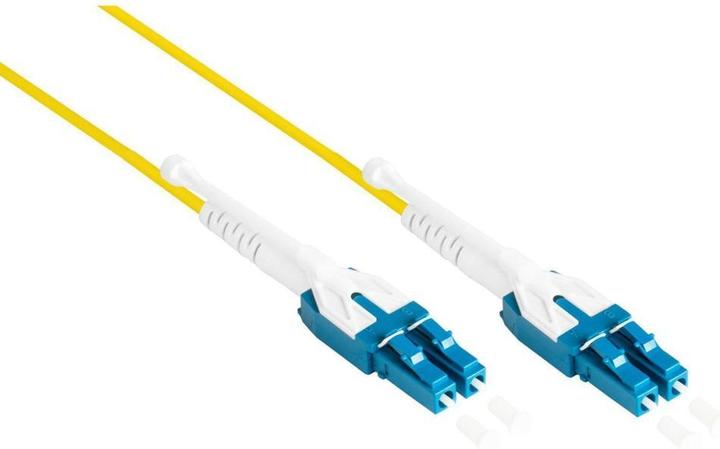

Varia SO-37939 - Patch cable fibre optic duplex OS2 (singlemode, 9125) LCLC, UNIBOOT, LSZH, 1m

VARIA's fiber optic (LWL) patch cables allow for the connection of various network components while ensuring lossless data transmission. Different quality classes (OMx/OSx) facilitate the qualitative and functional distinction of a fiber optic patch cable.

Uniboot design with release tab / extractor lever: Compared to conventional duplex fiber optic patch cables, the uniboot design shares a single sheath and bend protection for both conductors. As a result, uniboot fiber optic patch cables can save up to 50% space compared to traditional fiber optic cables, depending on the cable diameter. The release tab or extractor lever on the connectors makes it easier to unplug in high-density panel setups.

High quality standards, 100% testing, and individual measurement protocol: The use of high-quality materials and modern production facilities, along with continuous quality control during the manufacturing process, ensures lossless signal transmission and consistently high quality. Each individual patch cable undergoes testing after assembly. Following successful measurement, each patch cable is accompanied by an individual measurement/testing protocol.

Technical specifications:

• Fiber optic (LWL) duplex patch cable
• Connector 1: LC (UPC) with release tab / extractor lever
• Connector 2: LC (UPC) with release tab / extractor lever
• Includes dust caps
• Attached bend protection sleeve
• Fiber quality: OS2
• Fiber: G652D
• Fiber type: Singlemode 9/125 µm
• Cable construction: Duplex
• Cable diameter: 3.0 mm
• Jacket material: Halogen-free (LSZH)
• Min. bend radius: 15 mm
• Operating temperature: -40 to +85 °C
• Quality: Each cable comes with its own measurement/testing protocol

Color: Yellow (OS2)
Length: 1 m

Product features:

• Fiber quality: OS2 | Core/Fiber: 9/125 micrometers | Singlemode | Halogen-free (LSZH) and flame-retardant - G652D fiber
• Connectors: LC Duplex...
