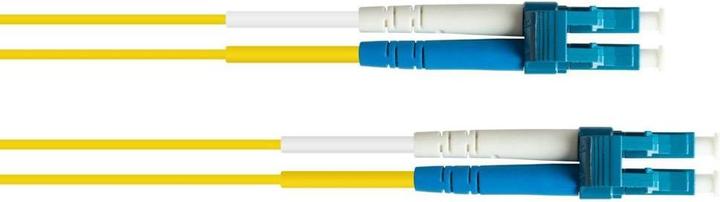

Varia Patch cable fibre optic duplex OS2 (singlemode, 9125) LCLC, LSZH, exchangeable polarit

Fibre optic patch cables from VARIA enable the connection of various network components, ensuring loss-free data transmission. Different quality classes (OMx/OSx) allow for qualitative and functional differentiation of fibre optic patch cables.

High-quality standards, 100% testing, and individual measurement protocols are maintained through the use of premium materials and modern production facilities, along with continuous quality controls during the manufacturing process. Each patch cable is tested after assembly, and upon successful measurement, it is provided with an individual measurement/test report.

Technical specification:

• Fibre optic (FO) duplex patch cable
• Connection 1: LC (UPC)
• Connection 2: LC (UPC)
• Includes dust protection caps
• Interchangeable polarity/coding
• Attached bend protection sleeve
• Fibre quality: OS2
• Fibre: G652D
• Fibre type: Singlemode 9/125µ
• Cable construction: Duplex
• Cable diameter: 2.0 mm
• Jacket material: Halogen-free (LSZH)
• Minimum bending radius: 15 mm
• Operating temperature: -40 to +85 °C
• Quality: Each cable comes with its own measurement/test report

Colour: Yellow (OS2)
Length: 30 m

Product features:

• Fibre quality: OS2 | core/fibre: 9/125 microns | singlemode | halogen-free (LSZH) and flame-retardant - G652D fibre, 2.00 mm diameter
• Connections: LC duplex plug to LC duplex plug | Duplex clamp detachable - Interchangeable polarity
• Attached kink protection sleeve | Minimum bending radius: 15 mm | Operating temperature: -40 to +85 °C
• High-quality standards, 100% testing: Each cable comes with its own measurement/test report
• Colour: Yellow (OS2) | Length: 30 m.
