Vanderbilt V24246-C3553-A1 Sicherheitstürenbedienung Bar 2 Tür(en)

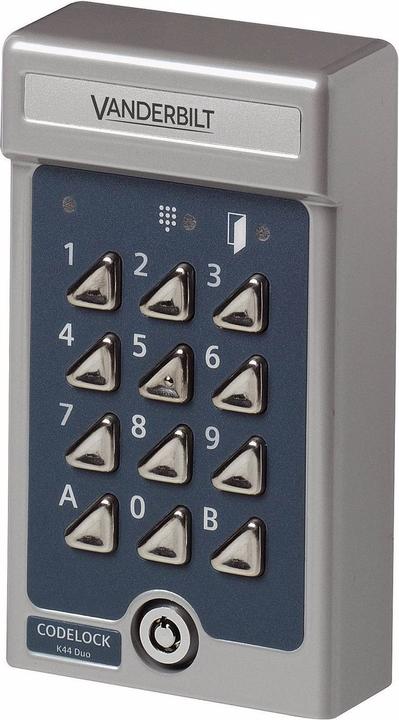

Vanderbilt Compact Code Lock V44DUO

Manufacturer: Vanderbilt
Designation: Compact Code Lock
30 Codes, 4/6-digit
Type: V44DUO
Reading Method: Code

The Vanderbilt Compact Code Lock V44DUO is a compact code lock with a backlit stainless steel keypad for up to 30 codes. The first 20 memory slots are reserved for 4-digit codes, and the last 10 for 6-digit codes. Programming is done via the keypad.

The device features two independently programmable relays, which can also be activated via a remote opening button. Additionally, codes can be deactivated at specific times using external timers. Other features include: zero opening, robbery alarm function, or alarm for forcibly opened doors via door contacts, continuous door opening, cover contact with output, alarm output, and doorbell output for connecting a bell (E7 relay required), as well as a lock function (door contacts are necessary).

Note: The device offers effective tamper protection, which can be easily reset through specific inputs.

Operating Voltage: 10 to 35 VDC, 8 to 24 VAC
Current Consumption: 75 mA in standby
Inputs: Two remote opening/closing with delay (closing), two separate for code blocking, one for door contacts, external control for zero opening
Outputs: Two potential-free relay contacts, max. 2A, 28 V DC, Open Collector for emergency function/alarm, Open Collector for doorbell, cover contact (normally closed)
IP 54
Opening Time: 1 - 99 seconds
Dimensions (H x W x D): 140 mm x 80 mm x 40 mm
EAN: 4025515473442.
