V-TAC BOSG PhotovoltaicKIT

Ratings
BrandMore from V-TAC
Currently out of stock
Free shipping starting at 50.–

Product details

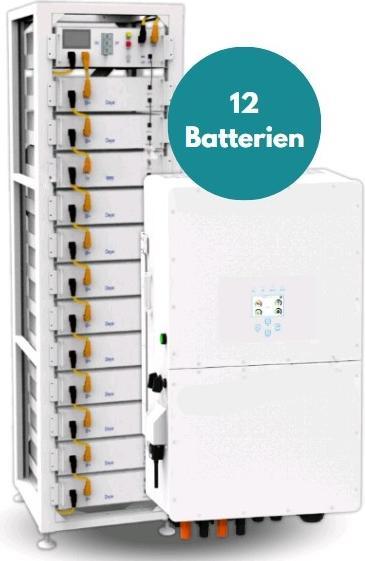

The V-TAC photovoltaic kit offers an integrated solution consisting of a 50 kW Deye three-phase hybrid inverter (SKU 11861 - SUN-50K-SG01HP3-EU-BM4) and a 61.44 kWh LiFePO4 storage system (SKU 11994 - BOS-G60). The inverter supports on-grid and off-grid configurations with integrated WLAN and CT and, thanks to IP65 certification, ensures high performance and maximum reliability even in difficult environments.

The kit contains

1x 11861: HIGH VOLTAGE three-phase hybrid inverter 50 kW, WLAN and CT included

Degree of protection: IP65

Size: 527x894x294 mm

Maximum AC power: 50 kW

Producer: Deye

Operating temperature: -40~60°C, >45°C

Electrical system: Three-phase

Inverter output: 230-400V 3L+N+PE

Maximum input power: 65 kW

Maximum input voltage for MPPT: 1000V

Minimum operating voltage: 150V

MPPT voltage range: 450 - 850V

MPPT nominal voltage: 600V

Number of MPPT trackers: 4

Maximum current for MPPT: 36A

1x 11994: Deye high-voltage storage kit 61.44 kWh LFP, HV-Box BMS, cable, cabinet

Battery capacity (kWh): 61.44 kWh

Installation mode: With rack

Degree of protection: IP20

Battery capacity (Ah): 100Ah

Battery chemistry: LFP (LiFePO4)

Recommended depth of discharge: 90

BMS: Integrated

Colour: White

Size: 589x590x2240 mm

Operating temperature: from -20°C to +55°C

Rated voltage: 614.4 V

Usable energy: 55.3 kWh.

Key specifications

Voltage transformer type
Solar voltage transformer
input voltage
1000 V
Output voltage
400 V
Width
58.90 cm
Height
59 cm

General information

Item number
52385549
Manufacturer
V-TAC
Category
Power inverters
Manufacturer no.
22022
Release date
23.10.2024

Colour

Colour
White
Exact colour description
White

Voltage Transformer Properties

Voltage transformer type
Solar voltage transformer
input voltage
1000 V
Output voltage
400 V
Electric current output
36 A

Product dimensions

Width
58.90 cm
Height
59 cm
