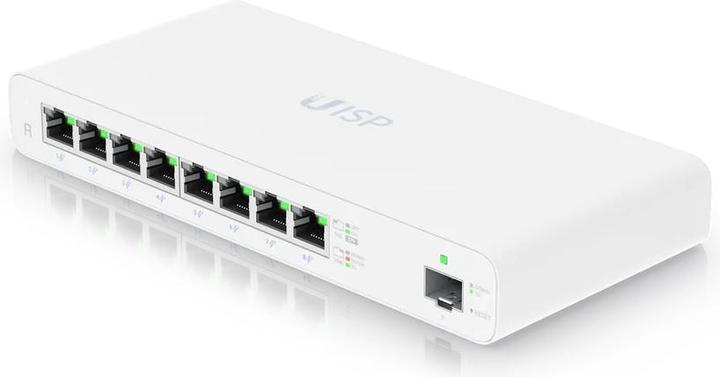

Ubiquiti UISP-R 8x Gigabit PoE ISP Router, 1x SFP

Eight-port Gigabit PoE router designed for MicroPoP applications and supports secure, large-scale networks. It features eight GbE RJ45 ports with 27 V passive PoE output and one SFP port. The total PoE availability is 110 W (27 V), with 15 W per port (2 pairs) or 30 W per port (4 pairs). The router offers up to 1 Gbps NAT throughput, traffic shaping functionality, and automatic customer blocking, along with firewall and OSPF routing capabilities. It can be installed outdoors in the UISP box (available separately).

Technical specifications:

• Mechanical Dimensions: 210.4 x 95 x 29 mm (8.3 x 3.7 x 1.1")
• Weight: 600 g (1.3 pounds)
• Housing material: Polycarbonate

Hardware:

• Processor: Dual-core 880 MHz, MIPS1004Kc
• Memory: 512 MB DDR3
• Onboard flash memory: 512 MB NAND
• Network interface: Eight GbE RJ45 ports and one 1G SFP port

Management interface: Ethernet in-band, Bluetooth BLE

Power method: External AC/DC adapter

• Power supply: 27 V DC, 4.4 A (power supply unit included)
• Supported voltage range: 24-28 V DC
• Max. power consumption: 10 W (without PoE output)
• ESD/EMP protection: Air ± 15 kV, contact ± 8 kV
• Operating temperature: -10 to 50 °C (14 to 122 °F)
• Operating humidity: 5 to 95 % non-condensing

PoE interface: Eight 27 V passive PoE ports (2-pair or 4-pair)

• Max. passive PoE wattage per port: 30 W/27 V DC
• Passive PoE voltage range: 27 V DC

LEDs: System status, RJ45 data connections, PoE speed/link/activity, SFP data port link/activity

Software management application: UISP, version 1.4.0 and higher.
