Ubiquiti U®Fiber GPON Optical Line Terminal, 8x GPON, 2x SFP+

Attention! Ubiquiti delivers permanently, but with limited quantities and no delivery dates. Backorders are fulfilled on a first-in, first-out basis. Recommendation: Order goods in backlog!

• 8 GPON SFP ports, 2 SFP+ ports
• Concurrent clients: 1024 ONUs
• GPON range: Up to 20 km link
• GPON speeds: 2.488 Gbps upstream (TX), 1.244 Gbps downstream (RX)
• Wavelengths: 1490 nm upstream (TX), 1310 nm downstream (RX)
• Max power consumption: 40W
• Power method:
• AC/DC power module (included)
• DC/DC power module (optional)
• Mounting: 1U rack-mountable (optional)
• GPON end-to-end solution
• High-performance, provider OLT
• Low-cost, robust ONU CPE

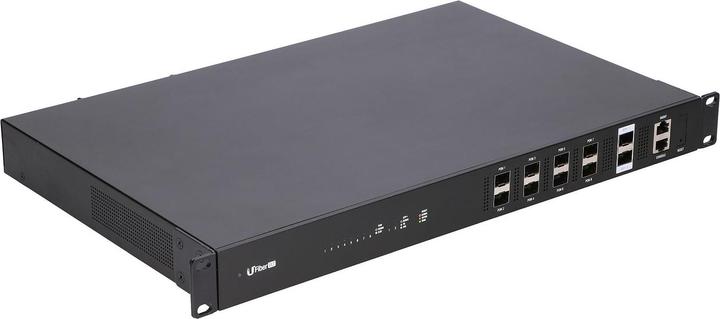

The U Fiber OLT offers eight GPON ports and supports up to 1024 concurrent clients with physical links of up to 20 km in distance. Two SFP+ ports provide 10G of uplink connectivity.

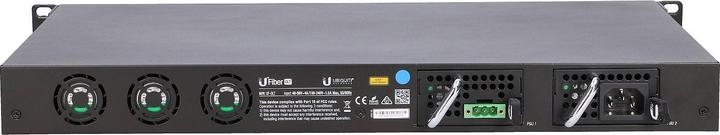

The UF-OLT provides flexible power options, with two modular power adapter bays that can house either AC/DC or DC/DC power modules. One AC/DC module is included; additional modules can be purchased separately.

Configuring a fiber network just became as easy as setting up a smartphone. Say goodbye to command lines, manuals, and paid support licenses. Introducing the UFiber OLT – a fiber solution that anyone can deploy.
