Ubiquiti Switch EdgeSwitch ES-18X 18 Port

Ubiquiti ES-18X - Gigabit Switch with PoE and SFP

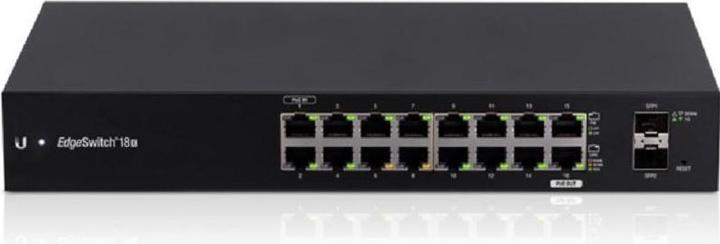

The EdgeSwitch 18X is a cost-effective high-performance switch featuring SFP ports and a fanless design, making it ideal for larger WISP applications. Sixteen Gigabit RJ45 ports provide copper connectivity with PoE input on port 1 and PoE pass-through on port 16. Two SFP ports offer fiber connectivity. The browser-based configuration interface provides intuitive control. Management is also available through the Ubiquiti Network Management System.

Features:

• 16 Gigabit RJ45 ports
• 2 SFP ports
• Supports PoE pass-through on port 16 (selectable via software)
• Powered by passive 24V PoE or external 24V AC/DC adapter
• Wall or rack mountable (bracket included)
• Dimensions: 299.8 x 160 x 43.7 mm
• Weight: 1.15 kg
• Non-blocking total throughput: 108 Gbps
• Switching capacity: 36 Gbps
• Forwarding rate: 26.78 Mpps
• Max power consumption (without PoE output): 14 W
• Power supply method: AC/DC adapter, 24V passive PoE
• Power supply: 24V DC, 1A power adapter (included) or 24V passive PoE
• Network interfaces: 16 10/100/1000 Mbps RJ45 ports, 2 1 Gbps SFP ports

Management interface: Ethernet In-Band

Certifications: CE, FCC, IC
Rackmount: Yes (use the optional ER-RMKIT for rack installation)
ESD/EMP protection: Air: +/-16 kV; Contact: +/-8 kV
Operating temperature: -10°C to 50°C
Operating humidity: up to 90% non-condensing.
