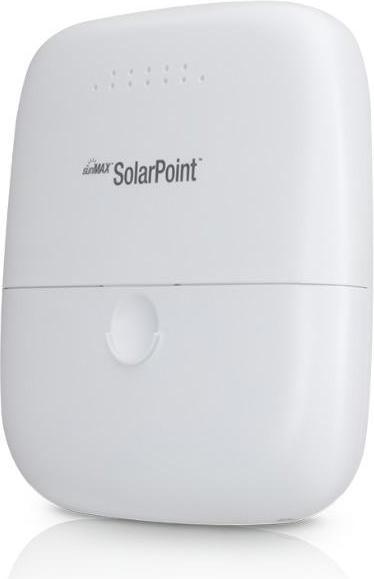

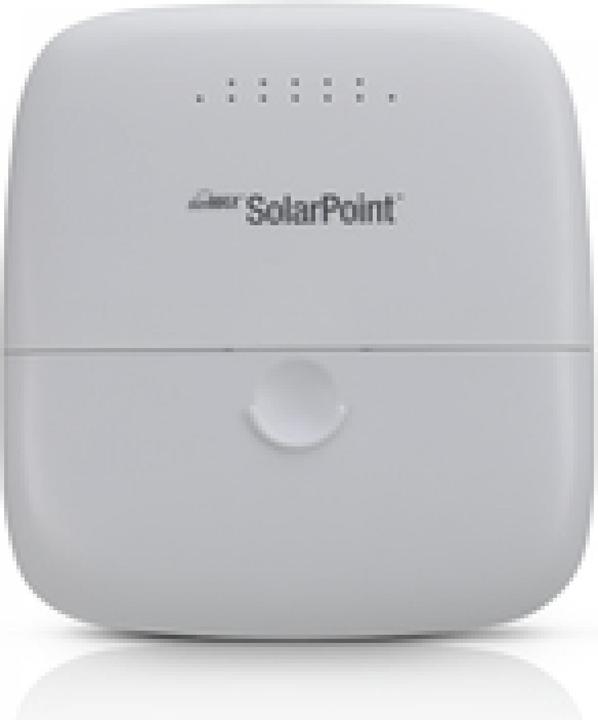

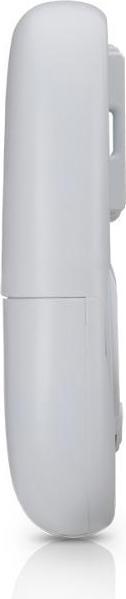

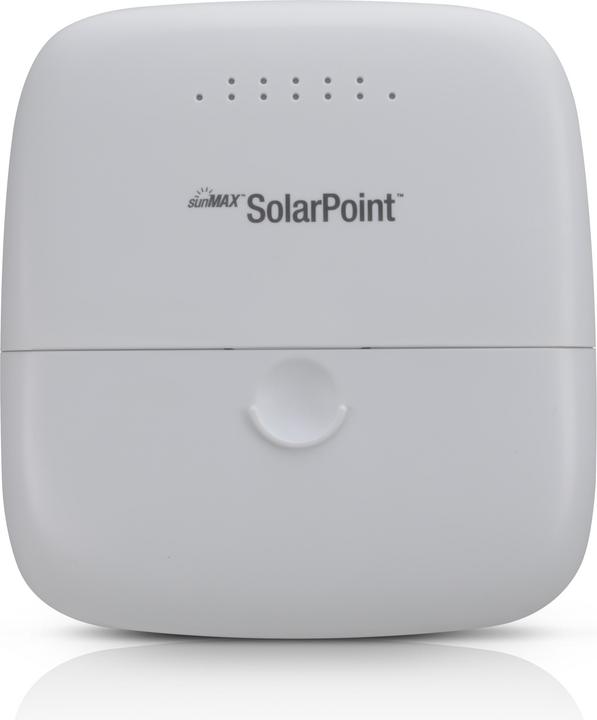

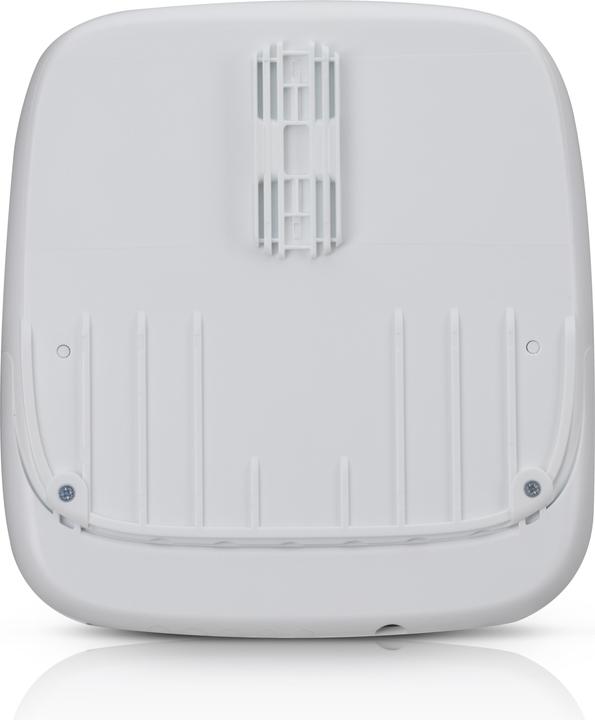

Ubiquiti SolarPoint SunMax

SunMAX SolarPoint is a remotely managed MPPT charge controller with 24 V and 7 A, featuring an integrated 4-port 24 V PoE 10/100 Mbps switch and a DC output that delivers up to 40 W. It provides an integrated weather forecasting service that, along with AI algorithms, offers crucial information about the current and future performance of your solar system.

Features:

• Indoor and outdoor use
• PV panel input: 10 – 60 V
• 4-port 24 V PoE output 10/100 switch
• 24 V DC output connection
• Max. output power: 40 W
• External 24 V battery charging up to 7 Amperes (supports SLA, AGL, AGM) * Batteries and solar panels not included.

Dimensions: 202 x 186 x 50 mm
Weight: 650 g
Housing features: UV-resistant polycarbonate, suitable for outdoor use
Max. power consumption: 2 W
Network interface: (4) 10/100 Fast Ethernet ports
Management interface: Ethernet; Wi-Fi (2.4 GHz)
Button: Reset
LEDs: System, Output
Power source: PV panel (H4 connectors)
PV input voltage range: 10 - 60 V (reverse polarity protection, overvoltage protection)
Max. PV current: 10 A
PV power regulation: MPPT

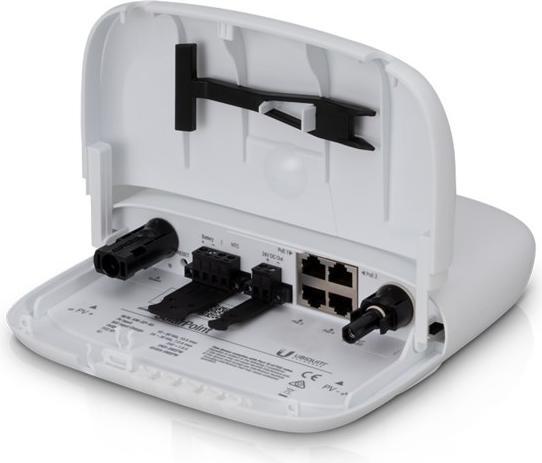

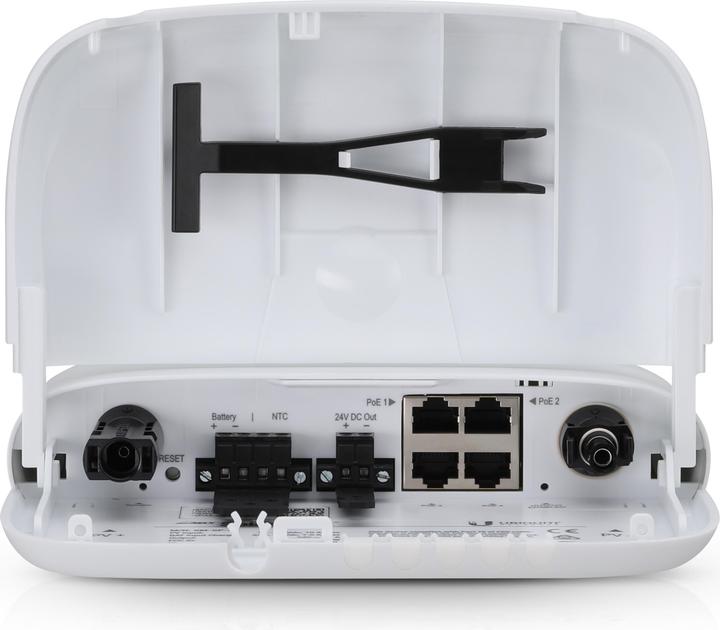

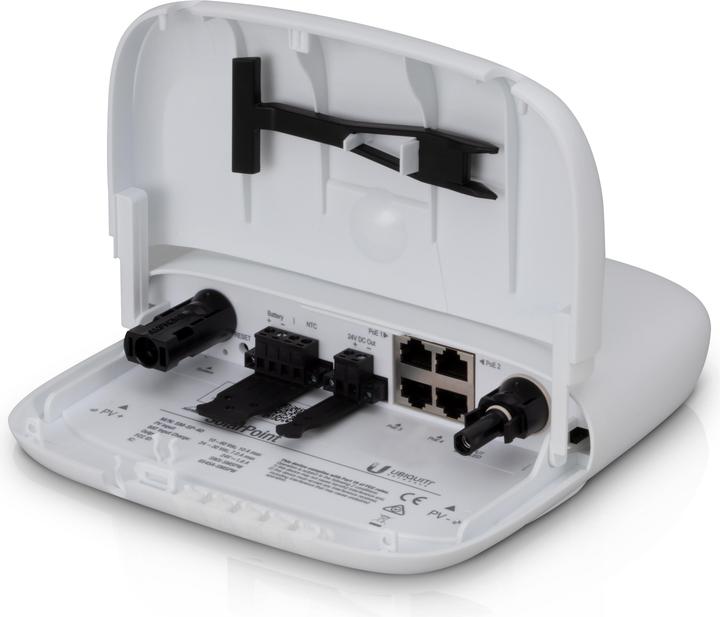

Output interfaces: 24 V DC passive PoE (Pins 4, 5+; 7, 8-); 24 V DC terminal block
Output voltage: Battery voltage limited to 24 V (overvoltage protection)
Max. output power: PoE: 17 W; DC output: 24 W; Total: max. 40 W
Battery type: 24 V SLA, AGM, Gel lead-acid battery
Boost voltage steps: 27.4 V, 28.2 V, 29.1 V, 30 V
Float charge voltage: 95% of the boost voltage
Max. charging current: 7 A
Under-voltage protection: 22 – 23.6 V software configurable; 22 V hardware protection; two priority levels for output shutdown
Operating temperature: -20°C to 50°C
Operating humidity: IPx4
Certifications: FCC, IC, CE.
