Ubiquiti Rocket M2 Power over Ethernet (PoE)

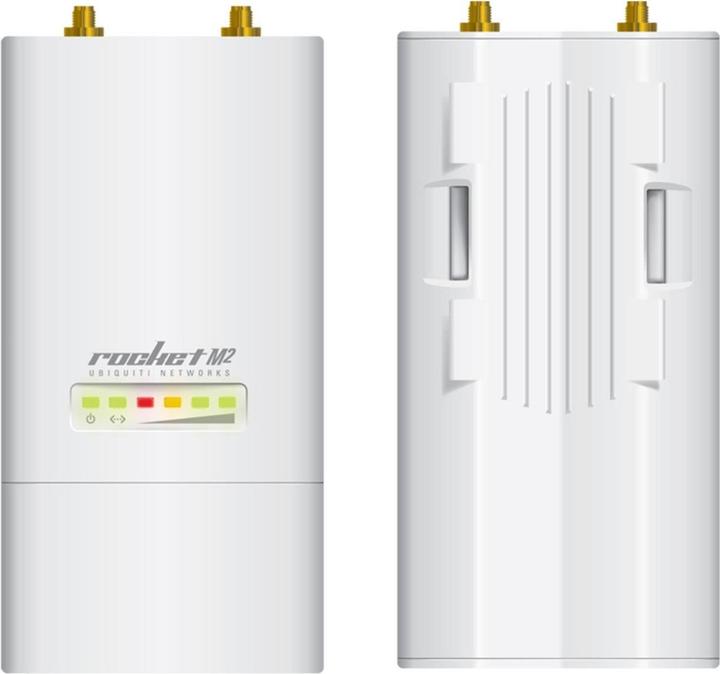

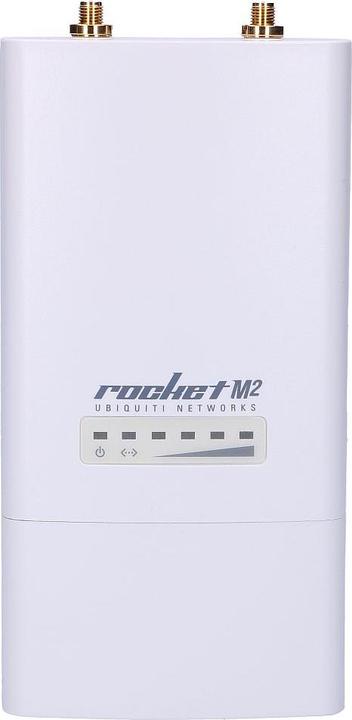

UBNT RocketM2 - 2,4 GHz Hi Power 2x2 MIMO AirMax TDMA BaseStation

The Rocket is a rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+ km) and breakthrough speed (150+ Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PtMP Airmax base-station applications.

Rocket M Seamlessly Integrates with AirMax BaseStation and Rocket Antennas

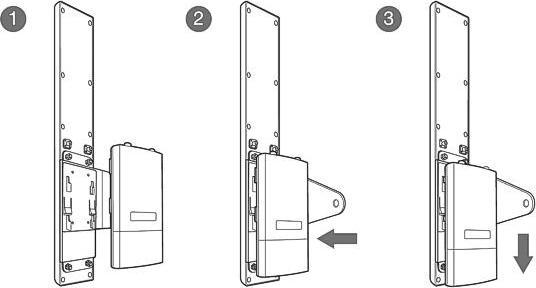

Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

AirOS V

Version 5 of Ubiquiti's airOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.

• Processor specs: Atheros MIPS 24KC, 400 MHz

• Memory information: 64 MB SDRAM, 8 MB Flash

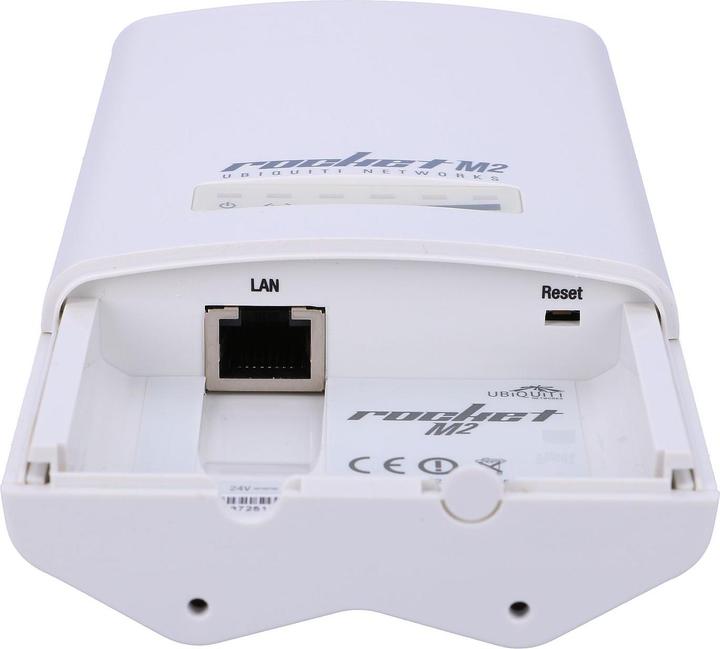

• Networking interface: 1x 10/100 BASE-TX (Cat. 5, RJ45) Ethernet interface

• Wireless approvals: FCC Part 15.247, IC RS210, CE

• RoHS compliance: yes

• Enclosure size: 16 cm length x 8 cm width x 3 cm height

• Weight: 0.5 kg

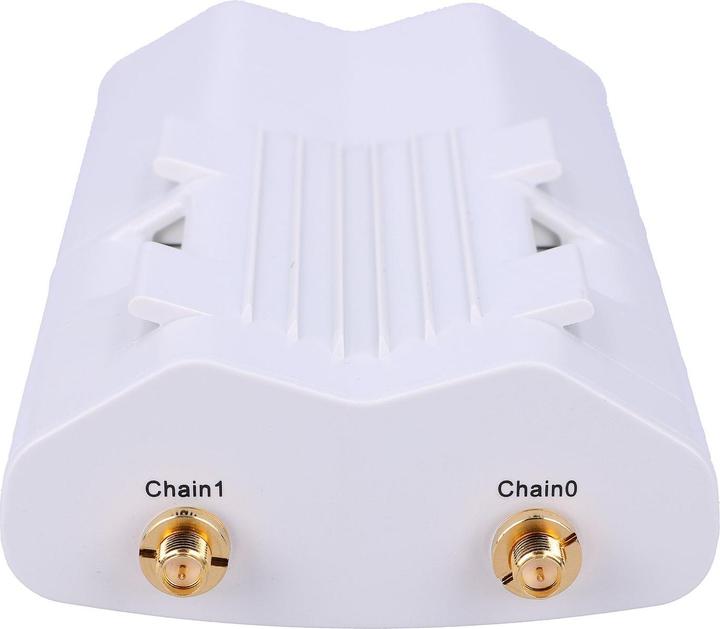

• RF connector: 2x RP-SMA (waterproof)

• Enclosure characteristics: Outdoor UV stabalized plastic

• Mounting kit: Pole mounting kit included

• Max. power consumption: 6.5 Watts

• Power supply: 24 V, 1 A PoE supply included

• Power method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)

• Operating temperature: -30°C to 75°C

• Operating humidity: 5 to 95 % condensing

• Shock and vibration: ETSI300-019-1.4

Compatible Antennas:

• AirMax Sector 2G-16-90

• AirMax Sector 2G-15-120

• Rocket Dish 2G-26.
