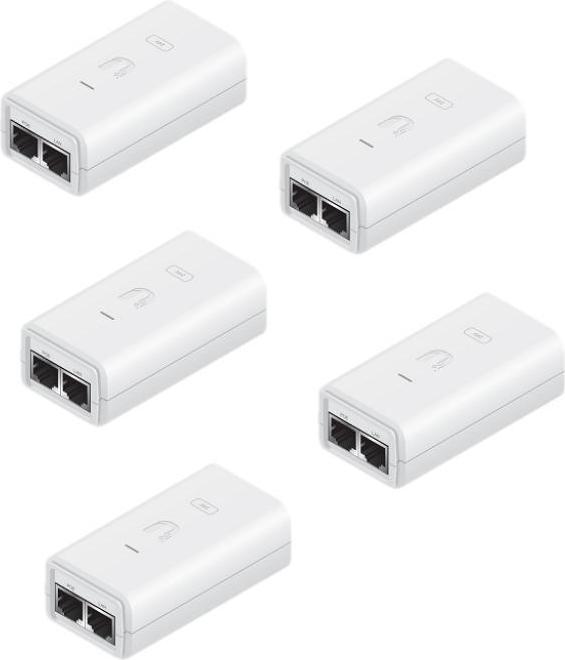

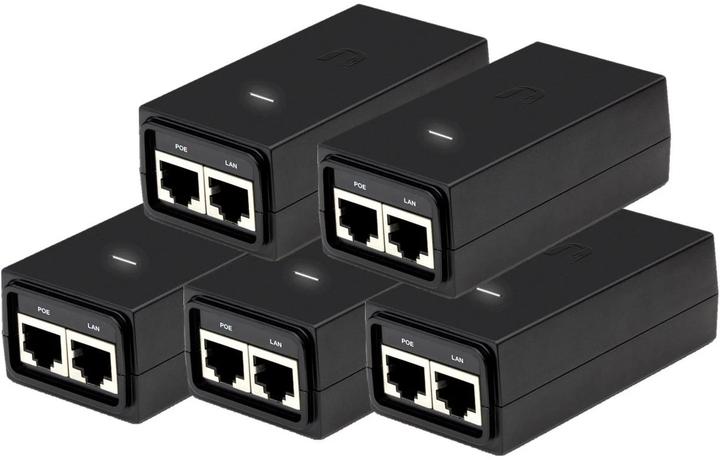

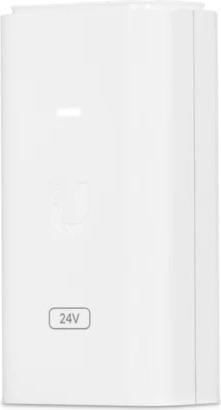

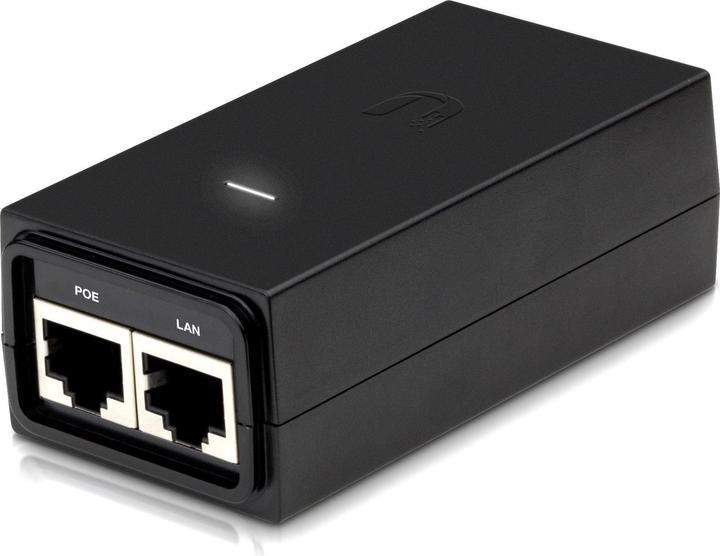

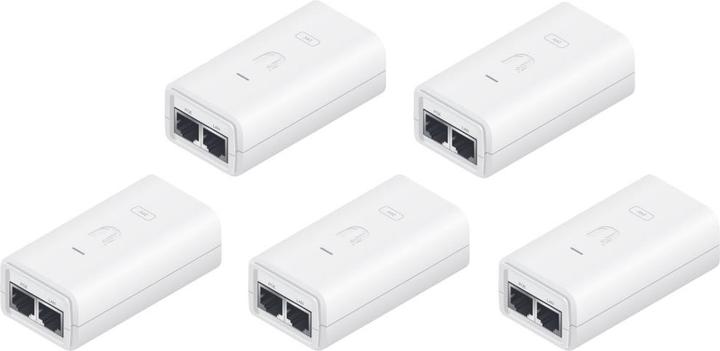

Ubiquiti Passive PoE GE Injector: 24V, 12W

POE-24-12W-5P - 24 V, 12 W Gigabit PoE Injector, 5-Pack

Please note: This is a 5-pack.

Provides Power-over-Ethernet (PoE) adapters to power a variety of products. The PoE adapters are compatible with most PoE devices, including: airFiber, airMAX, EdgeMAX, mFi, UniFi AP, UniFi Video/airVision.

Device Protection
PoE adapters are highly reliable and provide grounding and surge protection when used with TOUGHCable to protect against electrostatic discharge (ESD).

Convenient Wall Mounting
The 24 V, 0.5 A models, POE-24-12W and POE-24-12W-G, can be mounted on the wall with optional wall brackets.

Seamless airGateway Compatibility
The 15 V, 0.8 A and 24 V, 0.5 A models, POE-15-12W, POE-24-12W, and POE-24-12W-G, work with the airGateway to bridge airMAX connections with Wi-Fi at customer locations.

Please note: This is a 5-pack.
Gigabit LAN Port: Yes
Output Voltage: 24 V DC at 0.5 A
Input Voltage: 90-260 VAC at 47-63 Hz
Input Current: 0.3 A at 120 V AC, 0.2 A at 230 V AC
Inrush Current: Efficiency: 70+ %
Output Ripple: 1 % max.
Switching Frequency: 200 kHz
Line Regulation: +/-0.5 %
Load Regulation: +/-1 %
Operating Temperature: -10 °C to +60 °C
Storage Temperature: -20 °C to +85 °C
Size (L x W x H): 85 x 55 x 33 mm
Weight: 4 oz.
AC Connection: IEC-320 C6
Data IN/POE: RJ45 Shielded Socket
80 % Power Indicator: Power LED changes color
Surge Protection: Common Mode
Clamp Protection: 11 V Data, 77.5 V Power
Max Voltage Discharge: 1200 A (8/20 µs) Power
Peak Pulse Current: 36 A (10/1000 µs Data)
Shunt Capacity: Response Time: Compliance: UL, EN55022 (CISPR22) Class B, meets CE
No Remote Reset Button.
