Ubiquiti Outdoor Media Converter F-POE-G2

Ubiquiti F-POE-G2 - Optical Data Transport for Outdoor PoE Devices

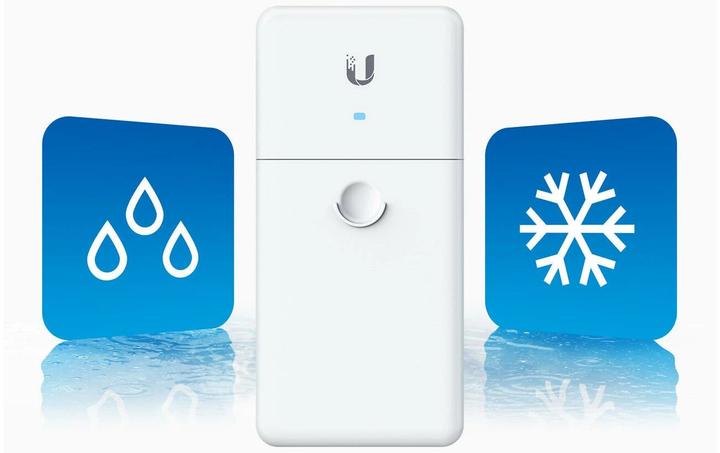

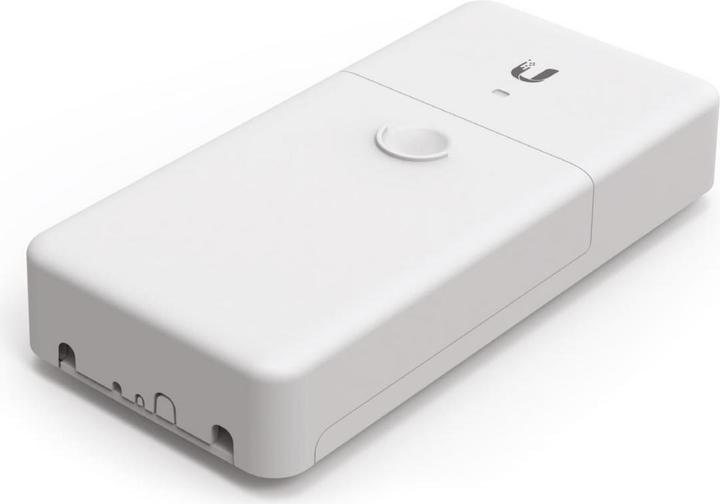

Overcome PoE limitations with the next-generation FiberPoE, model F-POE-G2. The FiberPoE Gen 2 is a cost-effective solution for outdoor deployments that need to cover long distances to reach the PoE device. Deployments with the FiberPoE Gen 2 offer significant EMI and ESD protection compared to typical PoE installations. Additionally, the FiberPoE Gen 2 features a robust, weatherproof form factor and enhanced surge protection.

Separate Data and Power Transport

PoE is ideal for indoor installations or temporary setups. However, for outdoor installations, PoE becomes susceptible to EMI and is limited to 100 meters with correlated power loss. With the FiberPoE Gen 2, data and power are transmitted over separate cables, significantly improving data integrity and allowing for much longer cable runs.

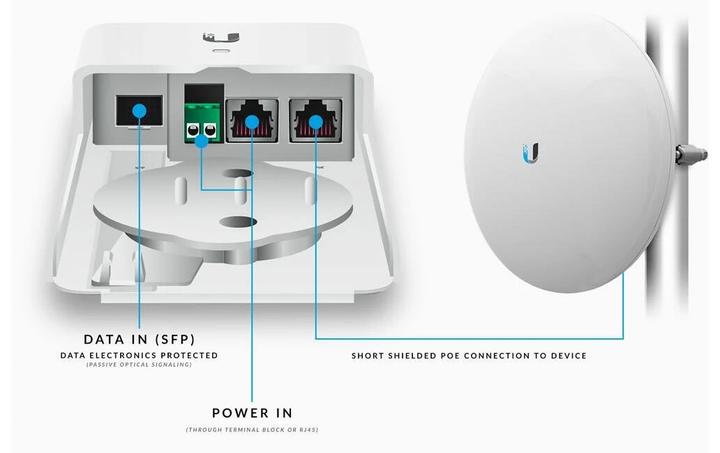

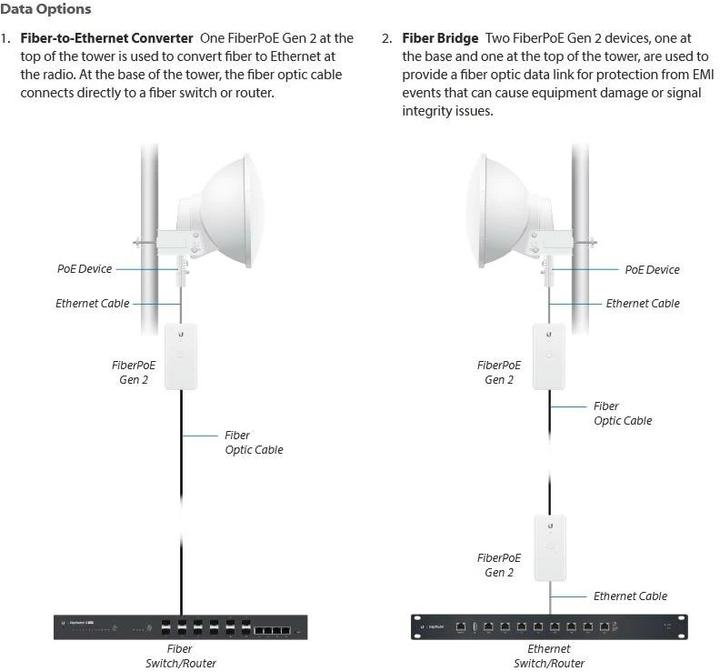

The FiberPoE Gen 2 enables bidirectional gigabit data transport between twisted-pair Ethernet cables and fiber optic cables, injecting DC power into the Ethernet cable for passive PoE. Use a FiberPoE Gen 2 device as a fiber-to-Ethernet converter or a pair of FiberPoE Gen 2 devices to create a fiber bridge.

Technical Details

• Dimensions: 196.4 x 93.5 x 32.4 mm
• Weight: 288 g
• Housing: White Polycarbonate

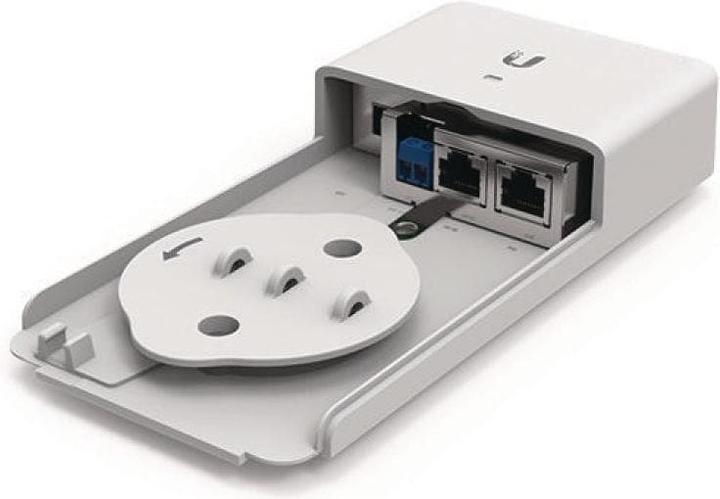

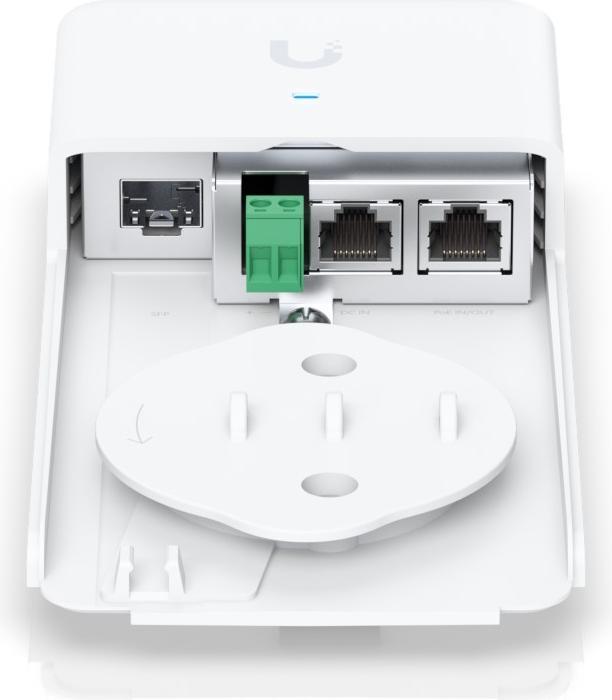

• Interfaces:

(1) 1 Gbit/s SFP port
(1) DC terminal block
(1) DC injection RJ45 port
(1) Ethernet PoE port with 1000 MBit/s

• Typical Power Consumption: 1.5 W

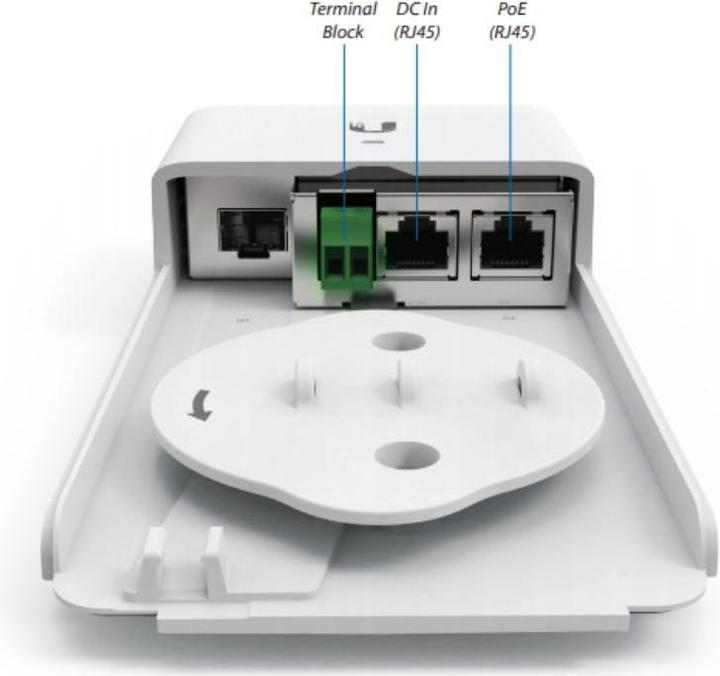

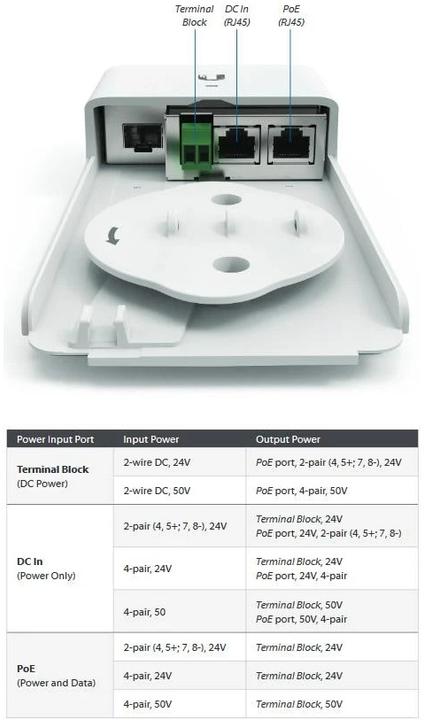

Power Method

• DC terminal block, 2-wire, 24 V DC or 50 V DC
• DC In RJ45 port, 2-pair (4, 5+; 7, 8-), (24 V DC input) or 4-pair (24 V DC or 50 V DC input)
• PoE RJ45 port, 2-pair (4, 5+; 7, 8-), (24 V DC input) or 4-pair (24 V DC or 50 V DC input).
