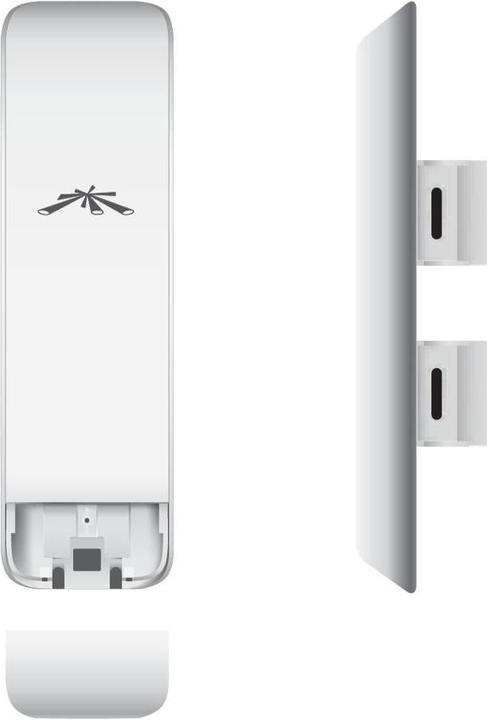

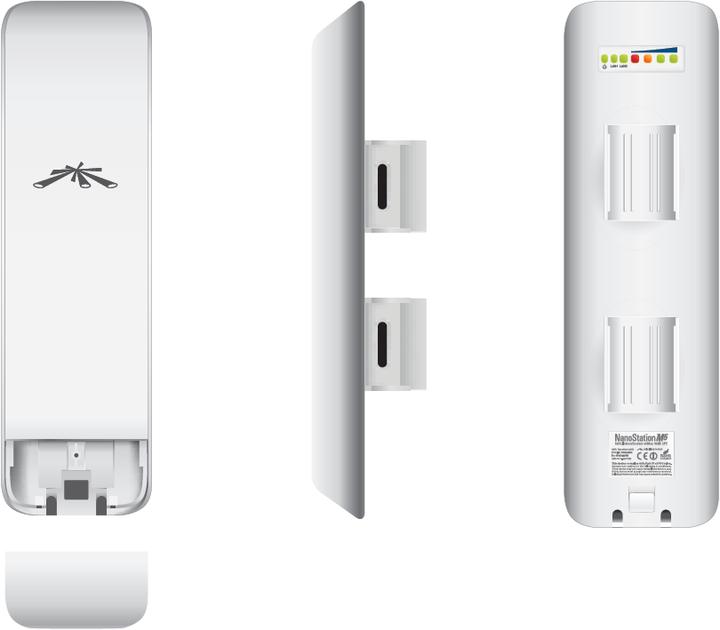

Ubiquiti NanoStation M NSM5

150 Mbit/s
5Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

The Ubiquiti NanoStation M NSM5 is a powerful outdoor access point designed to provide Wi-Fi in challenging environments. With a transmission rate of up to 300 Mbps and a frequency band of 5 GHz, this device offers a reliable and fast connection. The NanoStation M5 utilizes 2x2 MIMO technology to maximize range and signal stability, making it ideal for long-distance connections. With a maximum range of up to 15 kilometers, this device is excellent for networking buildings or for use in rural areas. Installation is straightforward and can be done on walls, while the PoE capability allows for flexible power supply. The NanoStation M5 is thus a versatile solution for anyone needing robust and powerful outdoor Wi-Fi coverage.

  • 2x2 MIMO technology for improved signal stability
  • Maximum range of up to 15 kilometers
  • PoE capable for flexible power supply

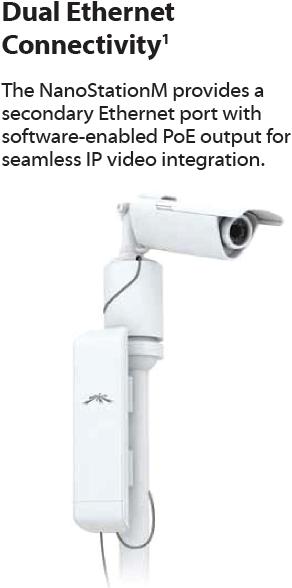

  • Two RJ45/LAN ports for versatile connectivity options
  • Rugged construction for outdoor use.

Key specifications

Wi-Fi standard
Wi-Fi 5 / 802.11ac
Wi-Fi frequency band
Single band
PoE Standard
Proprietary 24V
Operating modes
The Long Range Bridge
Area of application
Outdoor
Number of RJ45/LAN ports
2
Max. port speed
100 Mbit/s
Documents
Technical data sheet.pdf
Item number
2488589

General information

Manufacturer
Ubiquiti
Category
Access points
Manufacturer no.
NSM5
Release date
24.4.2014
External links
Manufacturer's site (en)
May include power adapter
No

Access point properties

Operating modes
The Long Range Bridge
Antenna gain
16 dB
Long range coverage
15 km
Number of RJ45/LAN ports
2
Max. port speed
100 Mbit/s
Access Point Functions
PoE capable

Wi-Fi standard

Wi-Fi standard
Wi-Fi 5 / 802.11ac
5 GHz transfer rate
150 Mbit/s
Wi-Fi frequency band
Single band

Application range

Area of application
Outdoor
Installation place
Rod, Wall

Power supply

Power supply
PoE
PoE Standard
Proprietary 24V
Power consumption
8 W

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
PoE adapter 24V proprietary, Without CH power cable

Product dimensions

Length
29.40 cm
Width
8 cm
Height
3.10 cm
Weight
400 g

Package dimensions

Length
9.40 cm
Width
8 cm
Height
29.80 cm
Weight
662 g
