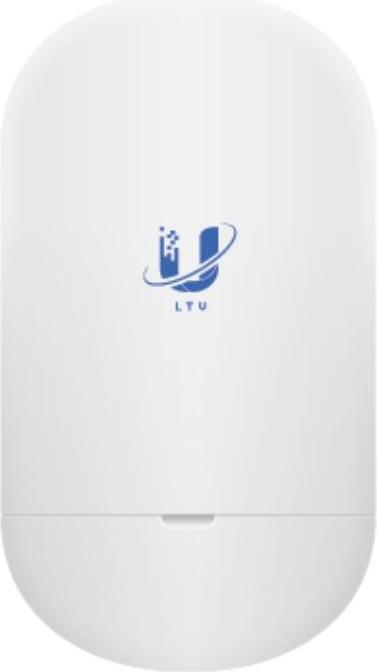

Ubiquiti LTU-Lite

LTU-Lite - 5 GHz PtMP LTU Client Radio

With an integrated antenna, the LTU-Lite is a compact, cost-effective client station that utilizes the 5 GHz frequency band. It operates as CPE (Customer Premises Equipment) in a Point-to-MultiPoint (PtMP) environment with the LTU-Rocket as the base station.

Proprietary LTU Technology
Based on Ubiquiti's LTU technology, the LTU-Lite is not limited by the constraints of standard 802.11 Wi-Fi technology. Its custom LTU chip and radio architecture provide a true TCP/IP throughput of up to 600+ Mbps and modulation rates of up to 4096 QAM.

CPE Modes
The LTU-Lite supports both Bridged mode and built-in hardware NAT router mode to suit your specific deployment needs.

Frequency Separation
The LTU-Lite can use different frequencies for TX and RX to avoid interference.

Convenient Mounting Options
The LTU-Lite is designed for quick yet reliable mounting on a pole or wall. All necessary mounting hardware is included.

Flexibility in Channel Width
The flexibility of channel width allows independent TX and RX channel frequency configurations at any point in the frequency band to avoid local interference. Channel width options include: 10 MHz, 20 MHz, 30 MHz, 40 MHz, 50 MHz, up to 100 MHz.

Automatic Power Adjustments
By default, the "Auto Output Power" option of the LTU-Lite allows the output power (EIRP) to be set to the appropriate value.

Signal Control
The TX output power of the LTU-Lite is controlled by the target TX output power of the AP. A PtMP network can manage signal levels to improve network stability and achieve optimal wireless performance with the highest possible modulation.

Convenient Configuration
To manage the LTU-Lite, you have two options: the...
