Ubiquiti Card Reader UniFi Access UA-Readerlite
Key cardMore than 10 items in stock at third-party supplier
Product details

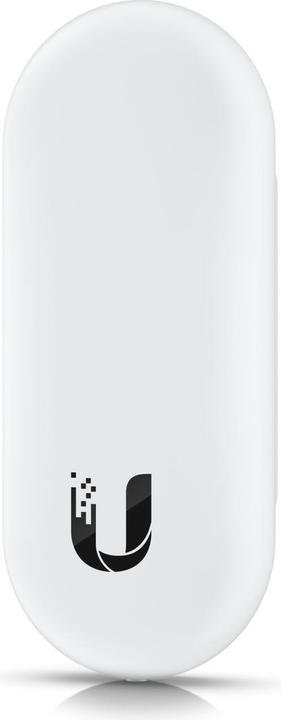

UniFi Access Reader Lite, modern NFC and Bluetooth reader
The UniFi Access Reader Lite is designed for convenient use and secure access. The PoE-powered reader is easy to install and supports the latest NFC security standards, including AES-128 encrypted MIFARE DESFire. Door unlocking is quick and secure with an NFC card or a mobile app.
Mechanical
Dimensions: 94.91 x 40.00 x 31.10 mm (3.74 x 1.57 x 1.22")
Weight: 65 g (2.29 oz)
Housing material: Polycarbonate
Mounting options: Wall mount
Protection class: IP54
Hardware
Network interface: 10/100 MbE
Max. power consumption: 6 W
Power supply method: PoE
Button: (1) Factory reset
LEDs: White/Blue
Connectivity: Ethernet, BLE 4.1
NFC frequency: 13.56 MHz
NFC reading range: <30 mm
NFC standards: ISO 14443A, 14443B, 15693
NFC technology: NFC Tag 1, 2, 3, 4, 5; MIFARE Classic; MIFARE Plus; MIFARE Ultralight; MIFARE DESFire
Operating temperature: -40°C to 40°C (-40°F to 104°F)
Operating humidity: 5 to 90% non-condensing
Certifications: CE, FCC, IC.
Access system type | Wall reader |
Closing mechanism | Key card |
Power supply | PoE |
Item number | 22490794 |
Manufacturer | Ubiquiti |
Category | Access control |
Manufacturer no. | UA-READERLITE |
Release date | 27.9.2022 |
External links |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | Polycarbonate |
Access system type | Wall reader |
Closing mechanism | Key card |
mounting style | Built-in |
Application range | Indoor |
Protection type (IP code) | IP54 |
Requires Smart Home Hub | No |
Power supply | PoE |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1x UniFi Access Reader Lite |
Length | 3.11 cm |
Width | 4 cm |
Height | 9.49 cm |
Weight | 270 g |
Length | 15 cm |
Width | 9 cm |
Height | 6 cm |
Weight | 260 g |
