Turk Magnetic field sensor BIM-IKT-AP6X-H1141
0.03 mfree shipping
Turck Magnetic Field Sensor BIM-IKT-AP6X-H1141
Manufacturer: Turck
Designation: Magnetic field sensor DC, PNP, NO
Type: BIM-IKT-AP6X-H1141
Actuation type: Magnetic
Electrical connection type: Plug connection
Switching output type: PNP

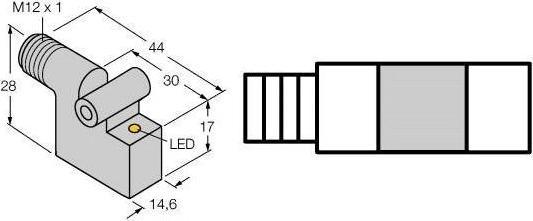

Sensor width: 14.6 mm
Sensor height: 28 mm
Sensor length: 30 mm
Housing design: Rectangular
Housing material: Other
Max. output current at safe output: 200 mA
Ambient temperature: -25 to 70 °C
Rated supply voltage for DC: 10 to 30 V
Voltage type: DC
Cross/short-circuit detection possible: Yes
Protection class (IP): IP67
Turck Magnetic Field Sensor BIM-IKT-AP6X-H1141: additional details Magnetic field sensor for pneumatic cylinders.
Item number | 23022570 |
Manufacturer | Turk |
Category | Network cables |
Manufacturer no. | 46210 |
Release date | 7.11.2022 |
Material | Other |
Connection A | M12 |
Connection B | M12 |
Cable connection | Connection (m/m) |
Temperature range | -25 - 70 ° C |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1030VDC, Closers, cuboid, DC 3Dire, for pneumatic cylinders, GDZn, Height 28 mm, M12 1 BIM-IKT-AP6X-H1141, Magnetic field sensor, Magneto-inductive sensor, Metal, Operating voltage 1030 VDC, Plug connectors, PNP output |
Length | 0.03 m |
Width | 14.60 mm |
