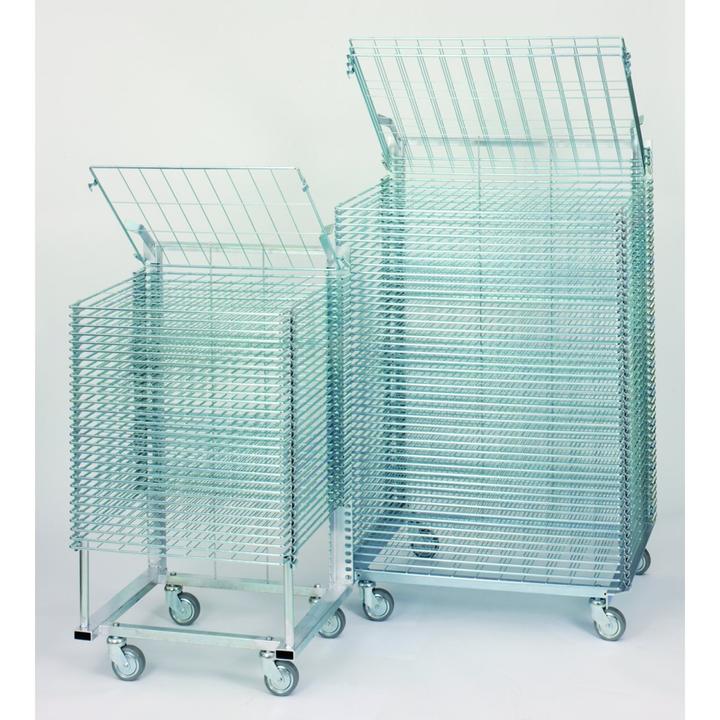

Tschudi Büromaschinen Stack dryer / drying rack, size 90 x 126 cm, 30 / 50 trays 30 trays

Stack dryer / drying rack, size 90 x 126 cm, 30 / 50 racks. Professional stack dryer in the size of 90 x 126 cm. Stack dryer model II, with 30 / 50 racks. Professional stack dryer on large, solid wheels. Ideal for schools, workshops, screen printing companies, etc. The welded grids of the drying rack consist of round 3 mm thick crossbars spaced 75 mm apart. The 4 mm thick longitudinal bars spaced 200 mm apart provide high stability for our stack dryers / drying racks. This ensures easy insertion and sliding of the printed materials. All our stack dryers have a consistent opening angle of 45° for all racks. Locking bars prevent inserted sheets from slipping. The spacers are made of steel. Swiveling wheels with roller bearings (up to 80 °C) allow for good running and turning properties of the fully loaded stack dryer. When used in curing ovens, we supply all drying racks (for an additional charge) with heat-resistant wheels up to a maximum of 180 °C, and other track widths are available upon request.

Technical data:
Loading area 90 x 126 cm
Footprint 100 x 135 cm
Rack spacing: 25 mm
Clearance: 15 mm
Grid opening: 75 x 200 mm
Height of the top rack: 118 cm (30 racks) / 140 cm (50 racks)
Total height closed: 133 cm (30 racks) / 158 cm (50 racks)
Total height opened: 177 cm (30 racks) / 203 cm (50 racks)
Grid weight: 98 kg (30 racks) / 140 kg (50 racks)

Please ensure that access routes (e.g., doors/lifts) are sufficiently wide, as the stack dryer cannot be disassembled! Price includes delivery!.
