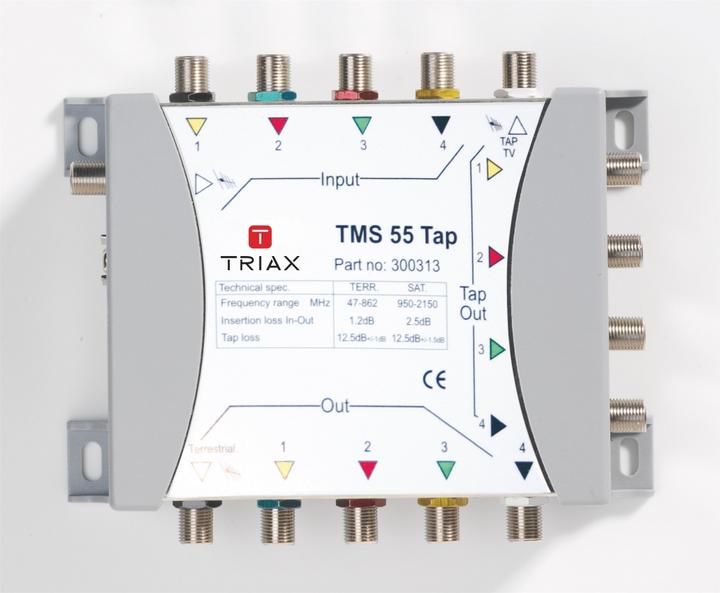

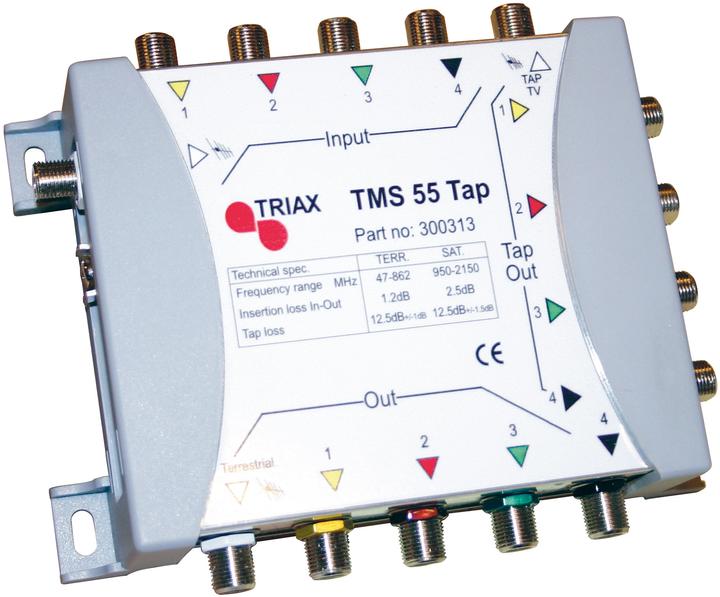

Triax TMS 55-12 TAP satellite block distribution 5 inputs 5 outputs

For 5-way multiswitch systems. The TMS 55-15 splitter complements the CKR 5xx/TMS 5xxP multiswitches in the cascade (as does the TMS 55 Amp). Key features: Number of inputs: 5 inputs, Number of outputs: 5 outputs, Input frequency range (satellite): 950 - 2150 MHz, Input frequency range (terrestrial): 47 - 862 MHz, Output frequency range (satellite): 950 - 2150 MHz, Output frequency range (terrestrial): 47 - 862 MHz, Insertion loss (satellite): 1.5 dB, Insertion loss (terrestrial): 1.5 dB, Output impedance: 75 Ohm, RF connection type: F, Operating conditions: Operating temperature range: 0 - 55 °C, Weight and dimensions: Weight: 430 g, Package weight: 680 g.
