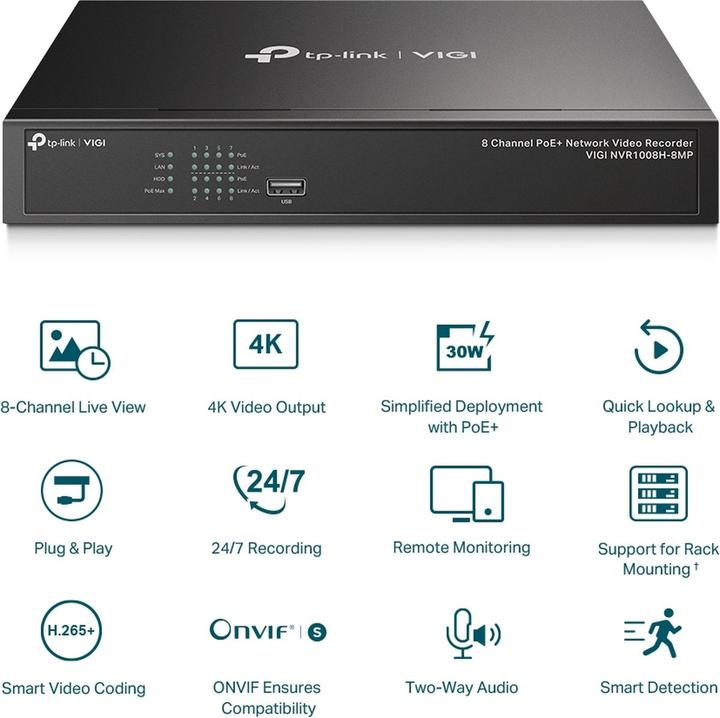

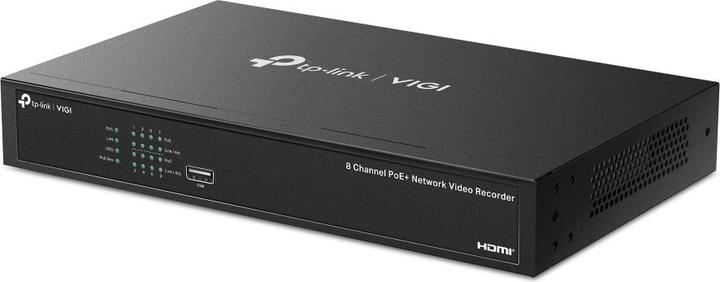

TP-Link VIGI NVR1008H-8MP - NVR, 8 channels, 8x PoE

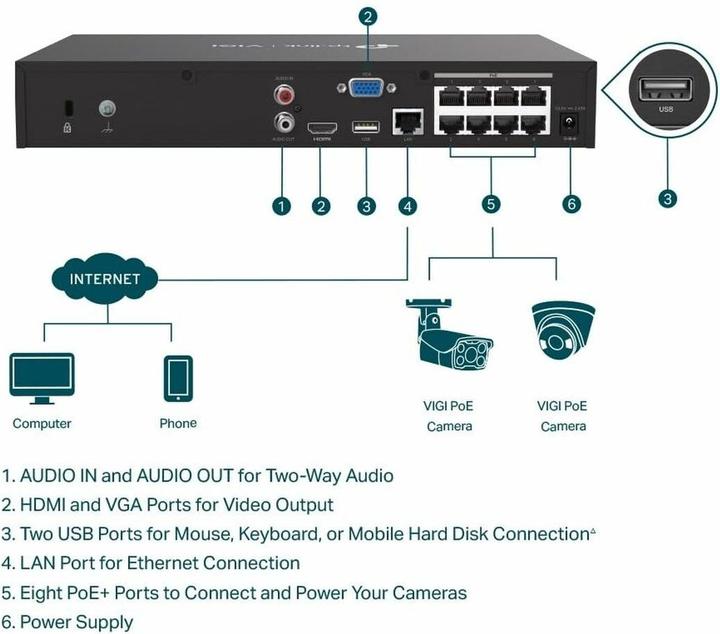

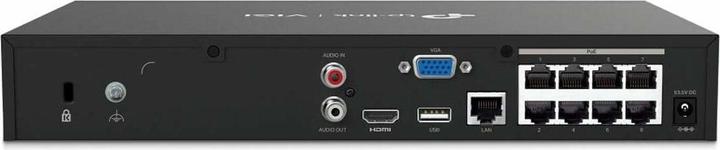

Recording device from the TP-Link brand for recording and powering up to 8 IP cameras. It can record camera footage at a maximum resolution of up to 8 MP. The device connects to the network with one 10/100 Mbps LAN port, while the other 8 ports support 802.3af/at PoE with a total PoE budget of 113W. The connectors include 2 USB ports for connecting a keyboard and mouse, audio input/output, a 4K HDMI port, and a VGA connector. The maximum consumption of the recorder itself, without HDD and connected cameras, is 4.8 W.

Key Features

• 8 channels with 8MP resolution
• 1× SATA (up to 10 TB)

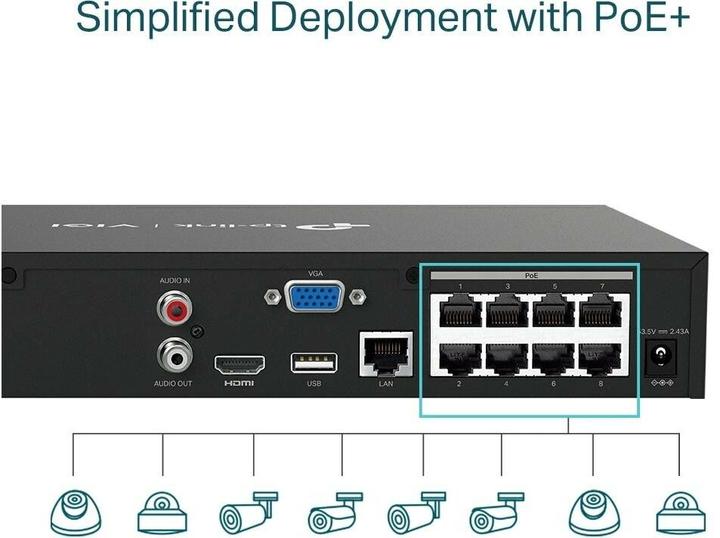

• 9× 10/100 Mbps LAN - 8× PoE (802.3af/at), PoE budget 113W
• 2x USB 2.0

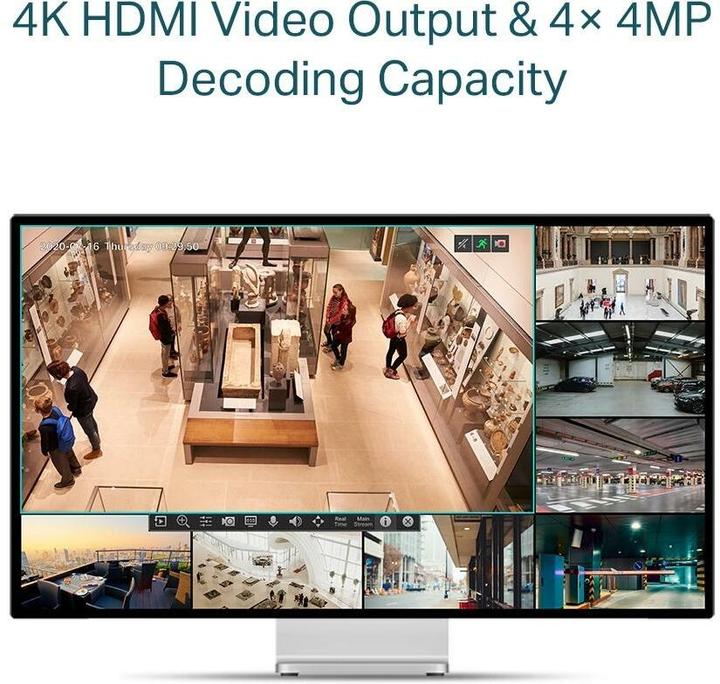

• 1x 4K HDMI (3840 × 2160px) + 1x VGA
• Codec support: H.265+/H.265/ H.264+/H.264
• Wide camera support thanks to Onvif compatibility
• Remote management and monitoring through the VIGI application for iOS and Android
• Two-way audio - With voice intercom support, have a two-way conversation and monitor your image from anywhere.
• Possibility of installation in a rack, with the purchase of a rack mount attachment

Package contents

• Device
• Power adapter 53.5 V/2.43 A
• Mouse
• Screws for fixing the HDD


• Max. recording resolution: 8MP
• Connectors and Interfaces
• Number of SATA connectors: 1
• VGA connector: Yes
• HDMI interface (resolution) [pixels]: 3840 x 2160
• Audio: Yes
• LAN speed: (9) 10/100 Mbps
• USB ports 2.0: 2
• HDMI interface: Yes

Power

• PoE-Out standards: 802.3af, 802.3at
• PoE Out ports: 8
• PoE budget [W]: 113
• Max. power consumption [W]: 4.8
• Power via connector/terminal: 53.5V/2.43A

Physical characteristics

• Design: Desktop
• Operating temperature [°C]: -10 up to 55
• Width [mm]: 294
• Height [mm]: 44
• Depth [mm]: 180

Hardware

• Number of supported IP cameras: 8
• Number of supported HDD: 1
• Supported HDD capacity [TB]: 10
• Incoming bandwidth [Mb/s]: 80
• Outgoing bandwidth [Mb/s]: 60

Compression standard

• Video compression: H.264, ...
