TP-Link VIGI C330(6MM) - Bullet camera, 3MP, 6mm, Full-Color

The VIGI C330 (6 mm) is a 3-megapixel outdoor bullet camera from TP-Link featuring a fixed 6 mm lens, white light, and IR illumination up to a distance of 30 meters, along with an Ethernet port that supports PoE. The camera has a maximum resolution of 2304 × 1296 px (at 30 fps), a viewing angle of 55°, 2 independent streams, IP67 protection, a digital WDR sensor, a built-in audio microphone, and supports ONVIF, H.264(+), and H.265(+) codecs. Thanks to its higher sensitivity of 0.005 Lux, the camera supports full-color images throughout the night.

The camera can be powered via a 12V DC connection or through 802.3af PoE using an Ethernet cable.

Main Features

• 3MP resolution
• 6mm lens, 55° viewing angle
• IR and white light up to 30m
• DWDR and 3D DNR support
• (1) 10/100 Mbps LAN
• IP67 water protection
• Power supply via 802.3af PoE or 12V DC socket, max. consumption 5.4W
• 24h color image (Full-Color): Thanks to the large aperture lens, high-sensitivity sensor, and additional white LED lights, you get color details 24 hours a day, even in black-and-white images.
• Differentiation of people and vehicles: Distinguishes people and vehicles from other objects, allowing for more accurate event notifications.
• Intelligent detection: Receive notifications and check the channels when someone crosses the boundary or enters the designated area.

Package Contents

• Device
• Screws
• Mounting accessories

Camera

• WDR: Digital
• Lens type: Fixed
• Lens [mm]: 6 (fixed)
• Illumination: IR, white light
• Illumination range [m]: 30
• Viewing angle [°]: 55
• Day/Night mode: Color
• Minimum illumination [Lux]: 0.005
• Image sensor ["]: 1/2.8


• Resolution: 3MP
• Max. resolution [Pixels]: 2304x1296

Connections and Interfaces

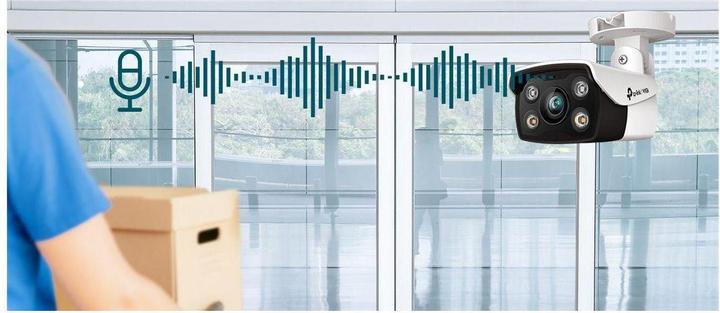

• Audio: Microphone.
