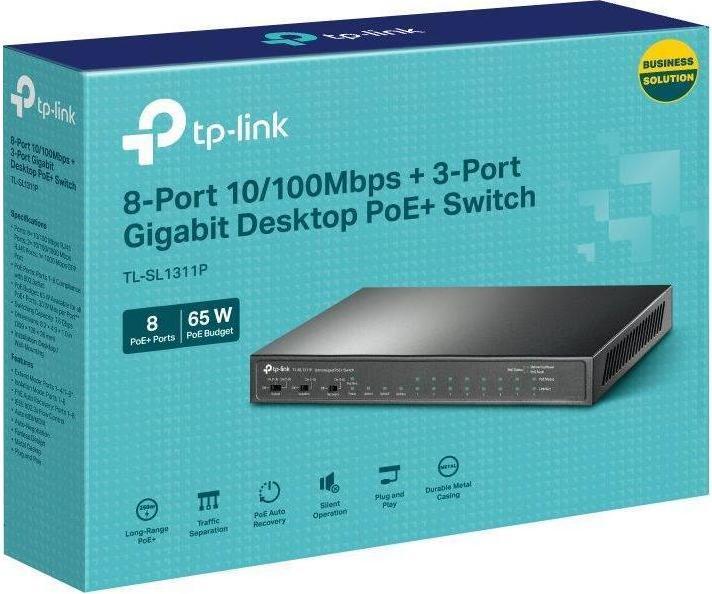

TP-Link TL-SL1311P - PoE switch, 8x PoE

The Fast Ethernet PoE Switch with Gigabit uplinks TL-SL1311P is ideal for small businesses, households, and single-family homes to power up to 8 cameras or WiFi access points with low consumption. The switch offers quiet, fanless operation with 8x 10/100 Mbps, 2x 10/100/1000 Mbps LAN, and 1x Gigabit SFP. It features 8 Ethernet ports with PoE functionality (802.3af/at, 30W/port) and a total PoE budget of 65W, as well as power supply via a DC connector. In addition to the basic functions, the switch allows activation of 3 features via the buttons on the front:

• Extend: possible use up to a distance of 250m by reducing the line to 10 Mbps
• Isolation: isolation of individual ports
• Recovery: ensures stable operation of PoE devices by automatically restarting unresponsive devices

Package contents:

• Device
• Power supply 53.5V / 1.31A

Connections and interfaces:

• LAN speed: 8x 10/100Mbps + 2x 10/100/1000Mbps
• Optical interfaces: 1x 1000Mbps

Power supply:

• Power supply type: DC connector
• PoE type: PoE-Out (only)
• PoE-Out standards: 802.3af, 802.3at
• PoE-Out ports: 8
• PoE budget: 65W
• Long-range PoE - up to 250m: Yes
• Max. power consumption: 5.6W
• Power supply via plug/terminal: 53.5V/1.31A

Physical properties:

• Design: Desktop
• Fan: fanless
• Housing design: Metal
• Operating temperature: 0 to 40 °C
• Width: 209 mm
• Height: 26 mm
• Depth: 126 mm

General:

• Processing capacity: 7.6 Gbps
• MAC address table: 2000
• Jumbo Frame: 16000 Bytes
• Packet forwarding rate: 5.6 Mpps.
