TP-Link SX3016F - JetStream switch

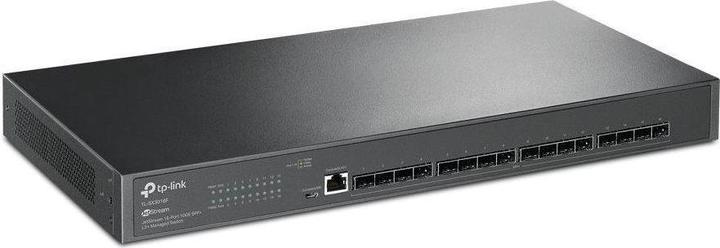

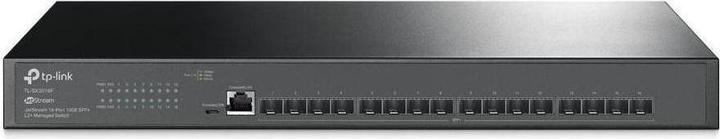

The TL-SX3016F is an optical switch for a 19" rack with a height of 1U, featuring 16x 1G/10G SFP+ ports, two console ports (RJ45 and microUSB), and two redundant built-in power supplies to enhance the reliability of the entire switch. For management and monitoring, it is possible to use a common access through a web interface and protocols such as CLI, SNMP, RMO, as well as centralized cloud management and a software controller. The Omada hardware controller (OC200 / OC300) is also supported.

The switch offers high-performance routing based on IP, MAC, TCP, or UDP. All of this is combined with advanced security strategies (IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication). With all these advanced features, the Gigabit L2+ JetStream switch is the ideal choice for SMB solutions.

Delivery includes:

• Device
• (2) Power cables
• 19" rack mounts

Connections and interfaces:

• Optical interfaces: (16) 1G/10Gbps
• Serial port: micro USB, RJ45

Power supply:

• Power type: AC power (230V)
• Redundant power supply: Yes
• Max. power consumption [W]: 33
• Power supply via plug/terminal: 230V AC

Physical characteristics:

• Design: Rackmount
• Fan: (1) 40 x 40 mm
• Housing design: Metal
• Operating temperature [°C]: 0 to 45
• Width [mm]: 440
• Height [mm]: 44
• Depth [mm]: 220

General:

• Switching capacity [Gbps]: 320
• MAC address table: 32000
• Jumbo frame [Bytes]: 9000
• Packet forwarding rate [Mpps]: 238.1

Software:

• Web management: Yes
• Management: Web management, Omada Controller, SSH, Telnet
• Features: VLAN, QoS, DHCP snooping
• Default IP address: 192.168.0.1
• Default login and password: admin / admin.
