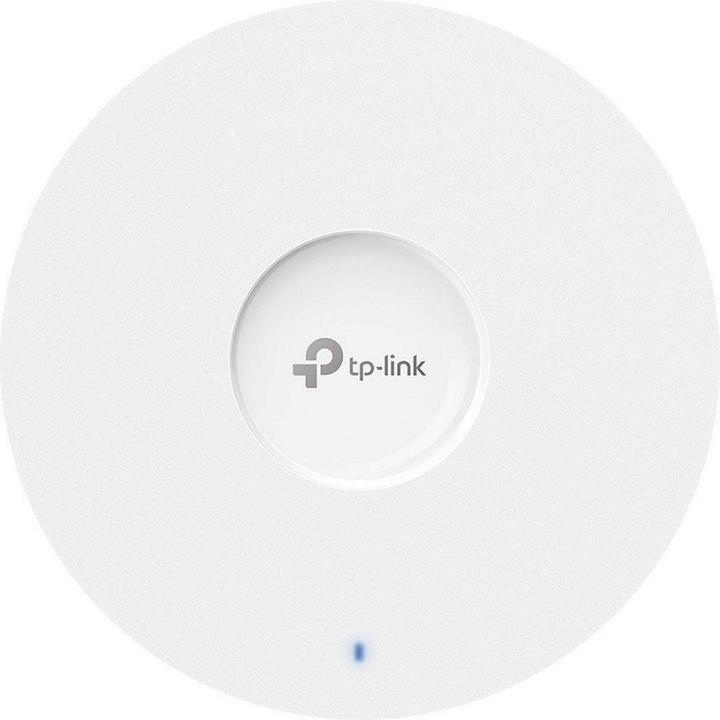

TP-Link EAP683 UR - Omada AX6000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point

A well-equipped access point from the EAP series with roaming capabilities, supporting Wi-Fi 6 technology and utilizing a dual-band Wi-Fi network that easily achieves speeds of up to 4804 + 1148 Mbps in both bands thanks to 4x4 MU-MIMO technology. A 2.5 Gbps LAN port with PoE power support and a 12 V DC socket ensures sufficient bandwidth. Naturally, WPA3 encryption for wireless traffic, beamforming, MU-MIMO, OFDMA, 160 MHz channels, and Omada Mesh technologies are supported.

Hundreds of EAPs can be easily managed and monitored from a single location. The TP-Link Omada Controller Software provides an intuitive management interface. You can control and map the entire network from any connected PC. There are no additional costs, and no special training is required. Managing enterprise Wi-Fi has never been so efficient and cost-effective.

The captive portal ensures that only authorized guests can use the network, providing devices with a convenient, user-friendly authentication method for Wi-Fi access. The additional SMS and Facebook authentication further simplifies the captive portal, enhancing connectivity and boosting your business.

Package Contents

• EAP683 UR device
• Ceiling mount
• Mounting kit

Technical Parameters
Wireless Features

• Maximum Modulation: 1024 QAM
• Radio Frequency: 2.4 + 5 GHz (Dual-band)
• Wi-Fi Standards: 802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax
• MU-MIMO: Yes
• Transmission Speed – 5 GHz [Mbps]: 4804
• Transmission Speed – 2.4 GHz [Mbps]: 1148
• Transmit Power 2.4 GHz [dBm]: 20
• Transmit Power 5 GHz [dBm]: 28
• 2.4 GHz MIMO: 4 x 4
• 5 GHz MIMO: 4 x 4
• Antenna Type:...
