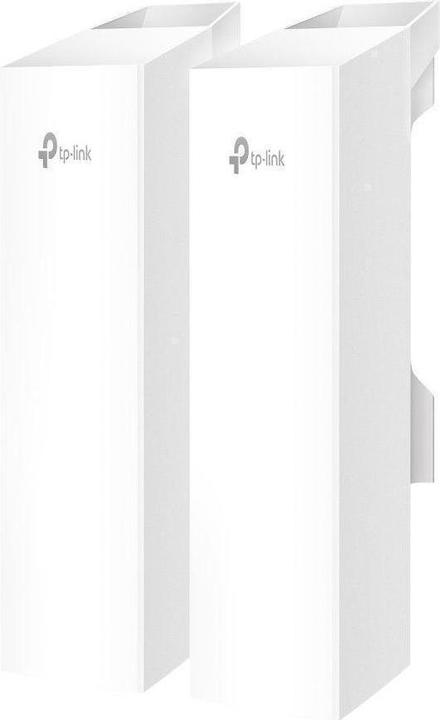

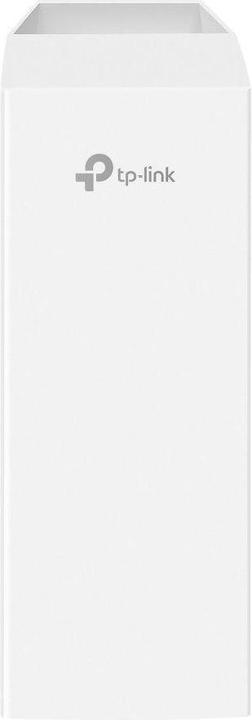

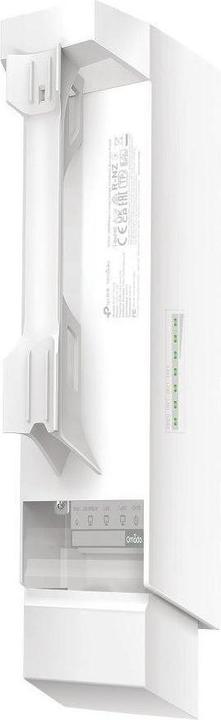

TP-Link EAP215-BRIDGE KIT - Omada Wireless Bridge with long range indoor/outdoor AP

Efficient centralised network management
Thanks to Omada's controller software, small and medium-sized businesses can control hundreds of indoor and outdoor access points from a single location. This is network management as it should be - efficient and intuitive.

Key features

• 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
• Ideal for long-distance wireless transmission up to 5 km.
• Auto-pairing and agile LEDs for efficient deployment.

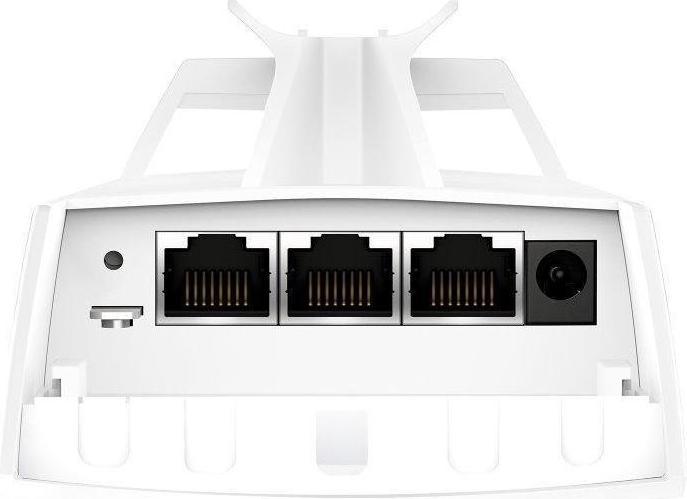

• 3 Gigabit Ethernet ports for more high-speed IP camera connections.
• Supports Omada SDN for remote and centralised management.
• Weatherproof IP65 housing and 6kV lightning protection for all-weather performance.
• Supports Passive PoE for flexible use (adapter included).

Package contents

• 2 devices
• 2 Passive PoE adapters
• 2 power cables
• Installation instructions
• Mounting kit

Technical parameters
Wireless features
Wireless frequency: 5 GHz
WiFi standards: 802.11n, 802.11a, 802.11ac, 802.11b/g
MU-MIMO: Yes
Transmission speed - 5GHz [Mb/s]: 866
Tx power 5GHz [dBm]: 30
Security: WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
5GHz MIMO: 2 x 2
Type of antenna: Built-in
Internal antennas: 2
Antenna gain [dBi]: 7

Connectors and Interfaces
LAN speed: 3 10/100/1000Mbps
Gigabit LAN: Yes

Power
Power over Ethernet: Yes
PoE type: PoE-In (only)
Max. power consumption [W]: 11.5
Power via connector/terminal: 12V DC

Physical characteristics
Purpose: Outdoor
Buttons: Reset
Operating temperature [°C]: -40 up to 70
Width [mm]: 224
Height [mm]: 60
Depth [mm]: 79

Software
Operating mode: Access Point, Bridge
Default IP address: Dynamic from DHCP
Default login and password: admin / admin.
