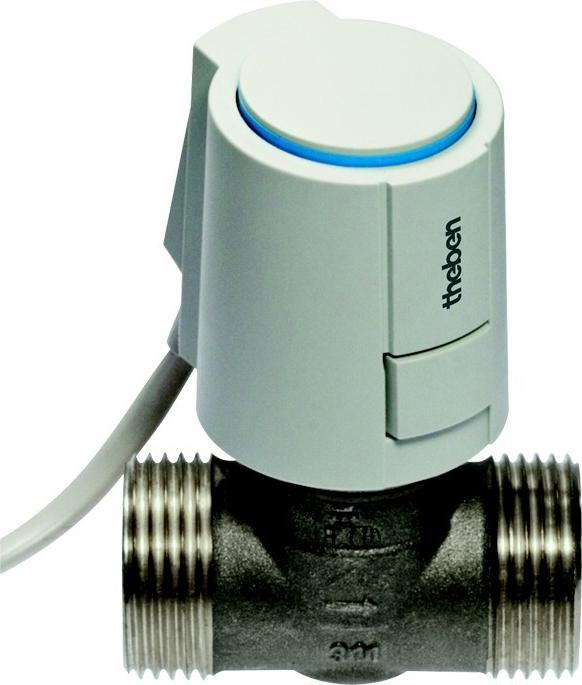

Theben Stellantrieb ALPHA 5 230 V

Theben Actuator ALPHA 5 230 V Manufacturer: Theben Designation: Actuator Type: ALPHA 5 230 V Suitable for valves: yes Suitable for ventilation valves: no Mains voltage: 230 V AC Control signal: Two-point version: linear Control type on/off: yes Control type modulating: no Control type split-range: no Length of connection cable: 1 m Transmission: hydraulic Connection to valve: without With head flange Direct mount to ISO 5211: no With zero-voltage return: no Voltage-free when closed: yes Automatic stroke detection: no Adjustable status signalling: no Auxiliary contacts: no Status signalling: without Auxiliary contacts optional: no End contacts: without Adjustable working range: no With mechanical level indicator: yes Suitable for manual operation: no Running time: 180 s Potential-free switching contact: no Adjustment force: 100 N Stroke length: 4 mm Self-adjustable stroke length: no Max. Angle of rotation: 360 ° With safety function: no Protection class (NEMA): 13 Protection class (IP): IP54 Max. electrical power consumption: 1 VA Ambient temperature: 0...60 °C Height: 44 mm Width: 60 mm Depth: 61 mm Explosion-proof: no Housing material: plasticTheben ALPHA 5 230 V actuator: Further detailsActuating drive (230 V) suitable for heating circuit manifold/radiator valves and RAMSES devices, noiseless, normally closed, length of connection cable 1 m, protection class IP 54, plug-in mounting on valve adapter, function and adjustment control, dismantling protection thanks to removable SafeGuard, guaranteed overvoltage protection , EAN: 4003468901038
