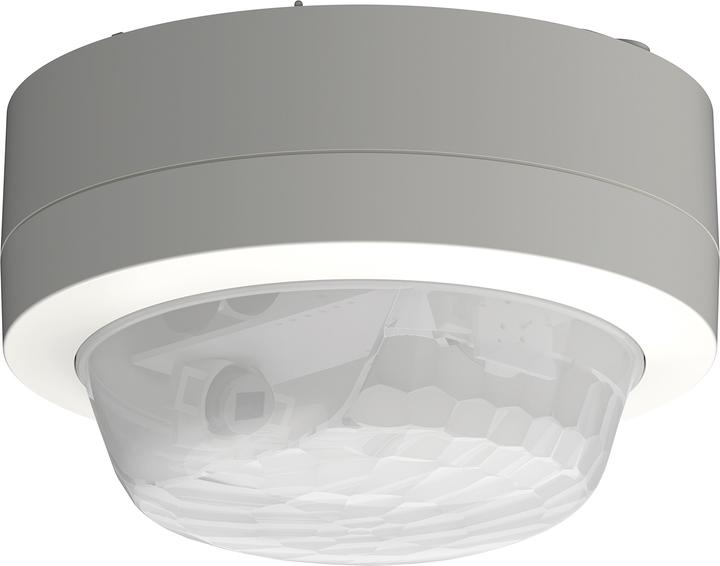

Theben Korridormelder (PIR) AP-Deckenmontage

The Theben corridor sensor (PIR) is a highly advanced motion detector specifically designed for surface-mounted installation indoors. With a rectangular detection area of 360° and a range of 25 x 3 m (75 m²) at a mounting height of 2.5 m, this device offers a reliable solution for automatic lighting control. The sensor responds to both movement and light conditions, enabling energy-efficient use of lighting. The mixed light measurement ensures that the lighting is activated only when necessary, further optimizing energy consumption. The factory preset allows for immediate readiness for operation, while the brightness switching values and time delays can be individually adjusted via potentiometers. This makes the corridor sensor a flexible and user-friendly solution for various indoor applications.

• Rectangular detection area of 360° with a range of 25 x 3 m (75 m²)
• Automatic control based on movement and brightness
• Mixed light measurement for energy-efficient lighting
• Adjustable brightness switching values and time delays via potentiometers
• Ready for immediate use due to factory preset.
