Teltonika WLAN Antenna QuSpot AX10S Outdoor Housing for RUTX10

QuSpot for Teltonika RUTX10

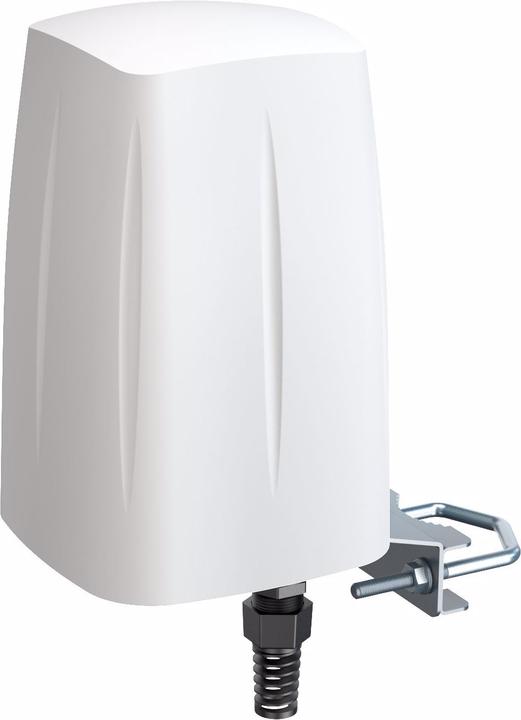

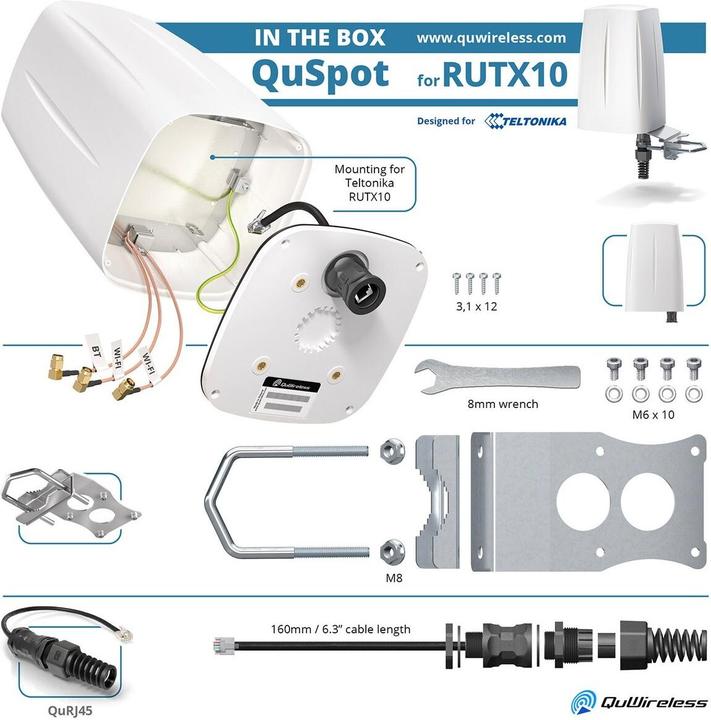

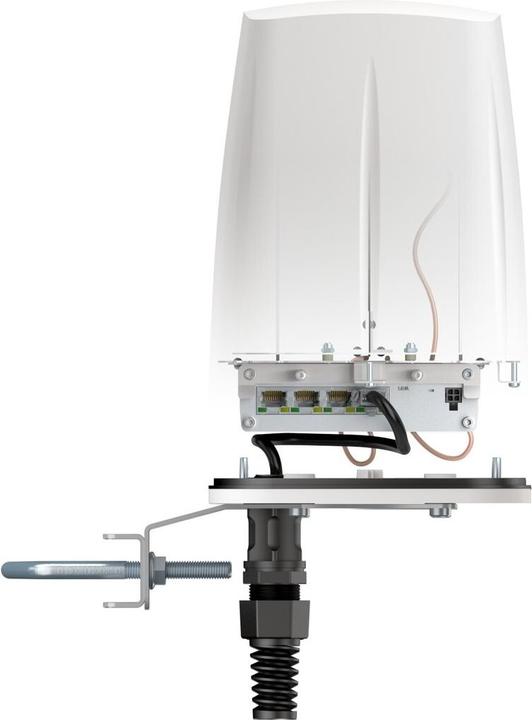

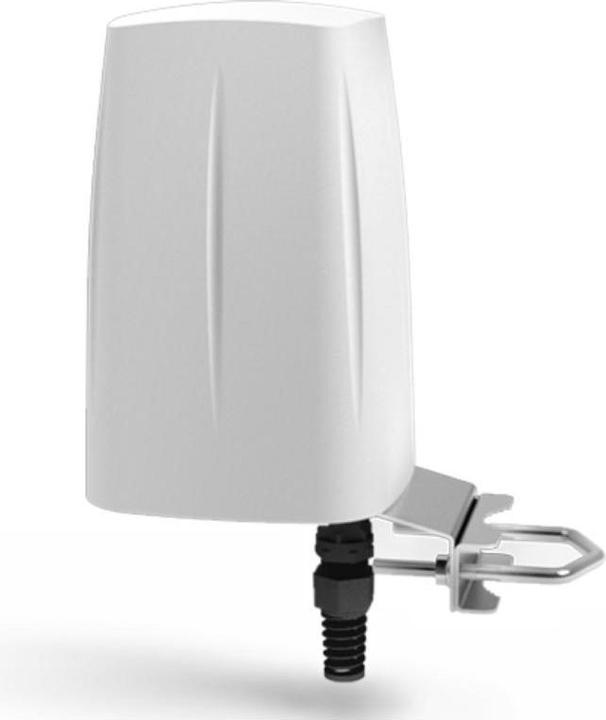

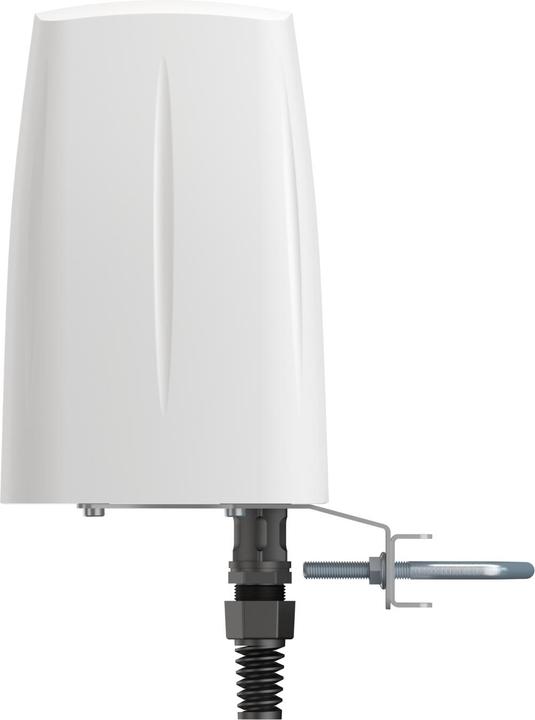

Integrated 2.4 and 5 GHz outdoor Wi-Fi dual-band omni antenna and Bluetooth omni antenna for the Teltonika RUTX10 (All-in-One). The QuSpot Wi-Fi antenna for the Teltonika RUTX10 router is a perfect outdoor device for mobile and fixed installations such as industrial applications, video surveillance, hotspots, yachts, boats, and RVs. It features an embedded Wi-Fi dual-band 2.4 and 5 GHz omni antenna as well as a Bluetooth omni antenna. When using the RUTX10 with the QuSpot antenna, you receive a complete solution with an integrated router and multiband antennas in one housing.

LTE Specification
Frequency: 2.4 - 2.50 GHz
Gain: 6 dBi
VSWR:
Beamwidth: 360°/35° +/-5°
Polarization: Vertical
Impedance: 50 Ohm

Wi-Fi Specification
Frequency: 2.40-2.50 GHz and 4.70-6.00 GHz
Gain: 6 dBi and 7 dBi
VSWR:
Beamwidth: 360°/25° +/-5°
Polarization: Vertical
Impedance: 50 Ohm.
