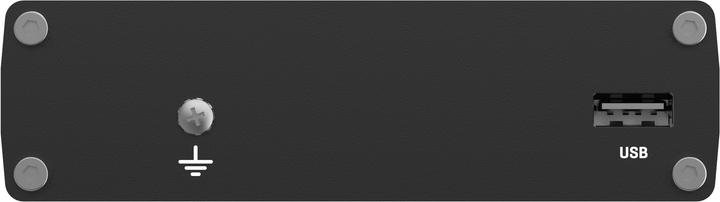

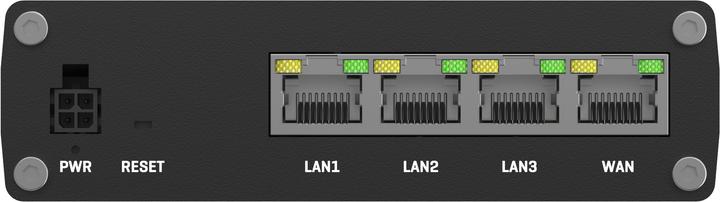

Teltonika RUTM08

The RUTM08 is a wired industrial router designed to establish reliable wired connections across a variety of industrial applications. The router features four Gigabit RJ45 ports that enable fast network and data transmission between connected endpoints. The RUTM08 supports up to 128 tag/port-based VLANs for enhanced network flexibility, as well as multiple VPNs and M2M communication protocols that are particularly important in industrial environments.

Ethernet:

• WAN: 1 x WAN port 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports Auto MDI/MDIX crossover
• LAN: 3 x LAN ports, 10/100/1000 Mbps, compliant with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports Auto MDI/MDIX crossover

Network:

• Routing: Static routing, dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based routing
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On LAN
• VoIP passthrough support: H.323 and SIP ALG protocol NAT helper for proper routing of VoIP packets
• Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall: Port forwarding, traffic rules, custom rules
• Firewall status page: Displays all firewall statistics, rules, and rule counters
• Port management: View device ports, enable and disable individual ports, enable or disable auto-configuration, change transmission speed, etc.
• Network topology: Visual representation of your network showing which devices are connected to which others
• DHCP: Static and dynamic IP assignment, DHCP relay, DHCP server configuration, status, static leases.
