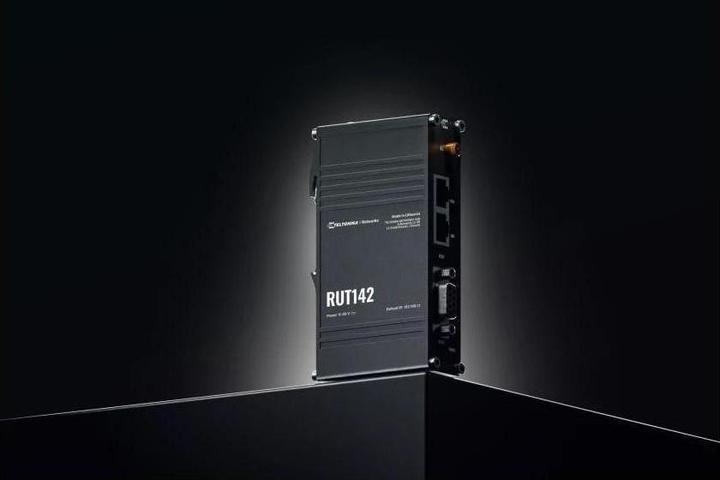

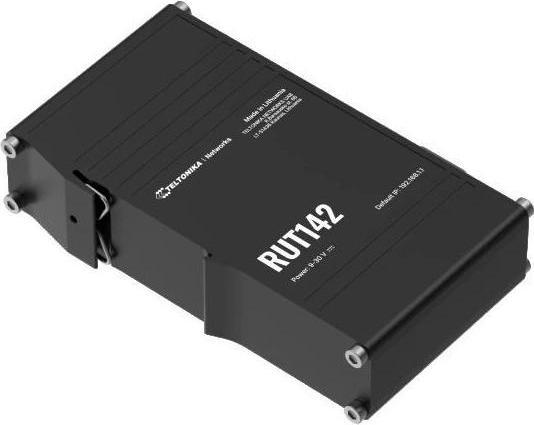

Teltonika RUT142000000 - RS232 INDUSTRIAL ROUTER

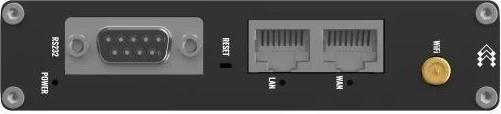

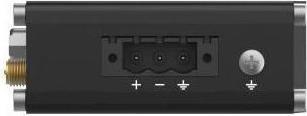

The RUT142 is a compact industrial Ethernet router that increases safety by providing network isolation for end devices. Equipped with a serial RS232 interface, two Ethernet ports, a DIN mounting rail, and a 3-pin industrial connector, it offers seamless connectivity and easy installation. The router features RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is RMS-compatible for efficient remote and on-site management.

Specification

Wireless

• Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
• Wi-Fi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK; AES-CCMP, TKIP, auto-cipher modes, client separation
• SSID/ESSID: ESSID stealth mode
• Wi-Fi users: Up to 50 simultaneous connections
• Wireless connectivity features: Wireless Mesh (802.11s), Fast Roaming (802.11r), Relayd, BSS Transition Management (802.11v), Radio Resource Metering (802.11k)
• Wireless MAC Filter: Whitelist, Blacklist
• Wireless QR Code Generator: Once scanned, a user is automatically let into your network without having to enter any credentials.

Ethernet

• WAN: 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports Auto-MDI/MDIX crossover
• LAN: 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports Auto-MDI/MDIX crossover

Network

• Routing: Static routing, dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based routing
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
• VoIP passthrough support: H.323- and SIP-alg protocol NAT helpers that enable the correct routing of VoIP packets
• Connection monitoring: Ping reboot, Wget reboot, periodic reboot, LCP and ICMP for link inspection
• Firewall: Port forwarding, traffic rules, user-defined rules.
